Alternatively, the pump can be suspended with a lifting chain just above the sump
bottom. Make sure that the pump cannot rotate at start-up or during operation.
5. Connect the motor cable and the starter and monitoring equipment according to the
separate instructions.
Make sure that the impeller rotation is correct. For more information, see Check the
impeller rotation (page 36).
4.1.3 Install with T/Z-installation
This installation is not applicable for these versions:
• .172
• .891
In the T-installation, the pump is installed in a vertical position in a dry well next to the wet
sump. These requirements and instructions only apply when the installation is made
according to the dimensional drawing.
In the Z-installation, the pump is installed in a horizontal position on a support stand in a
dry well next to the wet sump. The following requirements and instructions are for Z-
installations that comply to the dimensional drawing.
WS008385A

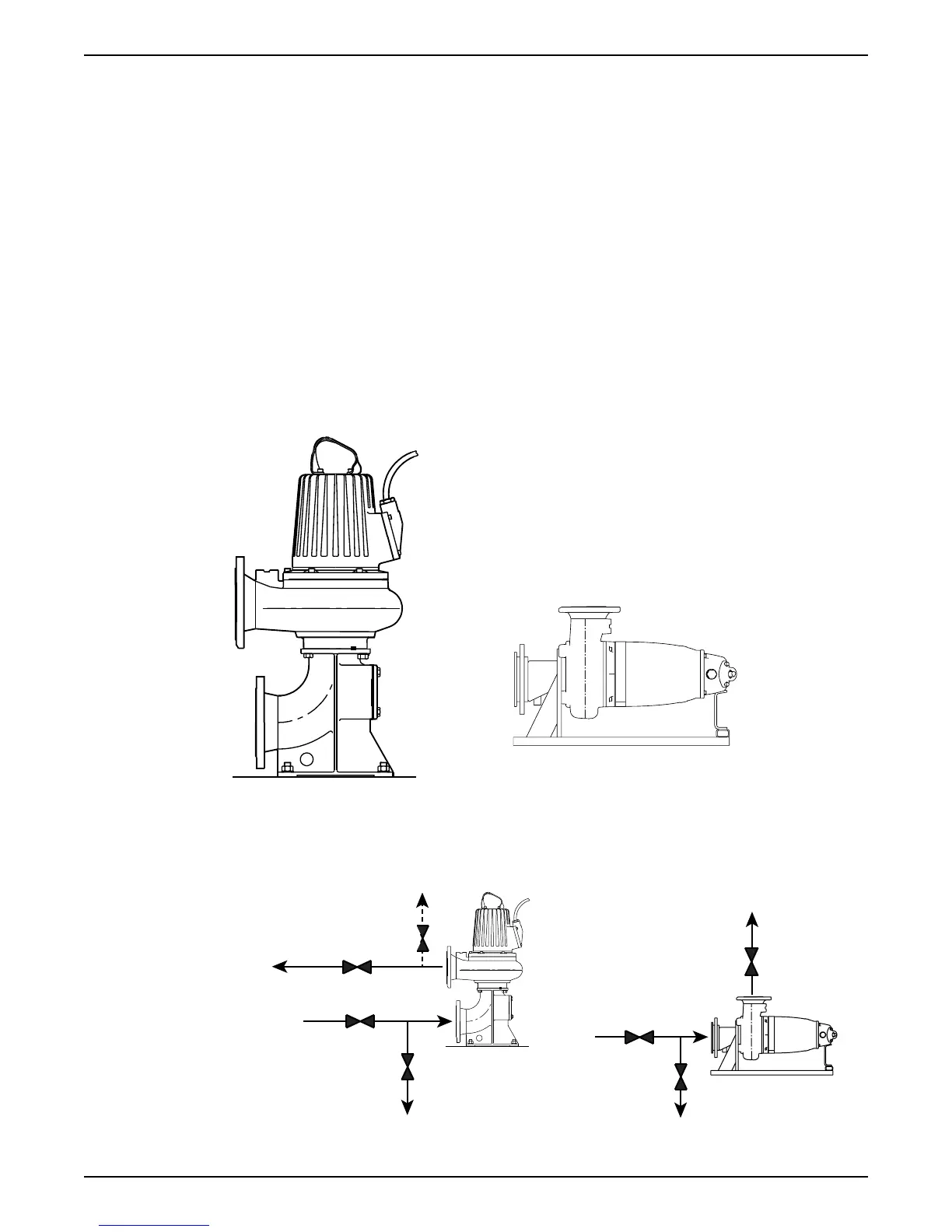

Figure 4: T-installation
WS006273A
Figure 5: Z-installation
These items are required:
• Anchor bolts for anchoring the pump to a base.
• Shut-off valves that allow you to remove the pump from service
1
WS008403B
2
3
1
2
3
4
