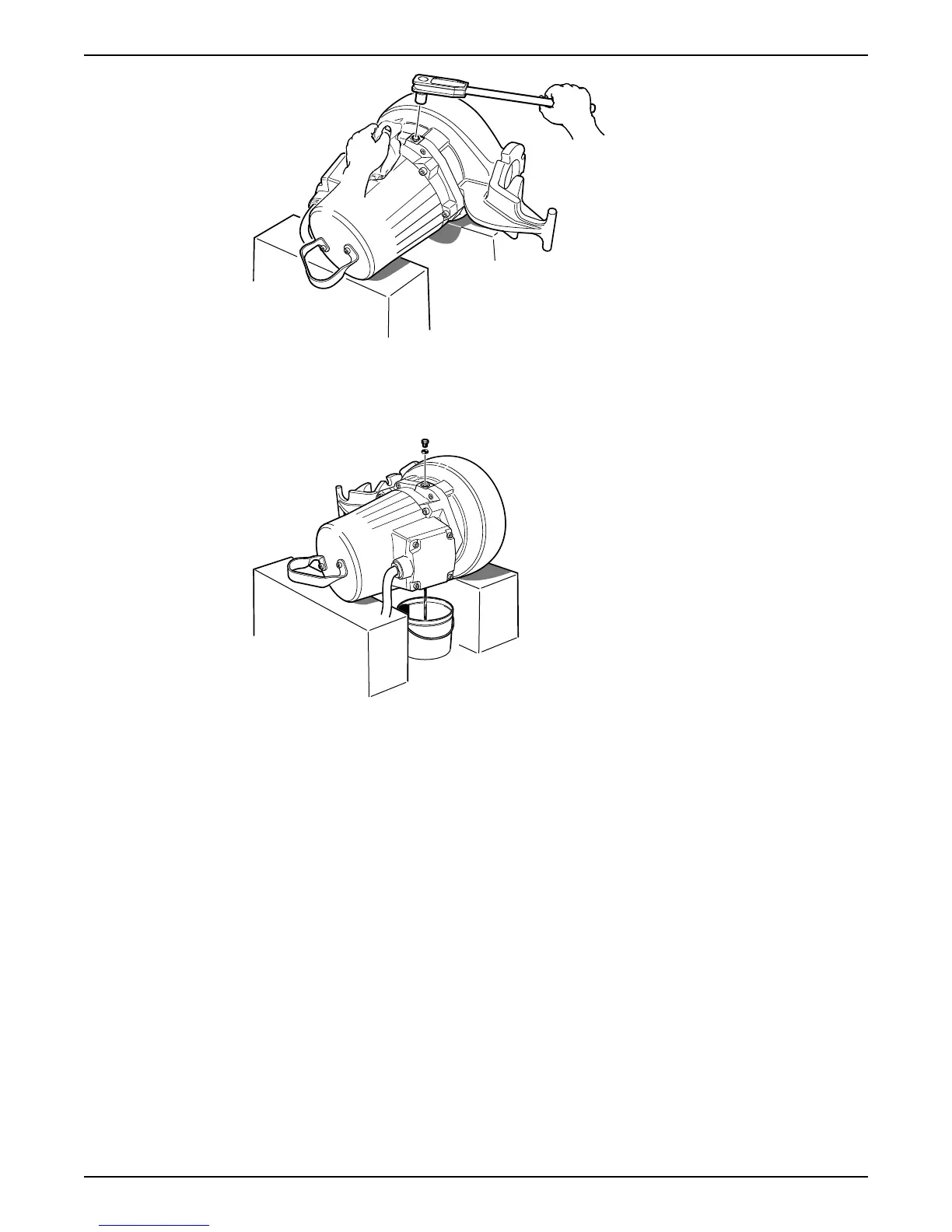

2. Place a container under the pump and turn the pump.
3. Unscrew the other oil plug.
If this hole has the markings "oil in", raise the pump upright for a short period of time
during drainage in order to drain all the oil.
Fill with oil
The oil should be a medical white oil of paraffin type that fulfills FDA 172.878 (a) and
viscosity close to VG32. Examples of suitable oil types are the following:
• Statoil MedicWay 32
™
• BP Enerpar M 004
™
• Shell Ondina 927
™
• Shell Ondina X430
™
1. Replace the O-rings of the oil plugs.
2. Refit an oil plug in the hole that faces downwards or is marked "oil out", and tighten.
Tightening torque: 10-40 Nm (7.5-29.5 ft-lb)
3. Fill with oil through the hole on the opposite side or the hole marked "oil in".
If the hole is marked "oil in", slightly tilt the pump and lower it again in order to fill the
pump with the correct quantity.
Quantity: approximately 1.0 L (1.1 qt).
6 Maintenance
42 Flygt 3085 Installation, Operation, and Maintenance Manual
