FlySky VK-R4A - Receiver Component Overview

Digital Proportional Radio Control System
4

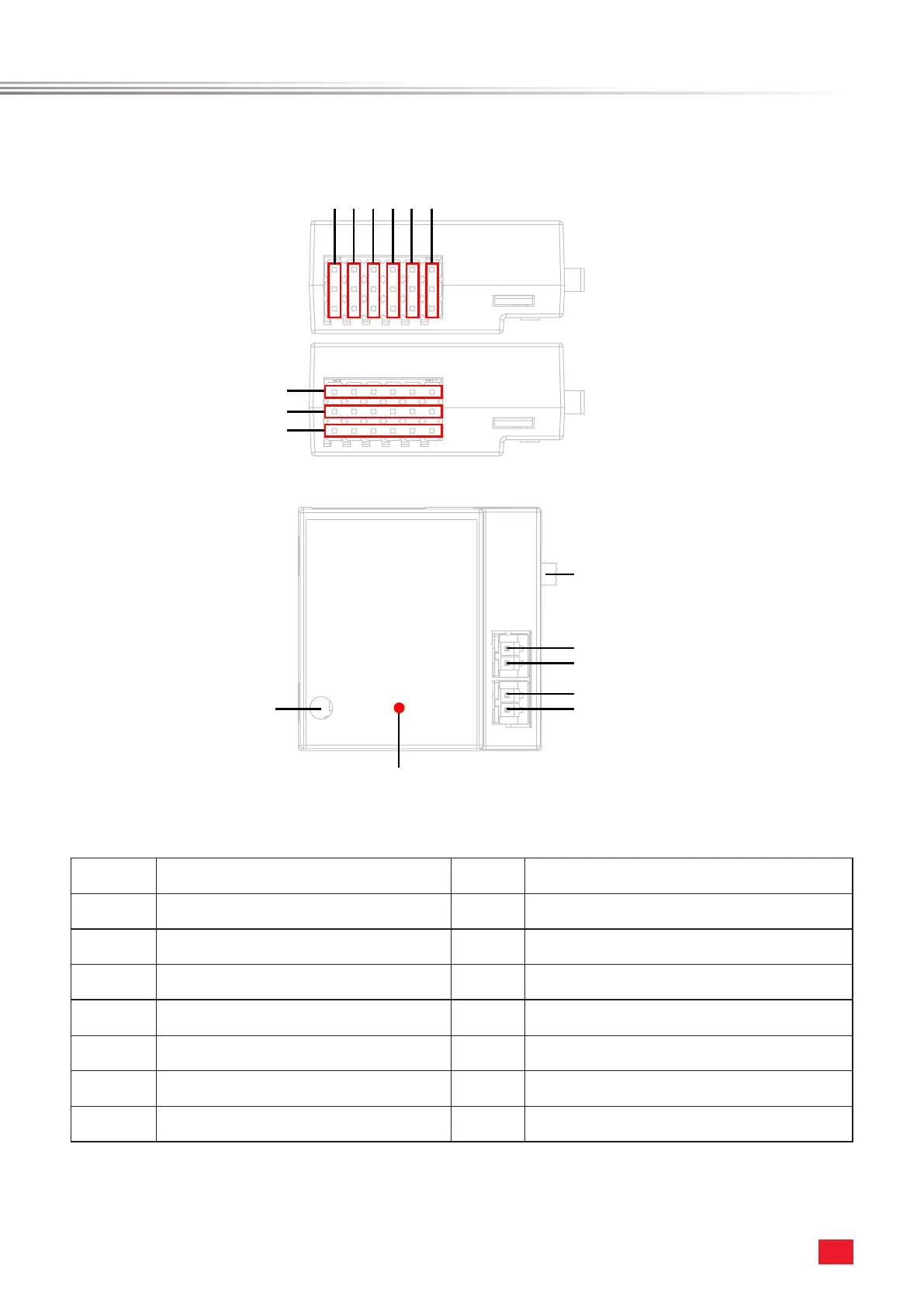

2.2 Receiver Overview
[1] CH1 [9] Signal end
[2] CH3 [10] Antenna
[3] CH4 [11] LED
[4] Headlight interface [12] Motor interface "M-"
[5]
Left turn signal light interface
[13] Motor interface "M+"
[6] Right turn signal light interface [14] Battery cable interface"-"
[7] Power cathode [15] Battery cable interface"+"
[8] Power anode [16] Power switch
[16]
[15]
[14]
[13]
[12]
[10]
[11]
[7]
[8]
[9]
[1] [2] [3] [4] [5] [6]
