124387-01D 21

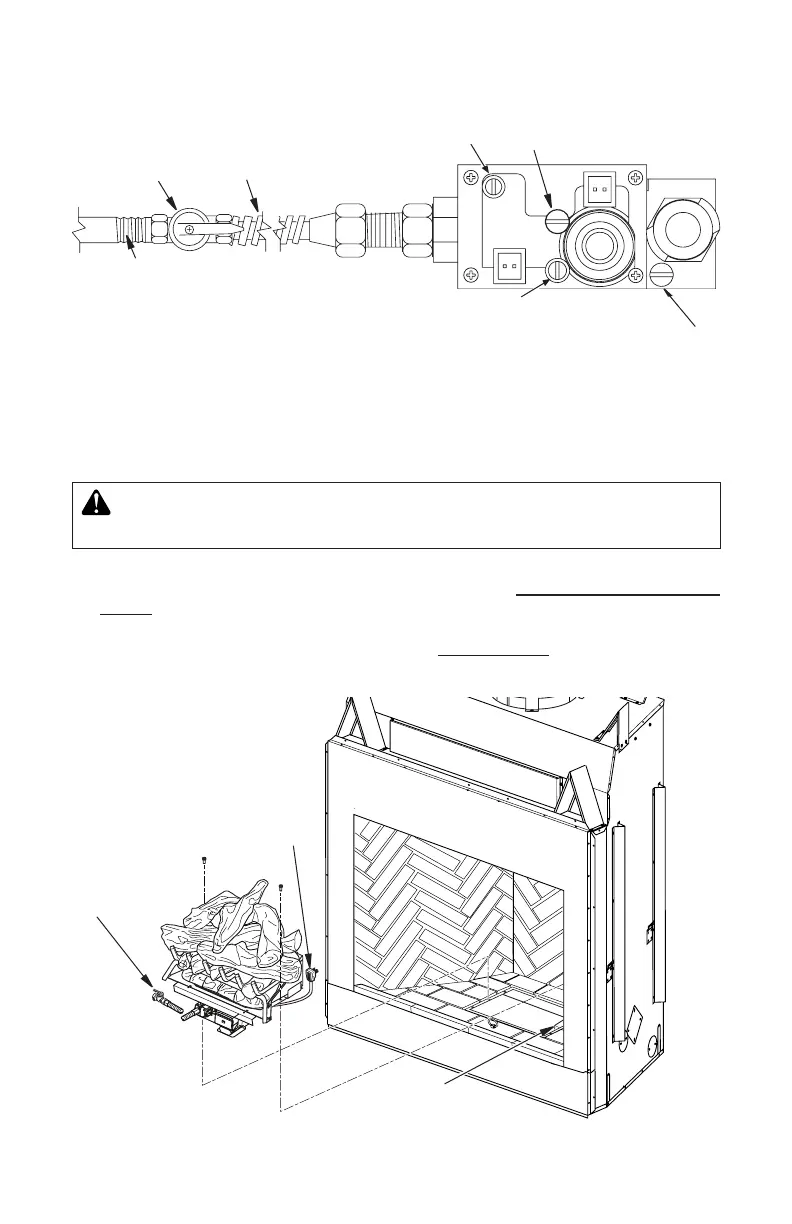

Figure 31 - Connecting Incoming Gas Line to Flex Gas Line
Note:
1) Wire connections not shown for clarity
2) * 1/8" NPT Plugged Tapping
MAIN
IN
OUT
PILOTADJ
PILOT
Pilot Adjustment
Inlet Pressure Tap
Outlet Pressure Tap
Gas Shutoff
Valve
Flexible
Gas Line
Do NOT
Kink
1/2" NPT
Incoming
Gas Line
Set Screw
Figure 32 - Installing Module into Firebox
J-Box
Plug
Shutoff
Valve
INSTALLING LOG/BURNER MODULE
Before installing module, make sure all batteries have been installed into the receiver and
battery backup.
CAUTION:Glovesshouldbewornwheninstallingmoduleinto
replace.Metaledgesmaybesharp.
1. Plug module into J-Box on the right side of rebox oor (see Figure 32).
2. Connect shutoff valve of module to incoming gas line (see Connecting Fireplace to Gas
Supply, page 20).
3. Connect wires from limit switch (located underneath the rebox oor) to orange wire in
the wire harness of the module as shown in the Wiring Diagram, page 35).
4. Carefully place module into hearth in rebox. Be careful not to chip or break logs.
INSTALLATION
Continued
