FMI BVC-36YA - Specifications; Wiring Diagram

www.fmiproducts.com
124387-01D 35

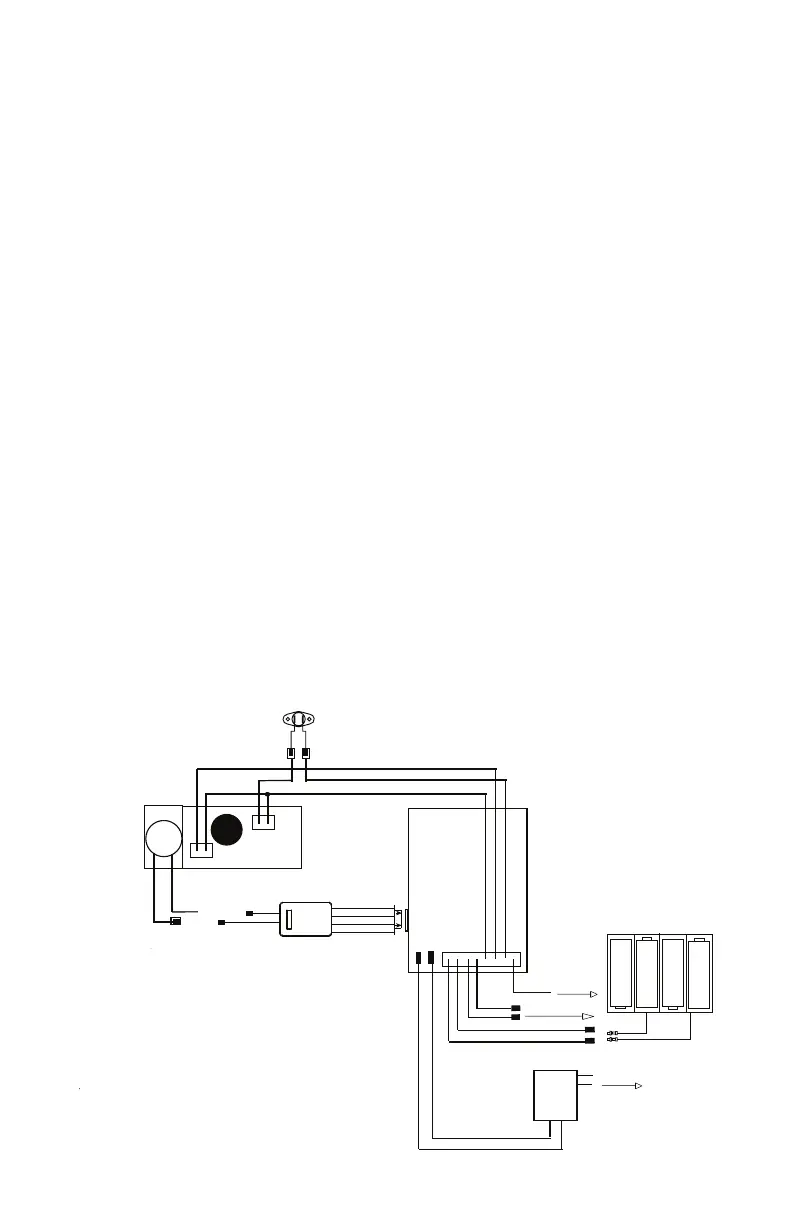

WIRING DIAGRAM
AUX
Green
Orange
White
Valve
Black
Red
Control
Module
Black
Brown
Brown
Red
Black
AC
Power
Adapter
To Rocker Switch
To J-Box
Pilot
Main
HI/LO DC
Motor Drive
Power
Module
Black
Brown
Red
Orange
Black
Red
To Ground
BATTERY PACK
Red
Black
SIZE
"AA"
SIZE
"AA"
SIZE
"AA"
SIZE
"AA"
LIMIT SWITCH
SPECIFICATIONS
BBM-36N-JHB
• Rating: 53,000/32,000 Btu/hr
• Gas Type: Natural Gas Only
• Ignition: Electronic
• Manifold Pressure: 3.5" w.c.
• Minimum Inlet Supply Pressure: 4.5" w.c.
• Maximum Inlet Supply Pressure: 10.5" w.c.
• Orice: #25
BBM-42N-JHB
• Rating: 62,000/37,000 Btu/hr
• Gas Type: Natural Gas Only
• Ignition: Electronic
• Manifold Pressure: 3.5" w.c.
• Minimum Inlet Supply Pressure: 4.5" w.c.
• Maximum Inlet Supply Pressure: 10.5" w.c.
• Orice: #19
BBM-50N-JHB
• Rating: 66,000/38,000 Btu/hr
• Gas Type: Natural Gas Only
• Ignition: Electronic
• Manifold Pressure: 3.5" w.c.
• Minimum Inlet Supply Pressure: 4.5" w.c.
• Maximum Inlet Supply Pressure: 10.5" w.c.
• Orice: #16
BBM-36P-JHB
• Rating: 52,000/39,000 Btu/hr
• Gas Type: Propane/LP Only
• Ignition: Electronic
• Manifold Pressure: 10" w.c.
• Minimum Inlet Supply Pressure: 11" w.c.
• Maximum Inlet Supply Pressure: 13" w.c.
• Orice: #44
BBM-42P-JHB
• Rating: 59,000/43,000 Btu/hr
• Gas Type: Propane/LP Only
• Ignition: Electronic
• Manifold Pressure: 10" w.c.
• Minimum Inlet Supply Pressure: 11" w.c.
• Maximum Inlet Supply Pressure: 13" w.c.
• Orice: #43
BBM-50P-JHB
• Rating: 63,000/46,000 Btu/hr
• Gas Type: Propane/LP Only
• Ignition: Electronic
• Manifold Pressure: 10" w.c.
• Minimum Inlet Supply Pressure: 11" w.c.
• Maximum Inlet Supply Pressure: 13" w.c.
• Orice: #42)
