Model assembly
EN
2.Align and connect the rudder servo plugs to the servo
extensions located within the fuselage. Carefully insert
the vertical stabilizer to the vertical stabilizer slot of the
fuselage and Secure it in place using the included
screws (HKM3.0*10mm x 3) .
1.Align and connect the elevator servo plugs and LED
plugs to the servo extensions located within the
fuselage. Carefully insert the horizontal stabilizer to the
horizontal stabilizer slot of the fuselage and secure
using the included screws (HKM3.0*10mm x 1) .

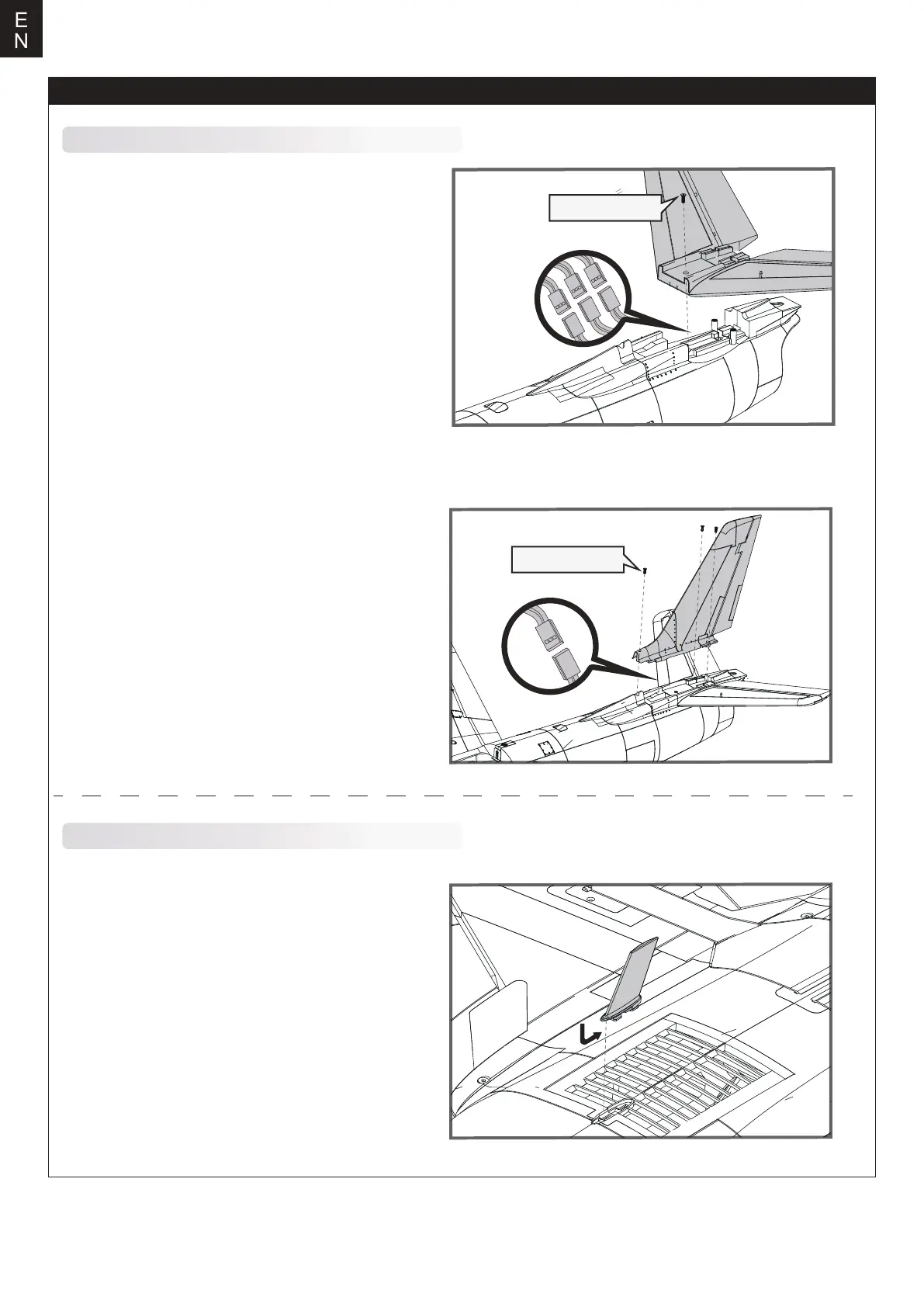

Vertical tail and horizontal tail installation
Non-functional scale parts installation
1.Insert the non-functional scale antennas into the
corresponding slot at the bottom of fuselage as shown,
and slide it toward the tail to lock in place.
HKM3.0*10mm
HKM3.0*10mm
