Model assembly
EN

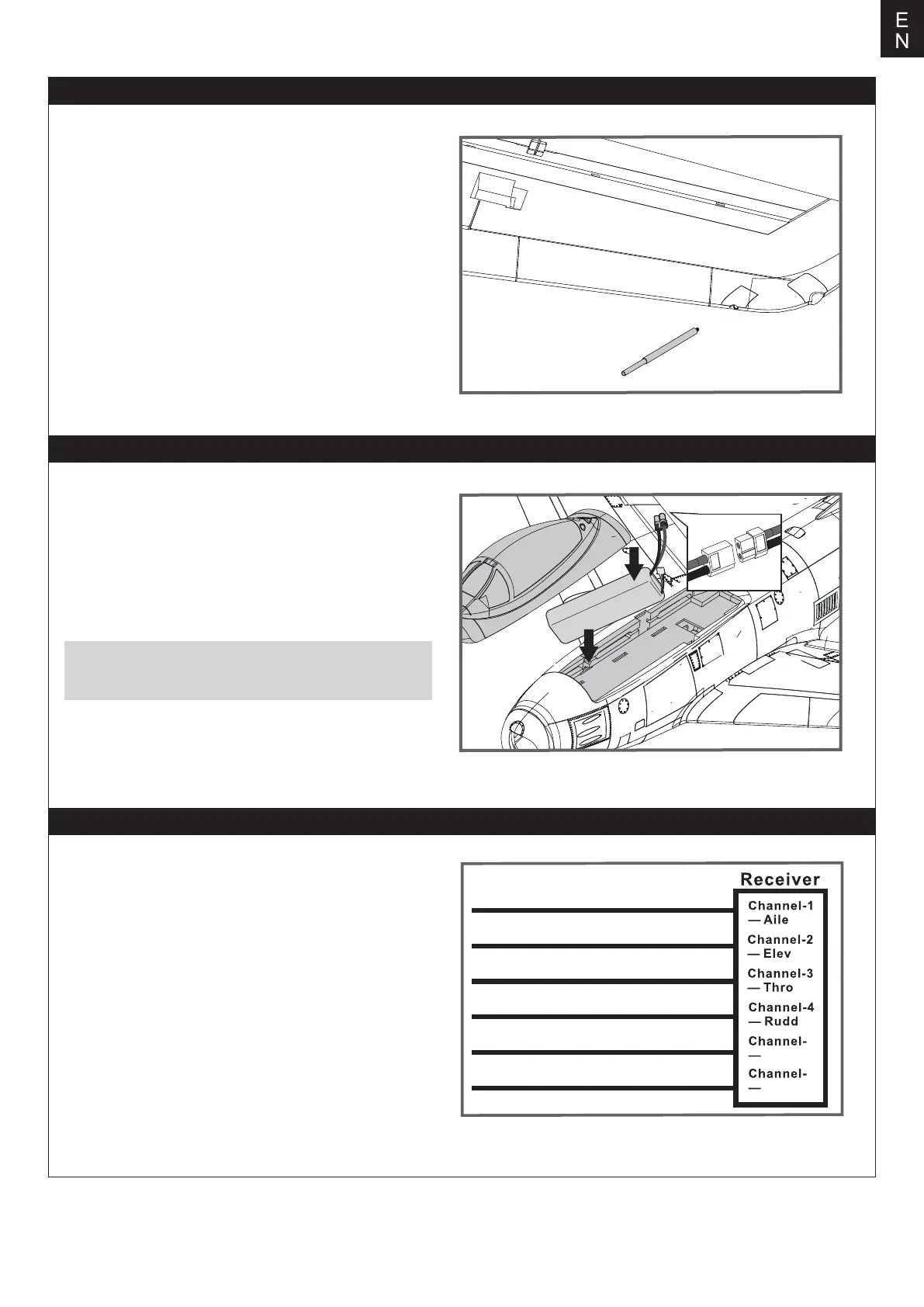

2.Insert the non-functional scale airspeed head into the
wingtip slot.
Receiver diagram
Gear
5
Spare
6
6
5
4
3
2
1
1.Pull back on the latch and remove the battery hatch.
2.Apply the hook tape to the cable end of the battery.
3.Slide the full charged battery into the battery compart-
ment wtith the power supply cable toward the rear end of
the plane.
Battery compartment size:200*68*45mm
The cables from the servo connector board should be con-
nected to your receiver in the order shown. Note that the
LEDs can be powered by any spare channel on the receiv-
er. Tuck the wire leads into the recessed cavity towards
the rear of the battery hatch.
Note: The center of gravity can be adjusted by moving
the battery forward or aft. Having the correct center of
gravity is critical to achieving proper flight characteristics.
Battery installation
Gear
Spare
Throttle
Rudder
Gear
EIevator
