No purpose provided ventilation is normally required for this appliance. The requirements of other appliances operating in the
same room or space must be taken into consideration when assessing ventilation. If spillage is detected when commissioning the appli-
ance, then amongst other problems there may be insufficient natural ventilation for correct operation of the flue. If the appliance does
not spill with the windows open, but spillage is detected with the windows closed, this demonstrates a lack of natural ventilation. If
spillage is still detected with the windows open, the flue is at fault. Installation of an air brick is the best solution to lack of ventilation.
Any ventilation fitted must comply with BS 5871 part 2 and BS 5440 part 2. Vents fitted under or within the immediate vicinity of the
appliance must not be used as adverse effects to the operation of the ODS may occur. Spillage detected during commissioning is almost
always a result of poor flue performance that cannot be corrected by any amount of ventilation. For Republic of Ireland ventilation may
be required, see IS 813, ICP3, IS 327, and any other rules in force.
This appliance can be fitted into a number of proprietary flue boxes
provided that the minimum dimensions shown in figure 2 are complied
with.
Constructional Note: The frame of the fire, any back panel or other
infill panels, and the flue box must be sealed together so that there is
no possibility of leakage between them. Adequate clearances to com-
bustible materials (e.g. false chimney breast construction) must be
maintained.
The manufacturers’ instructions for fitting the prefabricated
box shall be complied with at all times. To fit the fire using the
cable fixing kit, some minor adaption may be necessary for certain flue
boxes. A check should be made to ensure the firebox does not
obscure the flue box outlet. The firebox, base of the flue box, and
hearth below may be drilled to allow plugs and screws to secure
installation. It is important that the sealing requirements of the appli-
ance are met at all times and that the flue box is well sealed to any
back or infill panel. Note: The DEPTH dimension is inclusive of any
back or infill panel.
Stand the carton the right way up, cut the strapping bands and remove the top endcap. Read all the instructions before continuing to unpack
or install this appliance.
Remove the box containing the firefront, and the bags containing the ceramic components. Remove the cardboard packing pieces, and any other
bags or boxes containing fittings or other parts. When all loose parts have been removed, the outer sleeve may be lifted off to reveal the appli-
ance. Check that the components supplied correlate with the component checklist given in section 7.1. Please dispose of all the packaging mate-
rials at your local recycling centre.
5.0 VENTILATION
GB IE
6.0 PREFABRICATED FLUE BOXES
125mm min internal dia twin wall flue
250mm min depth
390mm min opening width
560mm min
height

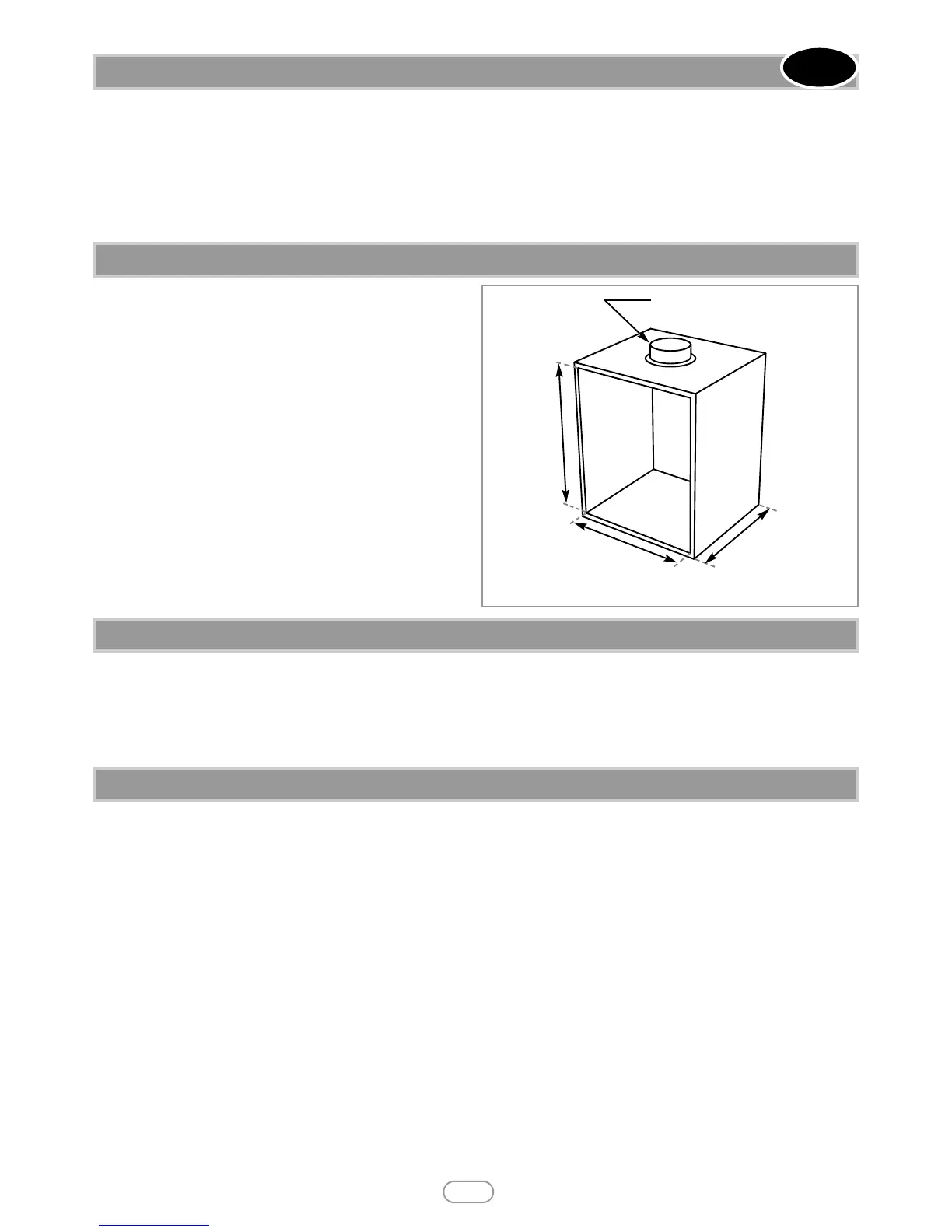

Figure 2
7.0 UNPACKING THE APPLIANCE
7.1 COMPONENT CHECKLIST
QUANTITY DESCRIPTION
1 Firebox and burner tray assembly
1 Decorative cast frame and ashpan (Soho, Finsbury and Arch models)
1 Decorative extruded frame with detachable control cover (Aura models)
1 One piece decorative trim (Alvor models)
1 Three piece decorative trim (Blenheim models)
1 Cast firefront (Alvor and Blenheim models)
1 Moulded ceramic fibre combustion matrix
1 Moulded ceramic front strip
16 Individual ceramic coals (Coal models only)
16 Individual ceramic pebbles (Pebble models only)
1 Slide control knob and M4 Nyloc nut (Slide control models only)
1 Cable fixing kit; 2 cables, 2 tensioners, 2 cable clamps, 4 eyebolts, 4 wall plugs
1 Sealing grommet
1 Battery (‘PP3’) (Slide control models only)
3 Lengths of adhesive sealing strip
1 Self tapping screw pack; 4 No8 x 5/16
1 Set of manufacturers instructions
