ENGLISH
5

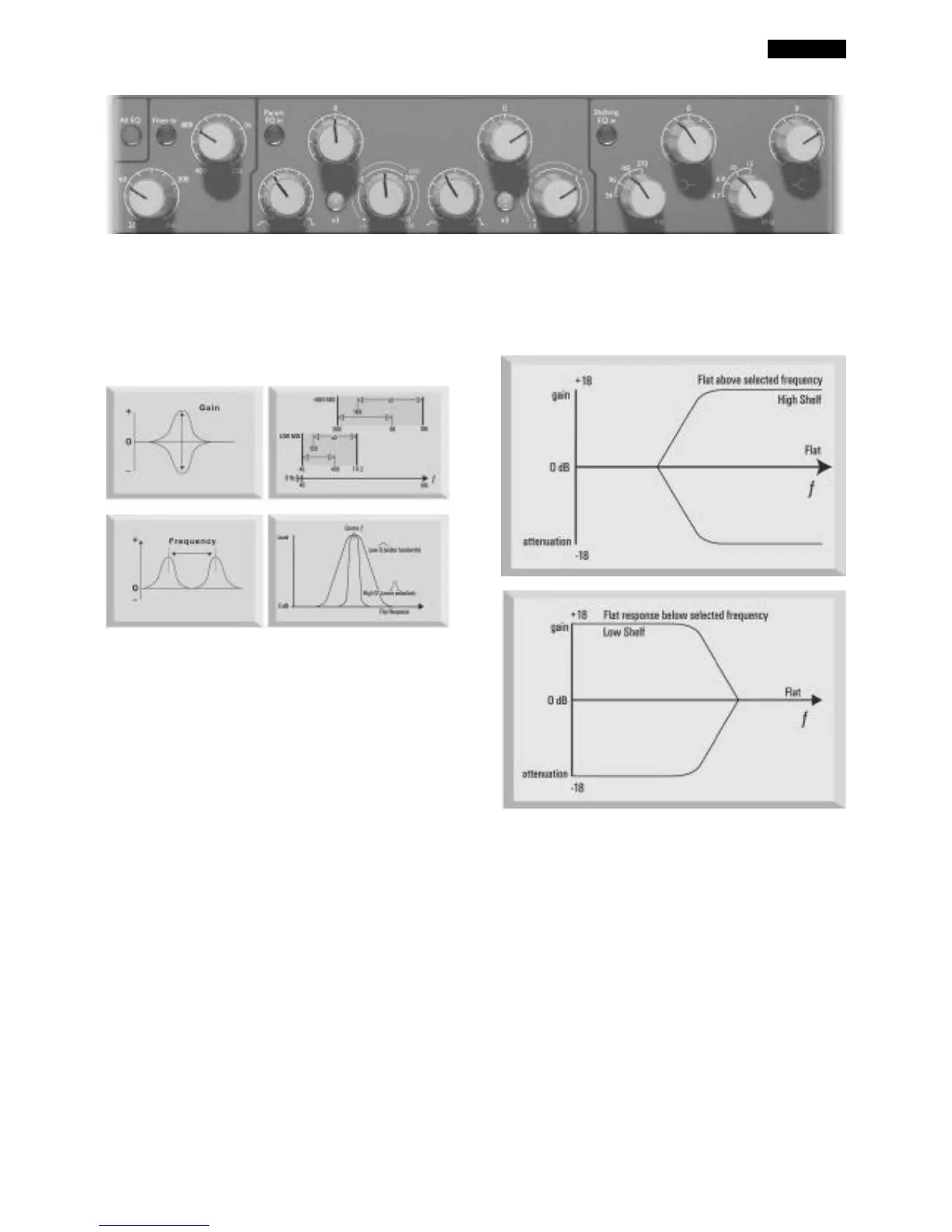

PARAMETRIC EQ
Two separate bands of parametric EQ are provided, each
with continuously variable boost/cut with centre detent,
sweep control with two ranges, and variable Q. The first
band covers the range 40Hz to 400Hz (120Hz to 1k2Hz
when x3 is pressed) and the second band covers 600Hz to
6kHz (1.8kHz to 18kHz when x3 is pressed).
Param EQ In
Press in to switch the Parametric EQ into the signal path.
X3
The Sweep controls have two ranges; the higher being
selected when the x3 switch is pressed (frequencies shown
in yellow on the panel).
SHELVING EQ
High and Low frequency shelving sections are available, each
with continuously variable boost/cut with centre detent, and
a four position rotary switch for selection of rolloff
frequency.
Shelving EQ In
Press in to switch all the Shelving EQ into the signal path.
