ENGLISH
9
Applications
Record Channel

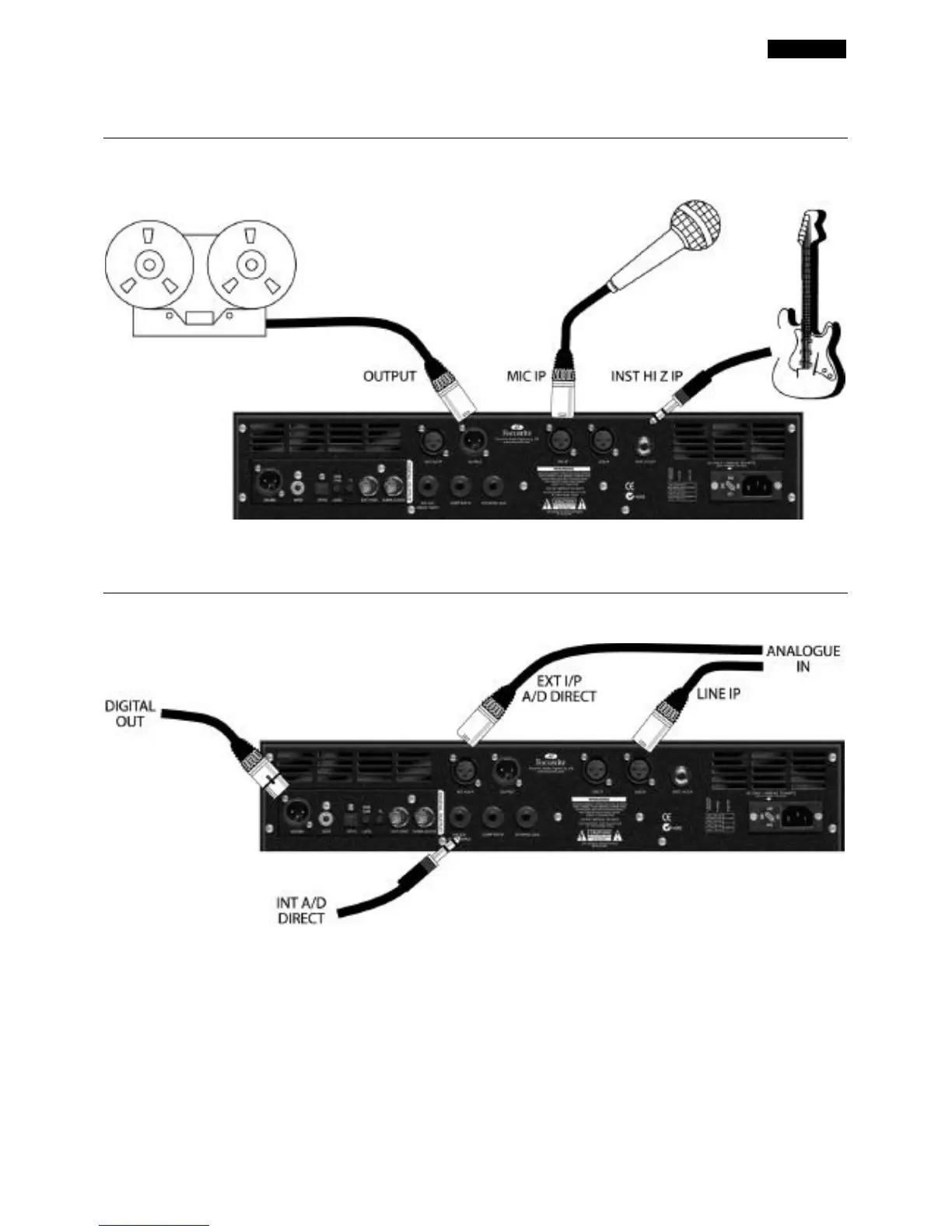

This example shows the ISA 220 being used for mic or guitar recording.
Stereo A/D Converter
The optional A/D card is a stereo device which can convert two channels simultaneously. Stereo or dual mono conversion can be
accessed by connecting the two audio signals to the EXT A/D IP and INT A/D DIRECT inputs (directly accessing the A/D inputs
via the limiter and digital meters). The INT input of the A/D can alternatively be connected in the normal way via the mic, line or
instrument input, if additional mono processing (EQ and Dynamics) is required on the signal, or if dual mono signals are being
processed by a pair of ISA 220s and converted simultaneously.
