Focusrite TrakMaster Pro - SPECIFICATIONS - EQ, COMPRESSOR, AND ADC; Mid Scoop EQ and Compressor Parameters; ADC Performance and Connectivity Specs

13

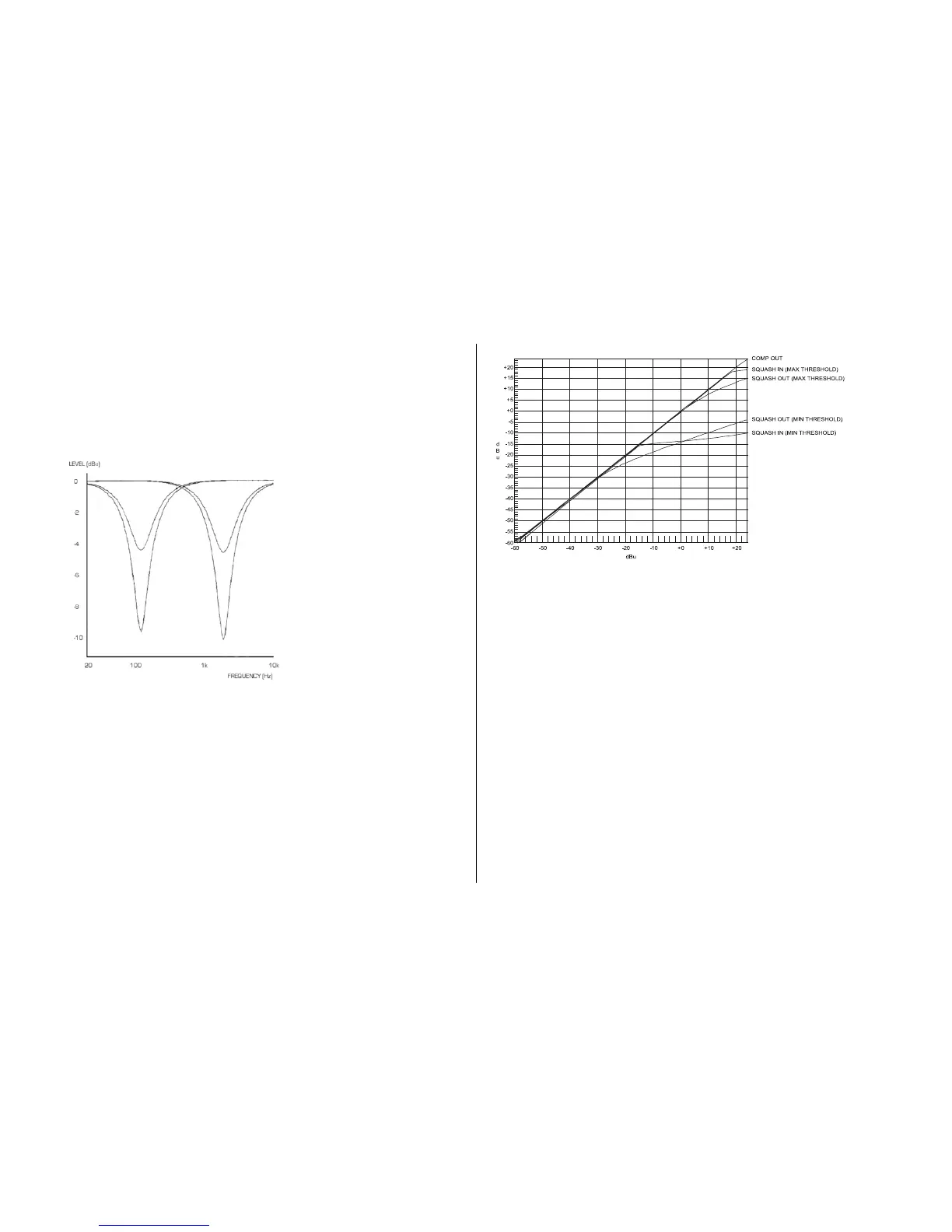

Mid Scoop EQ
EQ shape = peak
Centre frequency = variable between 120Hz and 2kHz
Cut (DEEP switch out) = -5dB
Cut (DEEP switch in) = -10dB
Q (DEEP switch out) = 0.7
Q (DEEP switch in) = 2
Compressor
Threshold range (SQUASH switch out) = -54dBFS (-32dBu) to -18dBFS (+4dBu)
Threshold range (SQUASH switch in) = -37dBFS (-15dBu) to -4dBFS (+18dBu)
Compressor ratio (SQUASH switch out) = 2.5:1
Compressor ratio (SQUASH switch in) = 35:1
Attack and Release preset values dependent on switch settings as follows:
Attack Release
COMP 35ms 126ms
COMP+SLOW ATTACK 120ms 350ms
SQUASH 8ms 1s
Noise = -90dBu measured with a 22Hz/22kHz bandpass filter.
Make-up gain = 0 to +30dB.
ADC Performance
Sample Frequency = 44.1kHz, 48kHz, 88.2kHz & 96kHz
Bit Depth = 24bit
Maximum analogue input level = +22dBu (0dBfs)
Dynamic Range = 109dB 'A' Weighted
EXT WORDCLOCK INPUT
BNC connector
ADC EXT IN
Balanced 1/4” TRS jack socket input (+4dBu)
MONITOR IN
2 x balanced 1/4” TRS jack socket inputs (+4dBu)
MONITOR OUT
2 x balanced 1/4” TRS jack socket outputs (+4dBu)
LINE OUT
Balanced 1/4” TRS jack socket output (+4dBu)
Unbalanced 1/4” TRS jack socket output (-10dBV)
