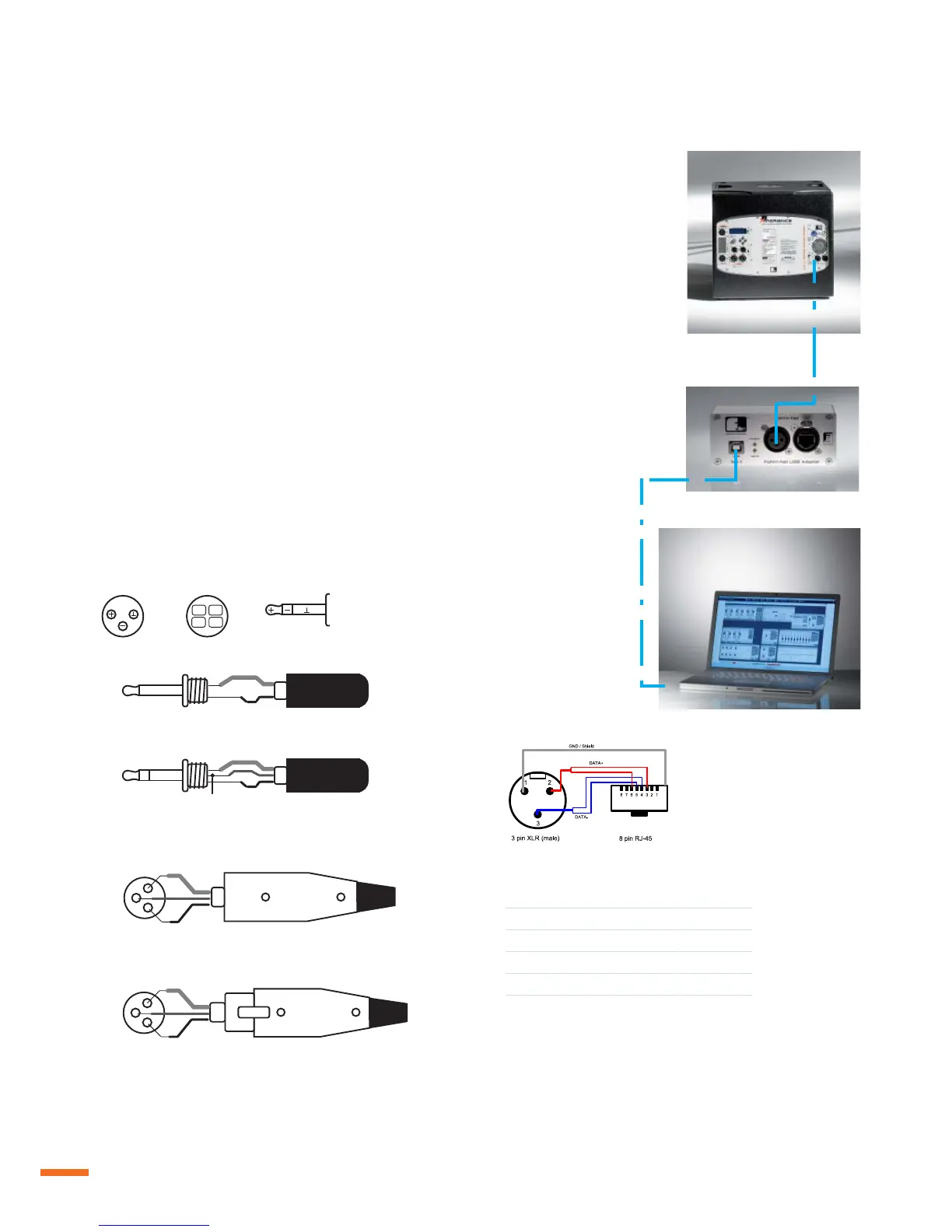

7.2 Cables and plug configurations
When connecting a mixing desk to the X-Sub active, always make
sure the screened cable is intact. Unscreened cables may cause
problems relating to signal or hum interference. When connecting
the satellite speakers to the X-Sub active, please use high-quality
SPEAKON cables. Check the condition of your cables on a regular
basis.
XLR
+1
-1
+2
-2
SRT
Speakon
Jack
21
3
ST
T
S
SRT
T
R
S
XLR Female
2
1
3
XLR Male
2
1
3
7.1 Audio connections
Before connecting the X-Sub active to the mains power supply,
make sure that the mains voltage corresponds to that specified on
the operating panel (tolerance of +/- 10% is permitted). Always
plug in the mains cable before switching on the X-Sub active and
always switch off the X-Sub active before disconnecting it from the
mains power supply.
All other cables should be connected when the X-Sub active is
switched off and the mixing desk should be switched on before
the X-Sub active is switched on. This prevents annoying and often
dangerous switch-on noises.
7. Information on cables and connections
Fohhn Audio Soft - Version 2.x ! necessary!
34 | Linea Live
Type
GND / Shield
DATA+
DATA-
3-pin XLR (male)
Pin 1
Pin 2
Pin 3
8-pin RJ-45
Shield
Pin 3 + Pin 6
Pin 4 + Pin 5
XLR-RJ45 adapter cable
USB cable
