Fohhn Linea Live I User Manual

output
1 X-Subs active
2-4 Tops passive
from mixer
X-Sub
active
to sat-speakers 3+4
ch2
to sat-speakers 1+2
ch1

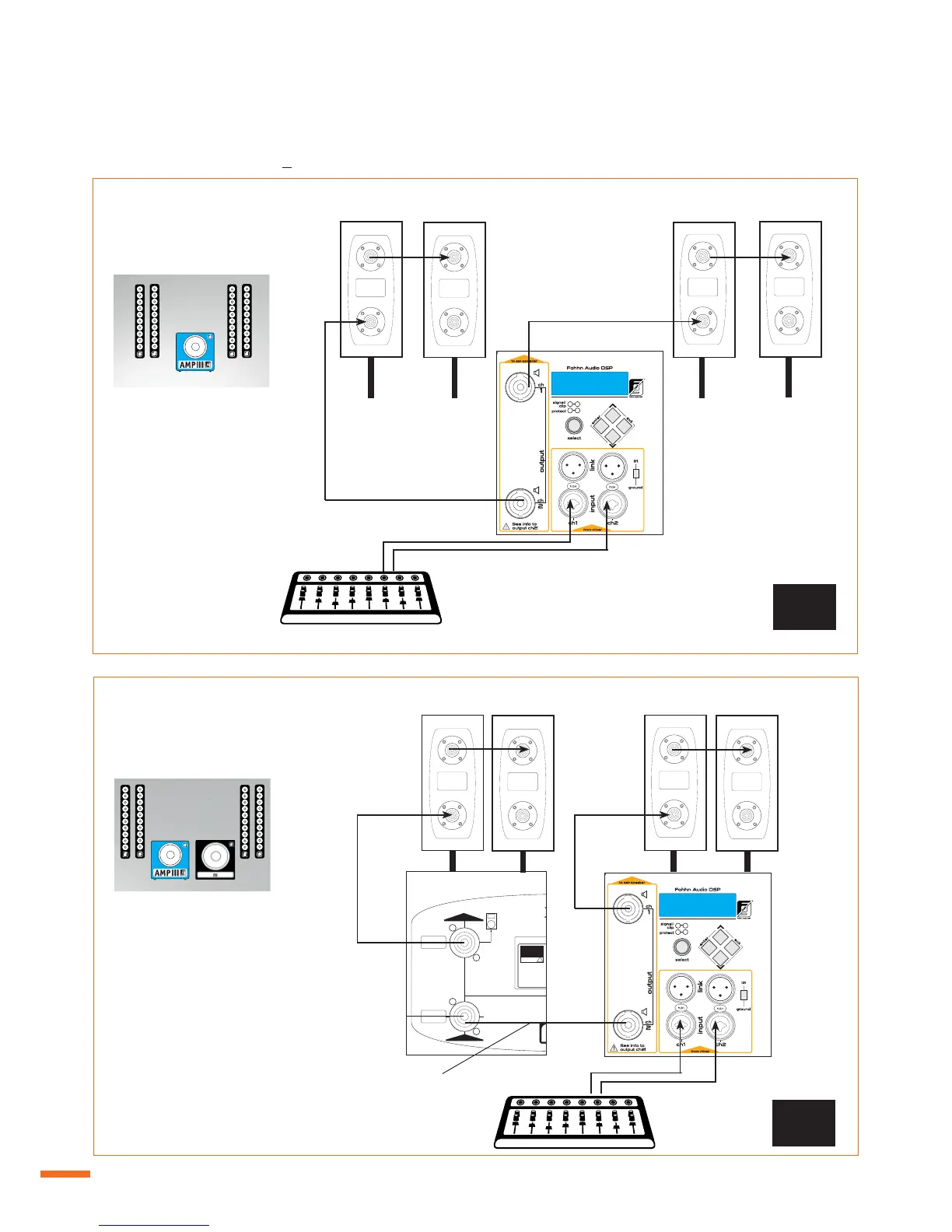

7.3 Systemverkabelung für 3 verschiedene Kombinationen
1. Basis System
Top
Top
Top
Top
1 X-Subs active + 1 XSP-Sub passive
2-4 Tops passive

An Sub XS-4 kann kein
passiver Zusatzsubwoofer
angeschlossen werden.
to sat-speaker
ch2
to sat-speaker
ch1
Top
Top
from
X-Sub
active
Xperience
min.
impedance
4 ohms
Engi
n
made i
speakon: top 1
+
To connect
X-Sub passive
w
X-Sub active o
n
4-core speakon
loudspeaker cab
l
Xperienc
e
use 4-core
cable
X-Sub
passive
(slave)
!
speakon
2+, 2-
speakon
1+, 1-
input
output
from Xperience
to sat-speaker
w
w
X-Sub
passive
X-Sub
active
2. Power System
Top
Top
stereo
mode
XSP-sub
passive
(slave)

nur Sub XS-30
Wird ein passiver XSP-3 an den
XS-30 angeschlossen, muss der
Slave Sub Modus "On" am Display
oder über die Software jeweils
im Preset Menue aktiviert werden
(siehe Seite 13)
from mixer
to X-Sub passive
ch1
16 | Linea Live
