No Bridge mode operation with XS-10 and XS-20 possible!
2 X-Subs active
2 Tops passive

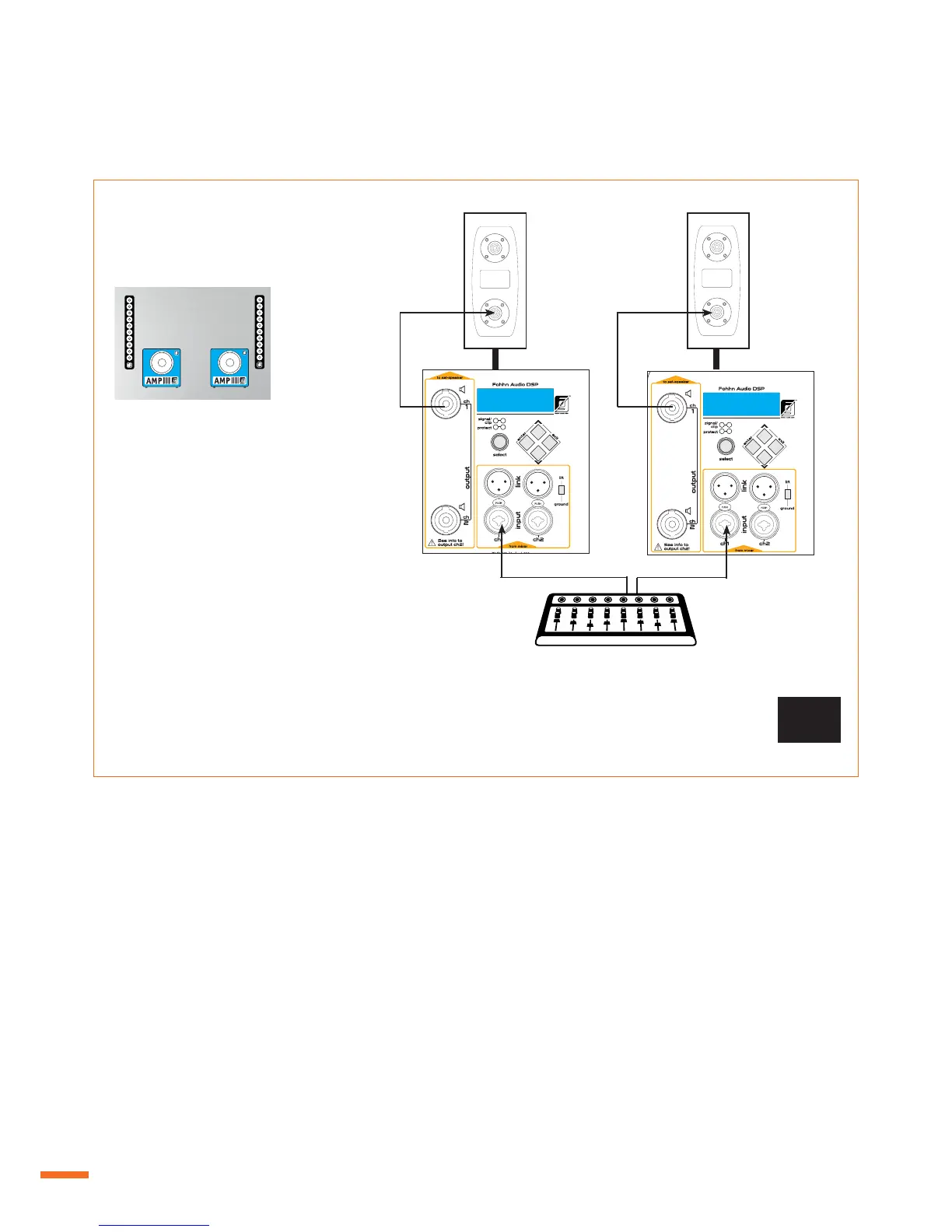

Bridge mode:
In Bridge mode operation
with 2 X-Subs active connect
each Top to output jack (4).
Please remember that only 1 Top can be
connected to each Sub XS-4 in bridge mode.
If an operational error occurs, the amplifier
switches to Protect (protect LEDs for ch1 (13)
and / or ch2 (12) light up red).
Bridge mode will be activated when setting the
speaker presets "X-Top power" e.g. "XT-33power
or XT-5power" automaticaly.
(XS-30 and XS-4, not XS-20)
Bridge
mode
to sat-speaker
ch2
to sat-speaker
ch1
Top (min. 8Ω)
Top (min. 8Ω)
X-Sub
active
X-Sub
active
3. High-Power System
Bridge mode XS-30 and XS-4
speaker presets "X-Top power" e.g. "XT-33power or XT-5power" automaticaly.
(XS-30 and XS-4, not XS-10 an XS-20).
Special feature XS-30
If a passive XSP-3 is connected to the XS-30, Slave Sub mode must be activated (on the
display or using the software in the "Preset window").
Internal bridge mode on the XS-30 then switches to 2-way operation to power the con-
nected XSP-3. (see page 32)
If no passive XSP-3 is connected Slave Sub mode must be deactivated so that the inter-
nal subwoofer of the XS-3 works in bridge mode.
36 | Linea Live
from mixer
