C SERIES USER’S MANUAL
28
6.4.8 Repeat Function

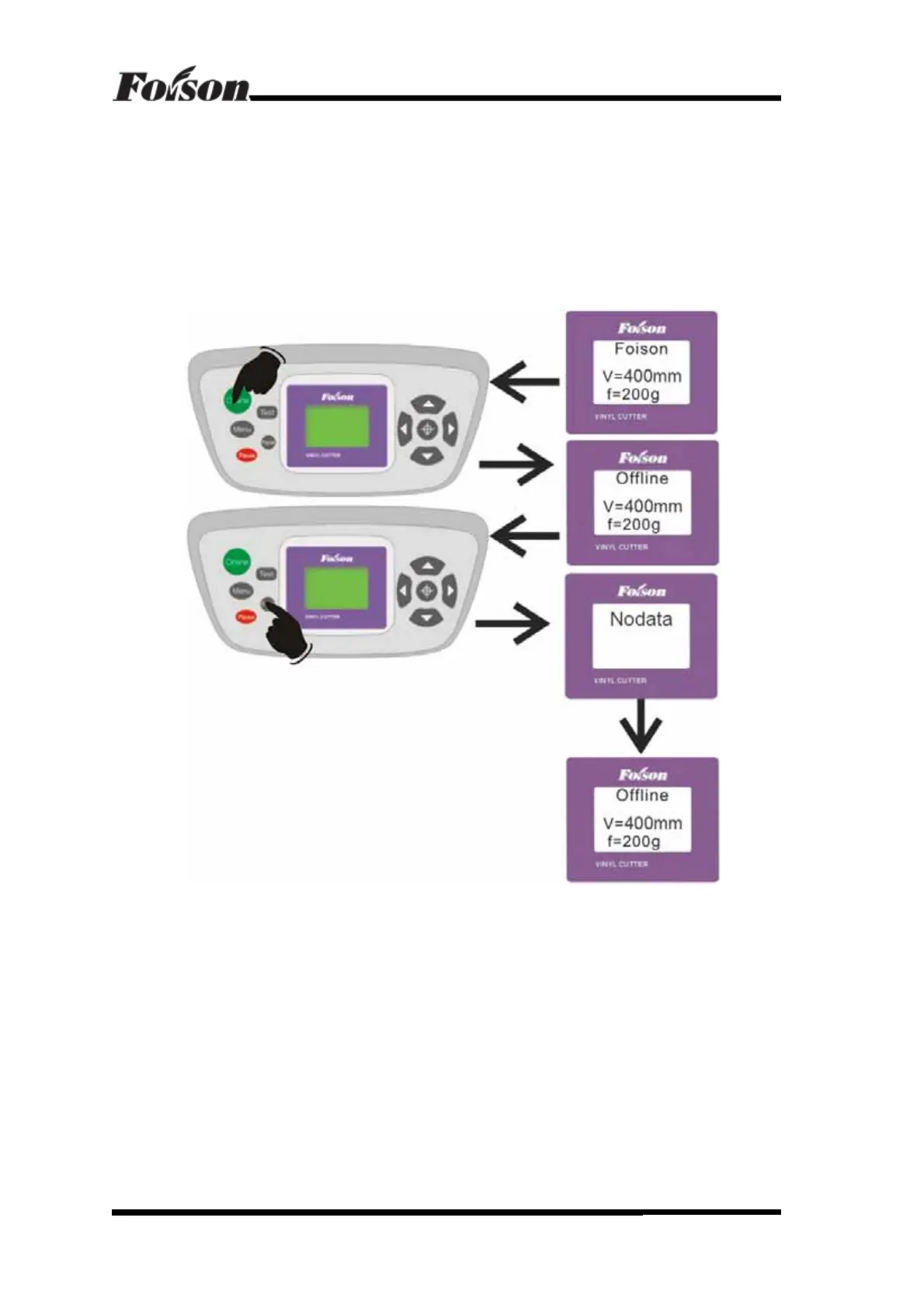

Each time after finish working, switch the cutter into offline status and press Repeat. The cutter
will repeat the job done last time.
Hints: The main board load in flash memory, so it can not repeat the last job after the cutter
switch on again. What’s more, the flash memory is limited, the data shall not larger then the
buffer memory. If the data is too large, it can not repeat the job as well. The LCD will display
Nodata. Shown as followings:
6.4.9 Port Setting
Press Menu and enter into menu setting, UV refers to idle speed, it can increase the carriage
moving speed while it will not cutting. Press once the idle speed will increase/decrease by
50mm/s. Bv refers to baud rate, there’re six baud rates: 57600, 38400, 28800, 19200, 14400 and
9600. The baud rate setting must be the same as computer’s communication port in use baud
rate’s setting. We recommend the baud rate is 38400. Shown as followings:
