18 Horizon 1650R/N Ice Machines

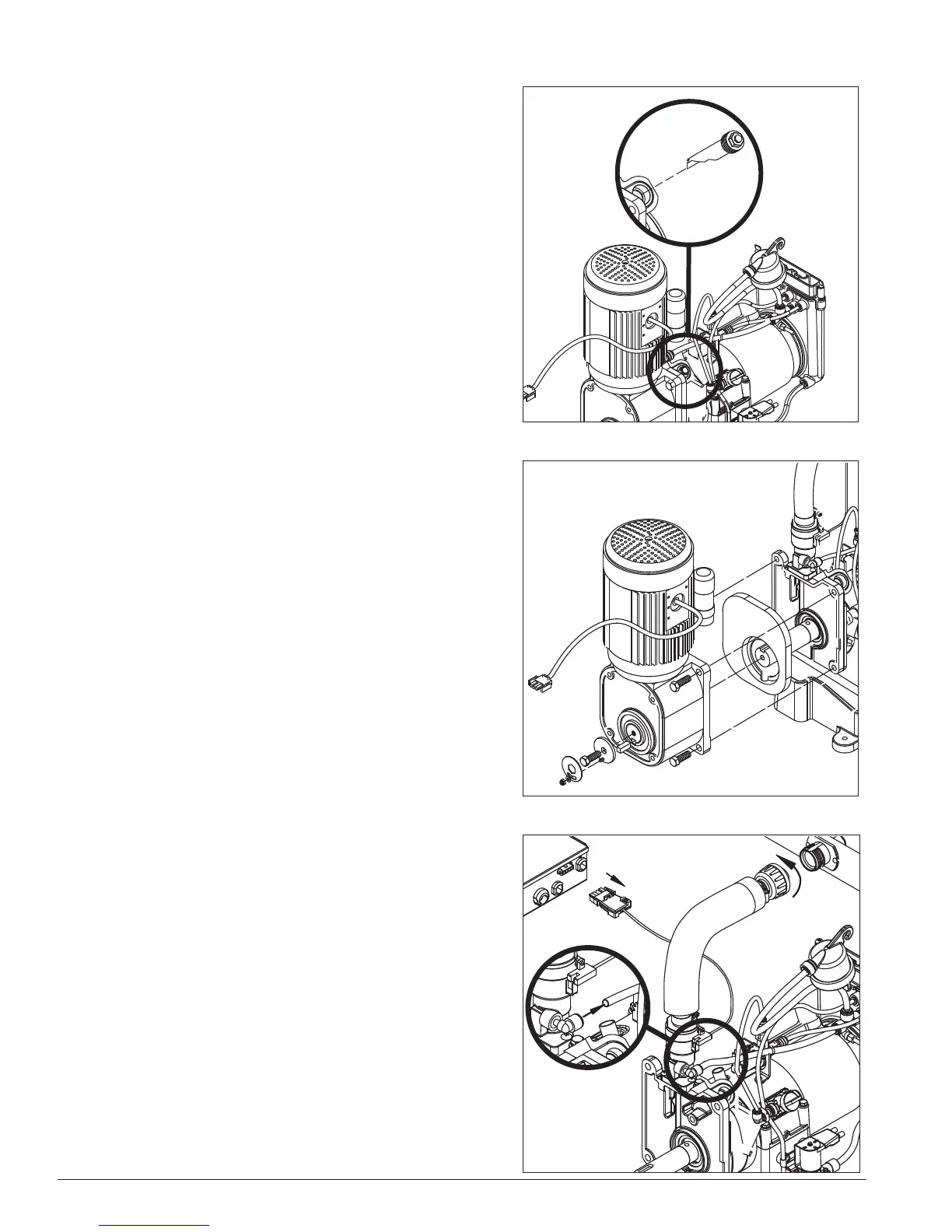

Fig. 13
Mechanical system
Evaporator disassembly
1. Press PURGE button to purge evaporator, and then turn
power OFF.
2. Unscrew and remove stream divider as shown.
Fig. 14
3. Unplug and remove gearmotor as shown.
4. Remove all traces of petrol-gel from the auger shaft.
Fig. 15
5. Unscrew and disconnect transport tube from louvered
docking assembly.
6. Unplug sensor at the electrical box.
7. Remove vent tube from shuttle housing as shown.
To Next Page
