Horizon 1650R/N Ice Machines 19

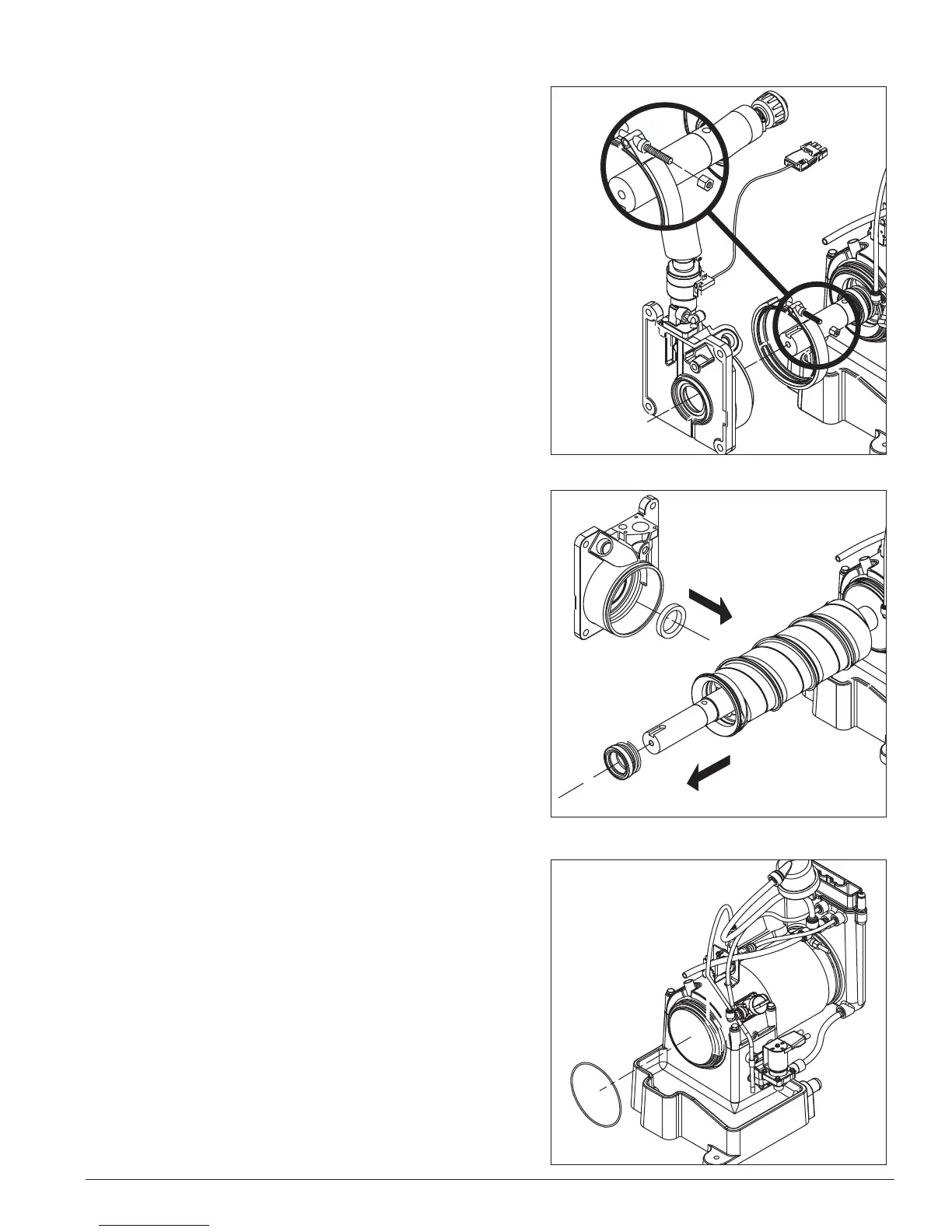

Fig. 16
8. Unscrew and disconnect transport tube from louvered
docking assembly.
9. Unplug sensor at the electrical box.
10. Remove vent tube from shuttle housing as shown.
Fig. 17
11. Remove and discard mating ring and seal.
12. Carefully remove auger.
Fig. 18
Evaporator reassembly
1. Remove and inspect O ring seal. Discard if damaged in
any way.
2. Clean O ring groove. Lubricate O ring with petrol-gel and
reinstall.
