38 Horizon 1650R/N Ice Machines
17
4
1
4
2
8
6
3
7
18
9
10
11
15
14
12
13
5
19
20
5
16
11
6
7
18
16
13
12
15
10
14
17
Reference # Description Part #
1 Shroud 00155937
2 Condenser 00977488
3 Head pressure control valve 00977496
4 Condenser fan motor 00173070
5 Condenser fan guard 00123067
6 Receiver 00110627
7 Receiver service valve 00173047
8 Service valve, suction line 00977504
9 Service valve, discharge line 00175935
10 Filter drier, liquid 00175869
11 Compressor (includes start and run capacitors, relay, suction and liquid drier) 00969071
12 Shut-off valve, suction line 00107078
13 Shut-off valve, liquid line 00107060
14 Crankcase heater 00977512
15 Sight glass 00175885
16 Condenser fan blade 00173088
17 Filter drier, suction 00991075
18 Heat exchanger 00977520
19 Contactor 00155952
20 Low pressure switch 00173104
Not shown Check valve 00175893
Not shown Starting relay 00110585
Not shown Gasket, receiver service valve 00175901
Not shown Baffle, shroud 00173096
Not shown Run capacitor 00977462
Not shown Starting capacitor 00977470
Not shown High pressure switch 00173112
Not shown Fan cycling switch 00173120

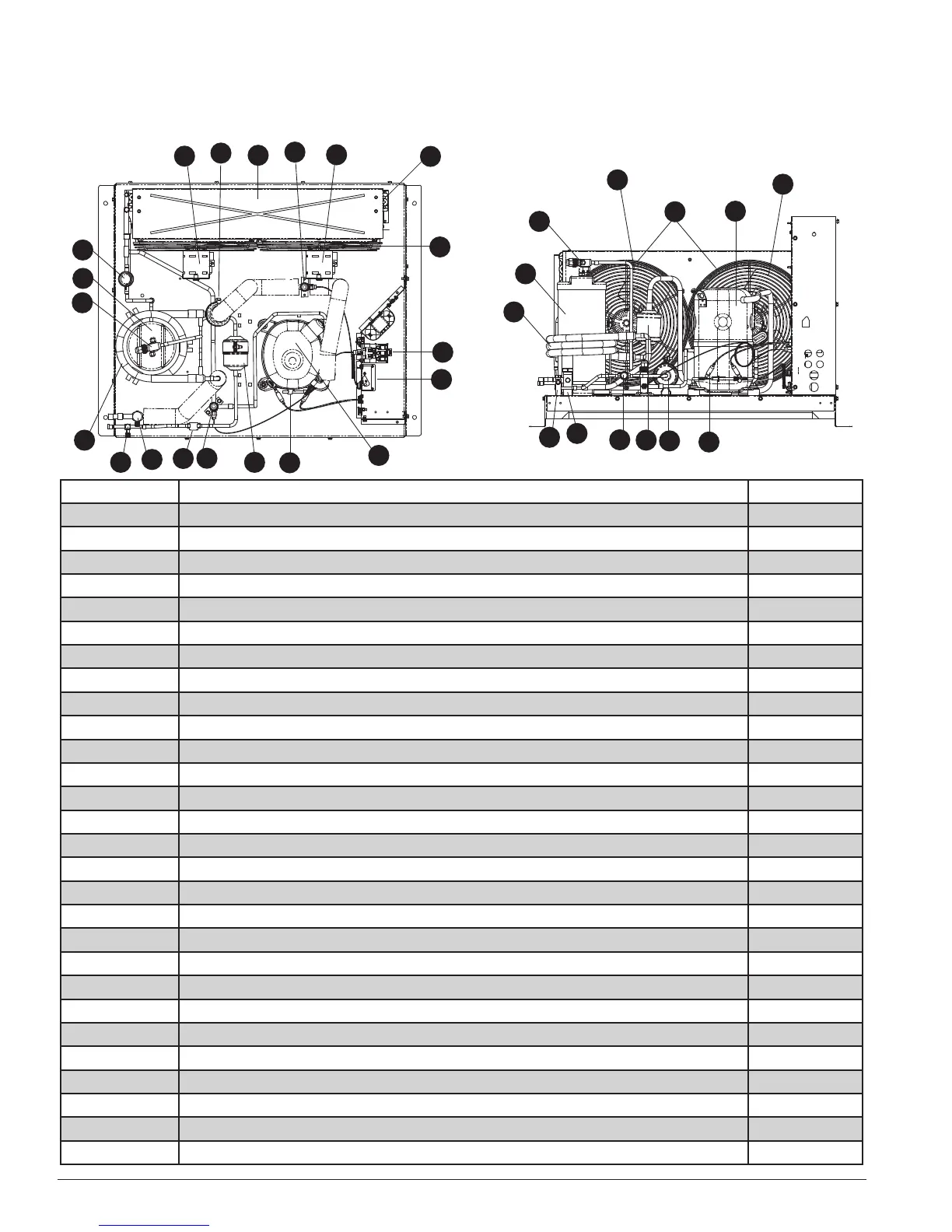

Top View
Side View
Order parts online
www.follettice.com
Single-phase condensing unit
Tecumseh Condensing Unit Date Code C0713 and before
