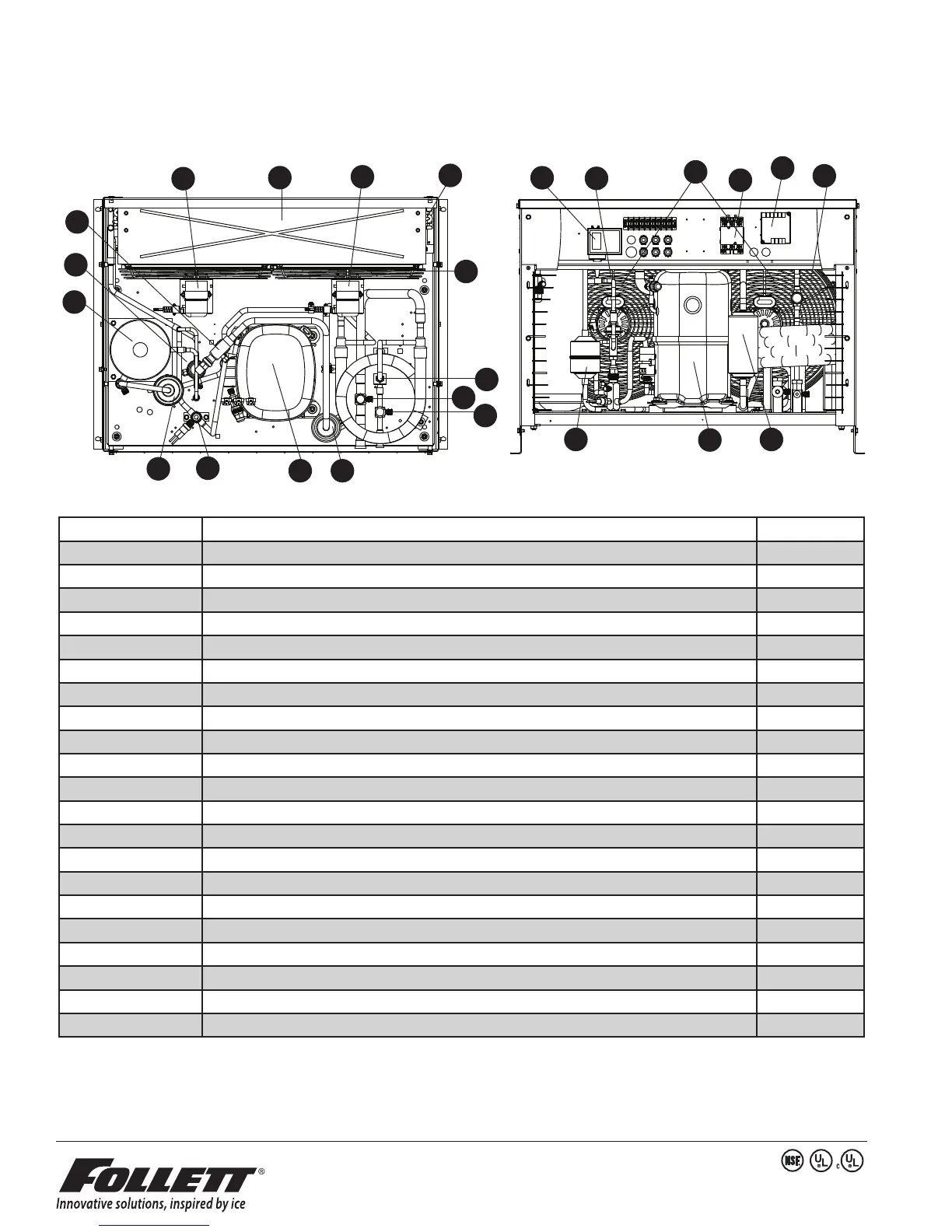

3-phase condensing unit
6
7
3
4
1
4
2
5
8
9
10
11
13
7
8
13
5
14
15
12
16
12
17
18
Reference # Description Part #
1 Shroud 01018290
2 Condenser 00185843
3 Head pressure control valve 00110619
4 Condenser fan motor 01018266
5 Condenser fan guard 00123067
6 Receiver 00991034
7 Filter drier, liquid 00998252
8 Compressor 00998237
9 Shut-off valve, suction line 00107078
10 Shut-off valve, liquid line 00107060
11 Sight glass 00175885
12 Condenser fan blade 00173088
13 Filter drier, suction 00991075
14 Contactor 00155952
15 Low pressure control 00991109
16 Phase monitor 00991117
17 Suction valve 01036797
18 Discharge valve 01036789
Not shown Check valve 00175893
Not shown High pressure switch 00173112
Not shown Fan cycling switch 00173120
