Oxygen Concentrator User Manual
Note: Do not attach any other device to the outlet where the oxygen concentrator is
connected.
2. Before operating the device always make sure that the air filter is installed and
clean.
3. Attach the recommended Oxygen Concentrator accessories (Humidifier Bottle and
Cannula) to the device.

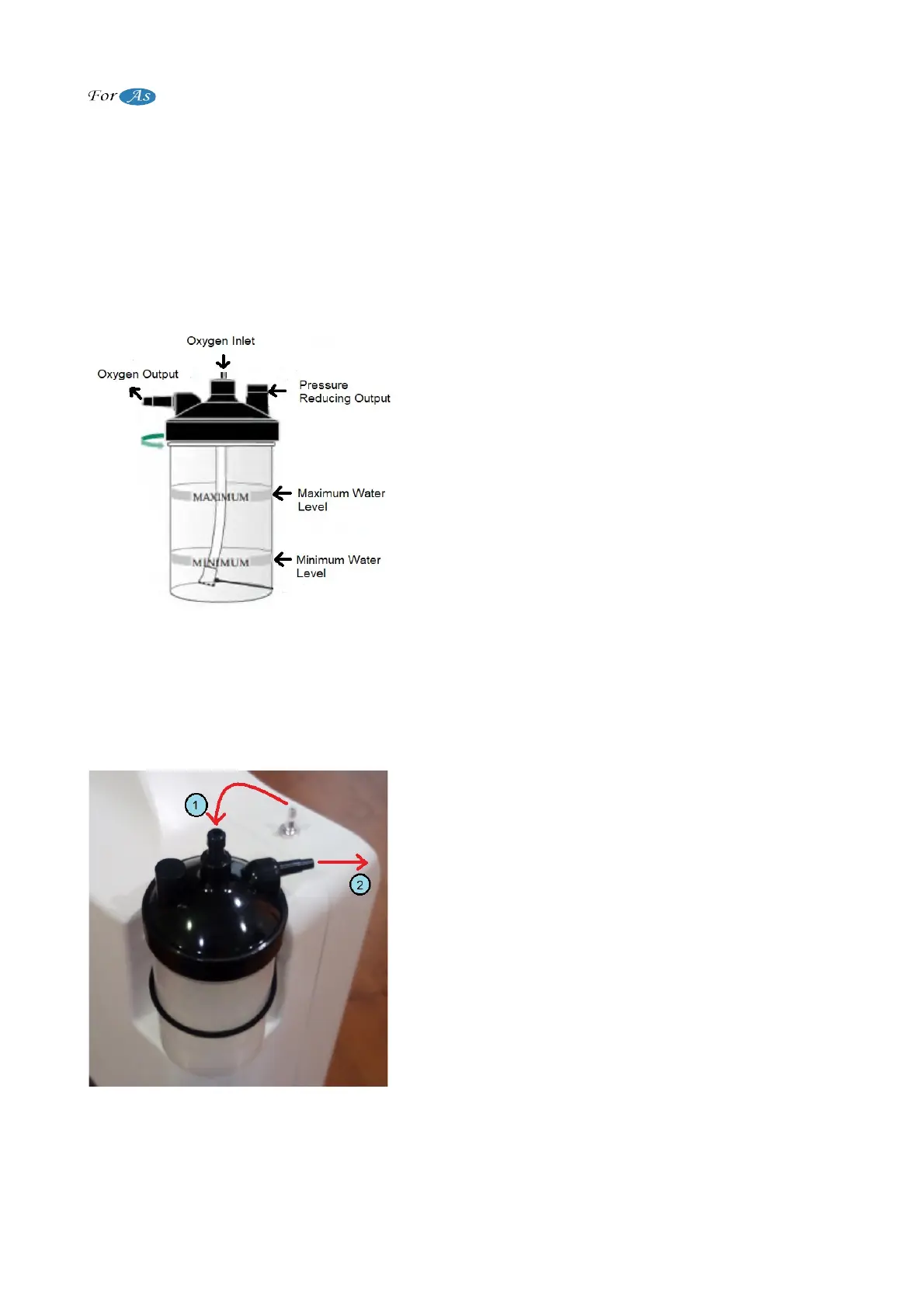

Humidifier Bottle Usage
a.) Remove the humidifier bottle cover by turning
it in the direction of narrow.
b.) Put water to humidifier bottle until Maximum
level. Do not exceed maximum level (As
manufacturer, we recommend you to put water
between maximum-minimum levels and to
replenish the water every day.) Put boiled and
chilled or bottled water to the humidifier bottle.
(Do not use tap water)
c.) Close the lid and replace the humidifier bottle
on oncentrator. When installing the cover, make
sure it is properly installed. Otherwise it could
leak oxygen through the hatch.
d.) Connect the oxygen hose that comes from
oxygen concentrator to the oxygen inlet.
e.) Connect the cannula to the oxygen outlet.
(Figure 5) f.) Make sure there is no calcification or
sediment in the humidifier bottle.
Humidifier Bottle Tube Connection
1. Interconnecting tube is connects from oxygen outlet
of device to the place on the humidifier bottle that
shown in Figure 6.
2. Nasal cannula connects to oxygen outlet.
NOTE: Care should be taken to avoid calcification and
blockage of the hose tip in the humidifier bottle. If the
humidifier bottle will not be used, the cannula must be
connected directly to oxygen outlet.
If the humidifier bottel is not to used, the cannula
should be connected directly to the oxygen outlet. The
image of the humidifier bottle is its representation, it
can differs from the original. Humidifier bottle should
be changed once in a month.
(Figure 6)
