FUSE SPECIFICATION CHART
Power Distribution Box
WARNINGS
Always disconnect the battery before
servicing high-current fuses.
To reduce risk of electrical shock,
always replace the cover to the
power distribution box before
reconnecting the battery or refilling fluid
reservoirs.

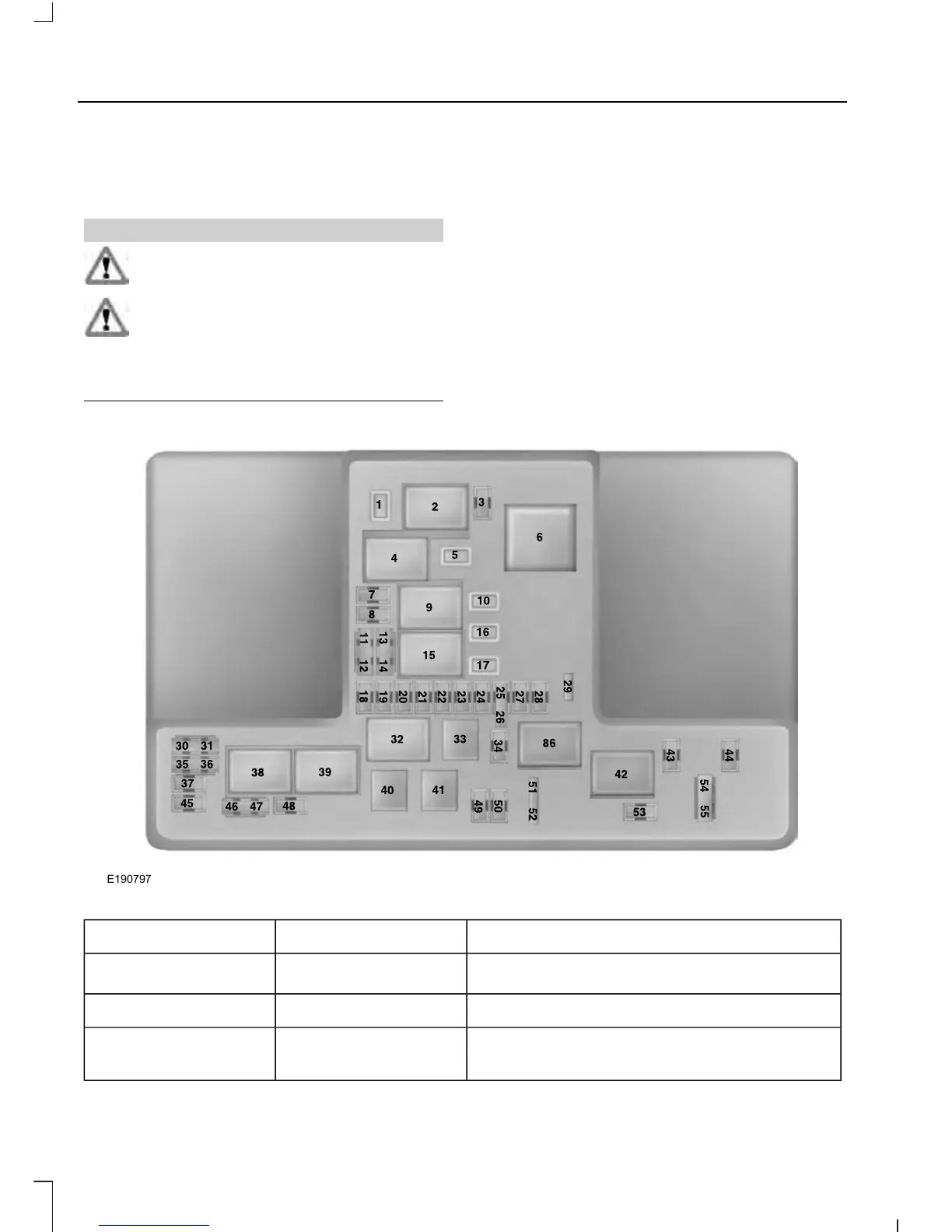

The power distribution box is located in
the engine compartment. It has
high-current fuses that protect your
vehicle's main electrical systems from
overloads.
If the battery has been disconnected and
reconnected, some features will need to
be reset. See Changing the 12V Battery
(page 269).
Protected componentsFuse amp ratingFuse or relay number
Not used (spare).
30A
3
1
Starter relay.—2
Rear wiper.
15A
1
3
Rain sensor
248
Edge/Galaxy/S-MAX (CDQ), enUSA, First Printing
Fuses
