ENGINE SPECIFICATIONS - 2.0L ECOBOOST™

2.0L EcoBoost EngineEngine

122Cubic inches

Minimum 87 octaneRequired fuel

9.7:1Compression ratio

0.027-0.031 in. (0.70-0.80 mm)Spark plug gap

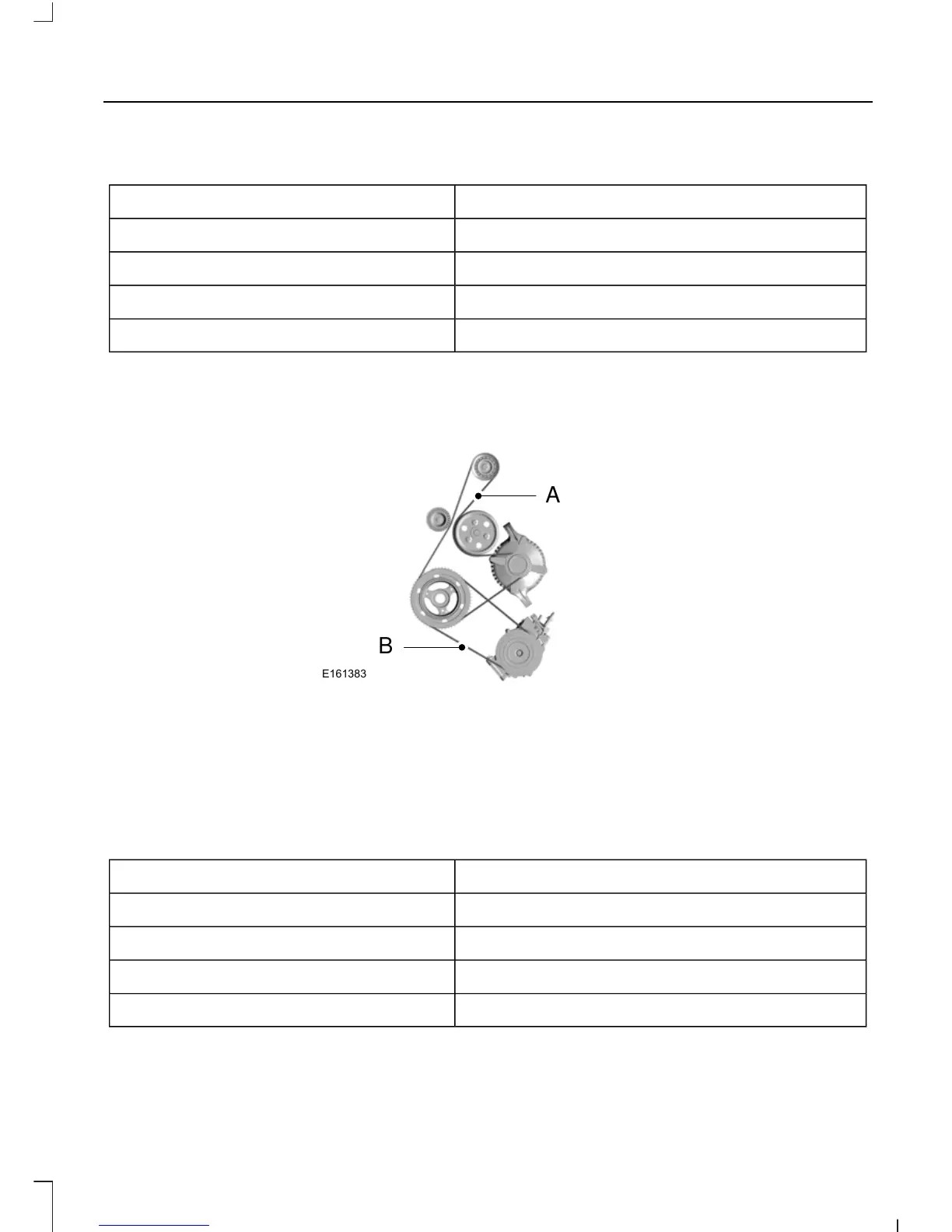

Drivebelt Routing

2.0L Ecoboost engine

E161383

A. Long drivebelt is on first pulley groove

closest to engine.

B. Short drivebelt is on second pulley

groove farthest from engine.

ENGINE SPECIFICATIONS - 2.7L ECOBOOST™

2.7L EcoBoost engineEngine

164Cubic inches

Minimum 87 octaneRequired fuel

10.0:1Compression ratio

.028-.031 (0.7 - 0.8 mm)Spark plug gap
