Ford 2015 EDGE - Under Hood Overview - 2.0 L Ecoboost; Closing the Hood

E191432
4
4. Open the hood. The hood strut
automatically supports the hood.
Closing the Hood
1. Lower the hood and allow it to drop
under its own weight for the last 8-12
in (20-30 cm).
Note: Make sure that the hood is correctly
closed.

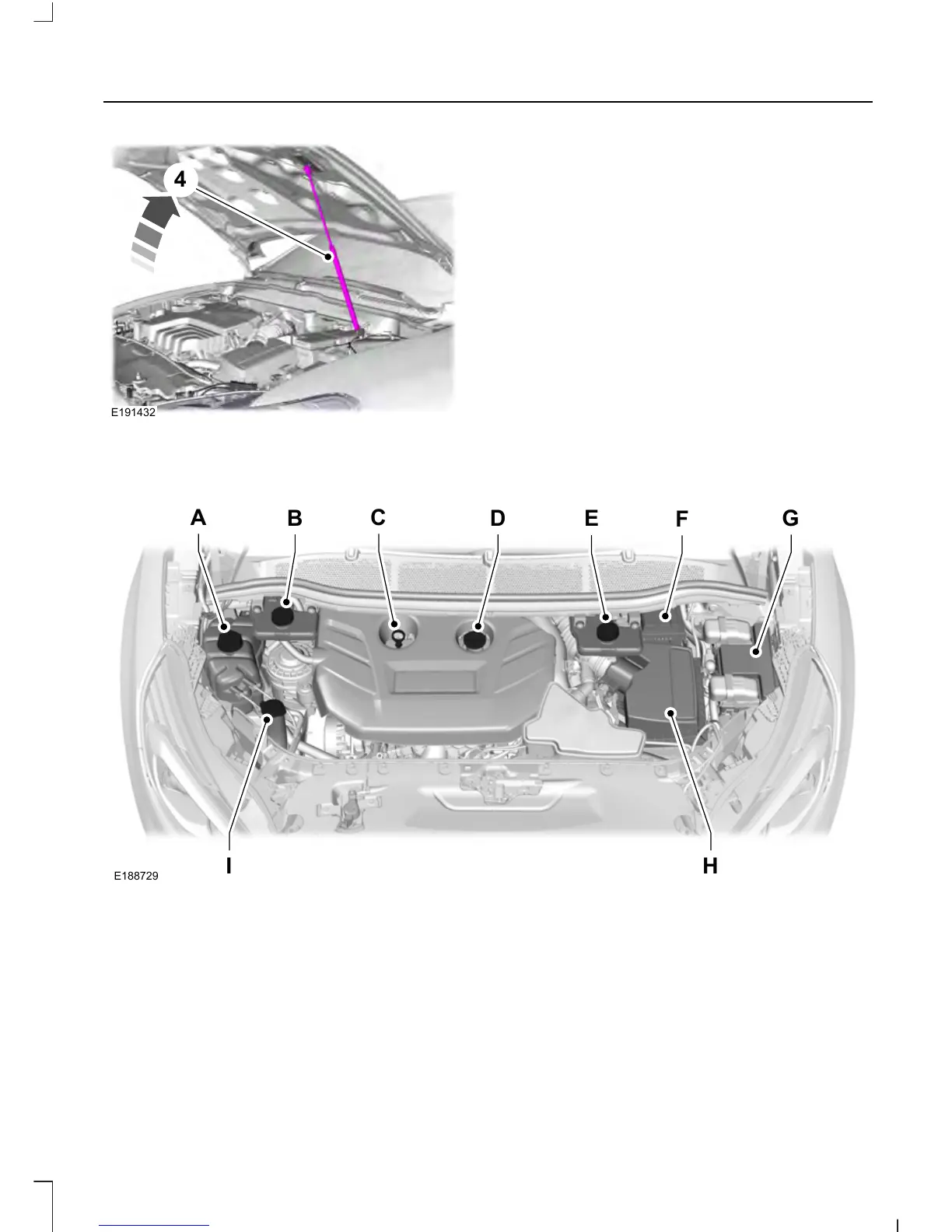

UNDER HOOD OVERVIEW - 2.0L ECOBOOST™
A
I H
EB
C
D
F
G
E188729
Engine coolant reservoir. See Engine Coolant Check (page 263).A
Brake fluid reservoir (right-hand drive). See Brake Fluid Check (page 268).B
Engine oil dipstick. See Engine Oil Dipstick (page 262).C
Engine oil filler cap. See Engine Oil Check (page 262).D
Brake fluid reservoir (left-hand drive). See Brake Fluid Check (page 268).E
Battery. See Changing the 12V Battery (page 269).F
259
Edge/Galaxy/S-MAX (CDQ), enUSA, First Printing
Maintenance
