Protected componentsFuse amp ratingFuse or relay number
Auto-dimming rear view mirror.
15A
1
36
Heated seat.
Auto high beam/lane departure mirror
module.
Rear heated seat module logic power.
Heated steering wheel module (without
active front steering).
15A
1
37
Rear power windows.
30A
3
38
Rear window switch illumination.
1
Micro fuse.
2
Dual micro fuse.
3
Circuit breaker.

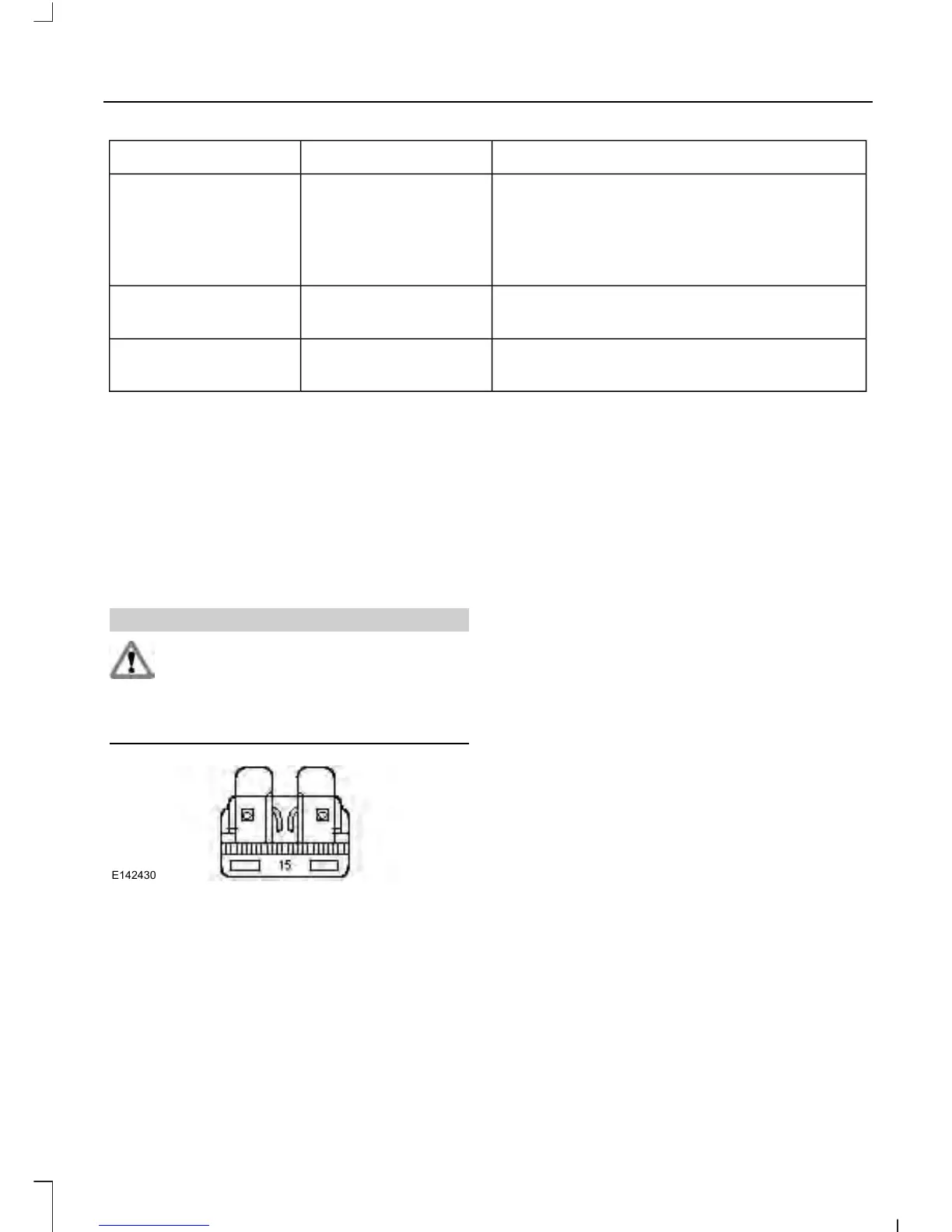

CHANGING A FUSE
Fuses
WARNING
Always replace a fuse with one that
has the specified amperage rating.
Using a fuse with a higher amperage
rating can cause severe wire damage and
could start a fire.
If electrical components in the vehicle are
not working, a fuse may have blown. A
break in the fuse wire will indicate a blown
fuse. Check the appropriate fuses before
replacing any electrical components.
257
Edge/Galaxy/S-MAX (CDQ), enUSA, First Printing
