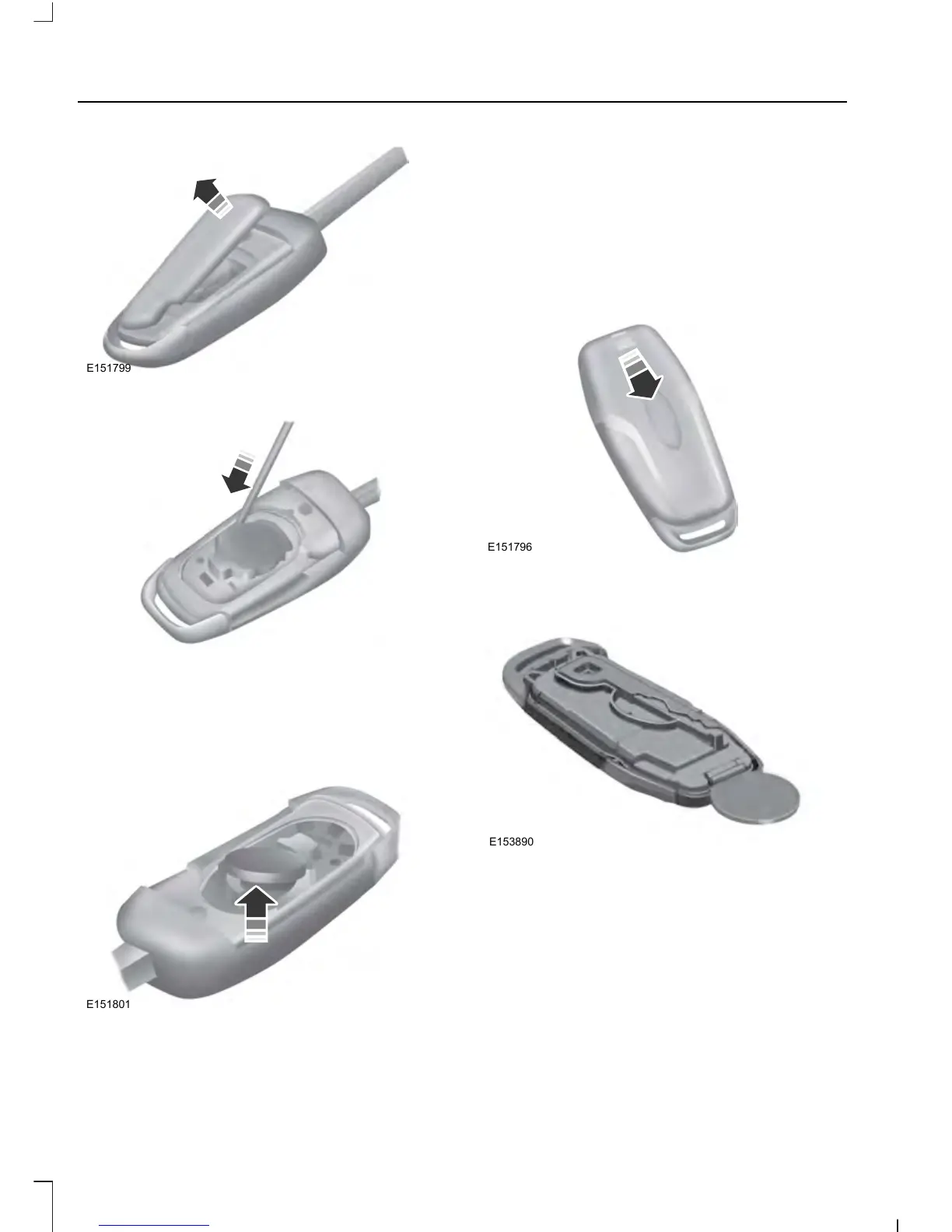

3. Carefully remove the cover.
Note: Do not touch the battery contacts or
the printed circuit board with the
screwdriver.
4. Insert a screwdriver as shown to
release the battery.
5. Remove the battery.
6. Install a new battery with the + facing
up.
7. Replace the battery cover.
Intelligent Access Transmitter
The remote control uses two coin-type
three-volt lithium batteries CR2025 or
equivalent.
1. Slide the release on the back of the
remote control and pivot the cover off.
2. Insert a coin into the slot and twist to
separate the housing.
50
Edge/Galaxy/S-MAX (CDQ), enUSA, First Printing
Keys and Remote Controls
