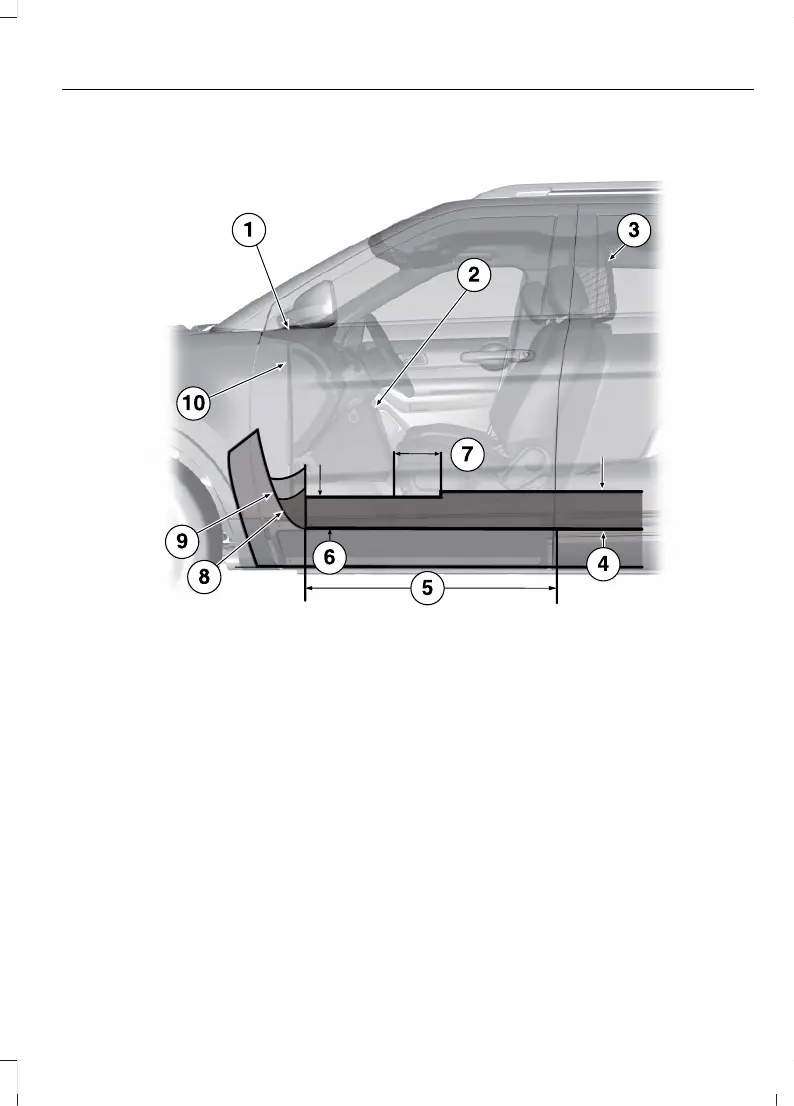

Figure 9 (Equipment Mounting Zones)
Area on top of instrument panel.1.
Area in front of center console from tunnel up to instrument panel.2.
Prisoner screen (reference only).3.
10 in (254 mm).4.
Area on tunnel between seats.5.
Height: 8.5 in (216 mm).6.
12 in (305 mm).7.
Area on tunnel beneath center console.8.
Tunnel.9.
Depth: 1.5 in (38 mm).10.
67
Explorer (CTW) Canada/Mexico/United States of America, enUSA, Edition date: 202401, DOM
Airbags
