Assembly

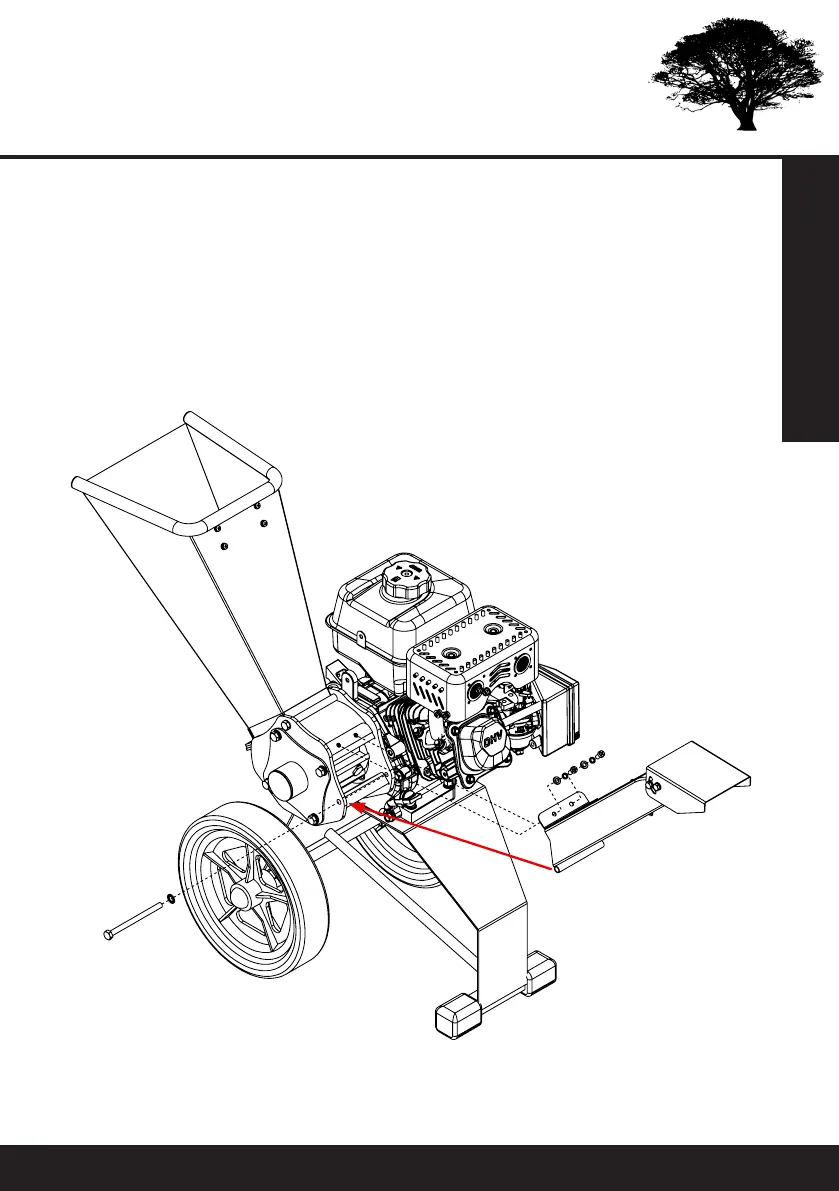

10. Place the discharge chute (34) on the drum housing (14), lining up the tubing on
the bottom of the chute with the bolt holes on the drum housing.
11. Slide the M8 bolt (49) through the M8 serrated washer (55), the drum housing
bolt holes and discharge chute tubing; the bolt should nd a thread on the other
side of the housing to fasten together.
12. Fasten the other side of the discharge chute (34) to the top of the drum housing
(14) through the bolt holes using the M6 bolts (50), M6 spring washers (59) and
M6 washers (41). The order of assembly is: [Bolt] – [Spring Washer] – [Washer] –
[Discharge Chute] – [Drum Housing].
