Forest Master Model: FM6DD/FM4DDE8
Assembly
Assembly
1. Lay all the parts out at in a suitable assembly area and check to make sure all
parts are there.

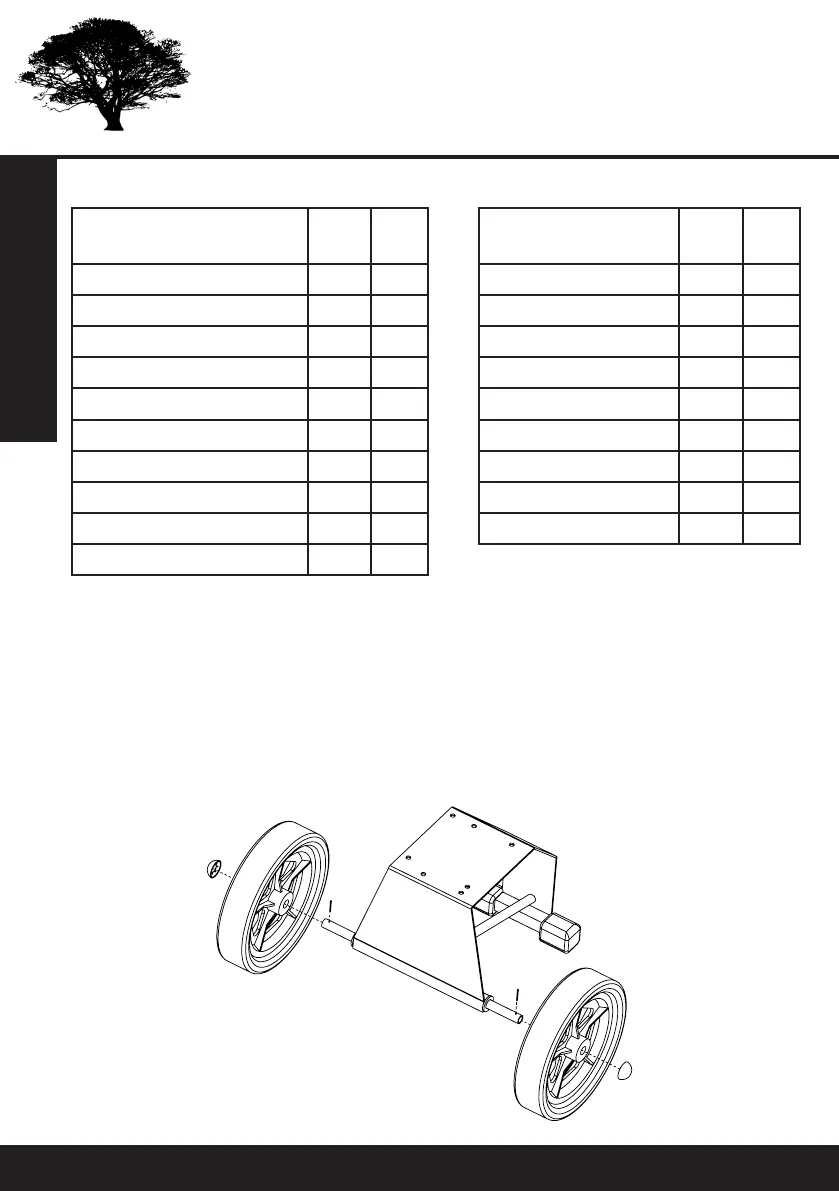

2. Slide the axle (46) into the square tubing of the base (42) and place a 16mm at
washer (47) on each end of the axle.
3. Next, place the wheels (43) on each end of the axle (46) and secure with a split
pin (45) through the small holes on the outer of the axle (46).
4. Finally, place each dome cap (48) on the ends of the axle (46) and secure the cap
by tapping it with a mallet or hammer.
Part Name
Part
No.
Qty.
Engine/Motor with Drum 60 1
Base 42 1
Feed Hopper 1 1
Discharge Chute 34 1
Axle 46 1
Wheels 43 2
Split Pin 45 2
16mm Washer 47 2
Dome Cap 48 2
M8x35 Bolts 56 4
Part Name
Part
No.
Qty.
M8 Washers 33 8
M8 Spring Washer 30 4
M8 Nut 57 4
M8x110 Bolt 49 2
M8 Serrated Washer 55 2
M6x23 Bolt 51 1
M6 Washer 41 3
M6 Spring Washer 59 3
M6x12 Bolt 50 2
Assembly Parts
