Forest Master Model: FM6DD/FM4DDE 9
Assembly

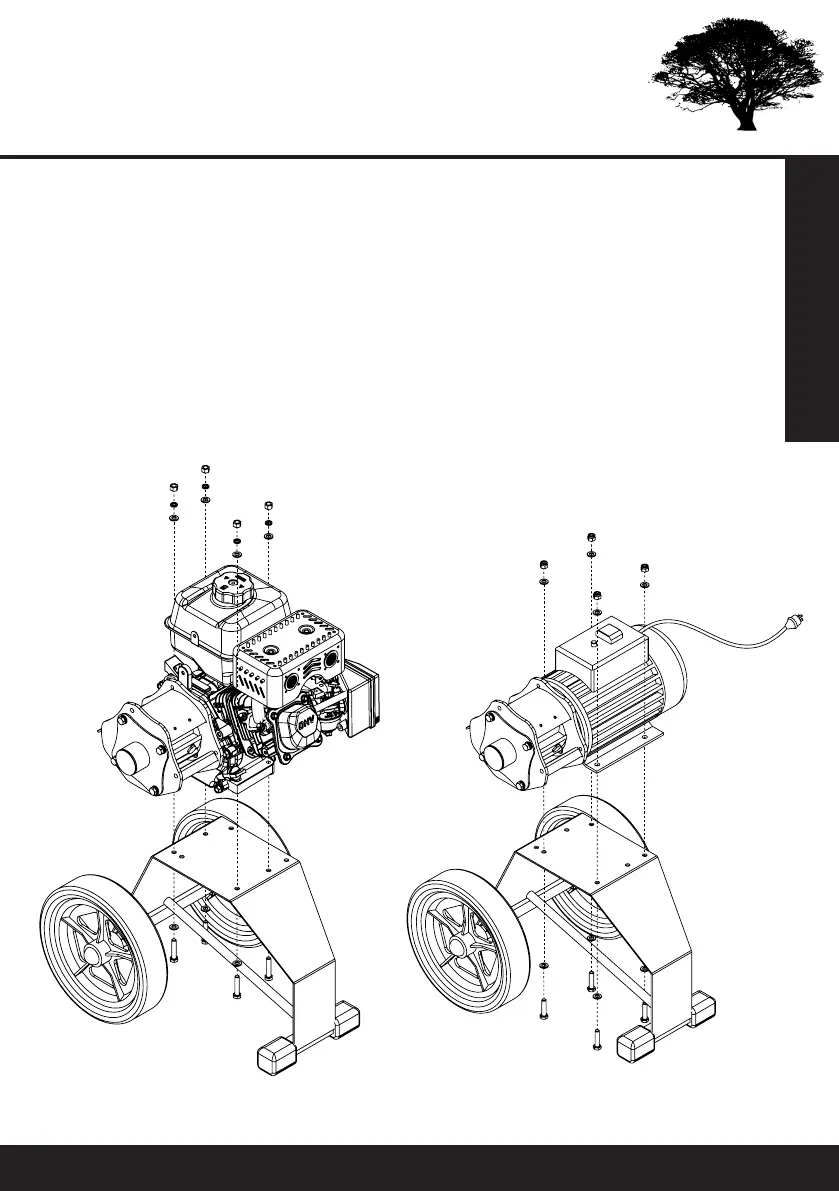

5. Place the engine/motor (60) on top of the base (42), lining the engine/motor
mounting holes with the bolt holes of the base.
Fastening the engine and motor through the following methods:
Engine (FM6DD)
Fasten the engine (60) with the M8 bolts (56), M8 washers (33), M8
spring washers (30) and M8 nuts (57). The order of assembly is:
[Bolt] – [Washer] – [Base] – [Engine] – [Washer] – [Spring Washer] – [Nut].
Motor (FM4DDE)
Fasten the motor (60) with the M8 bolts (56), M8 washers (33) and M8 Lock Nuts
(57). The order of assembly is:
[Bolt] – [Washer] – [Base] – [Motor] – [Washer] – [Lock Nut].
FM6DD FM4DDE
