Forest Master Model: FM6DD/FM4DDE10

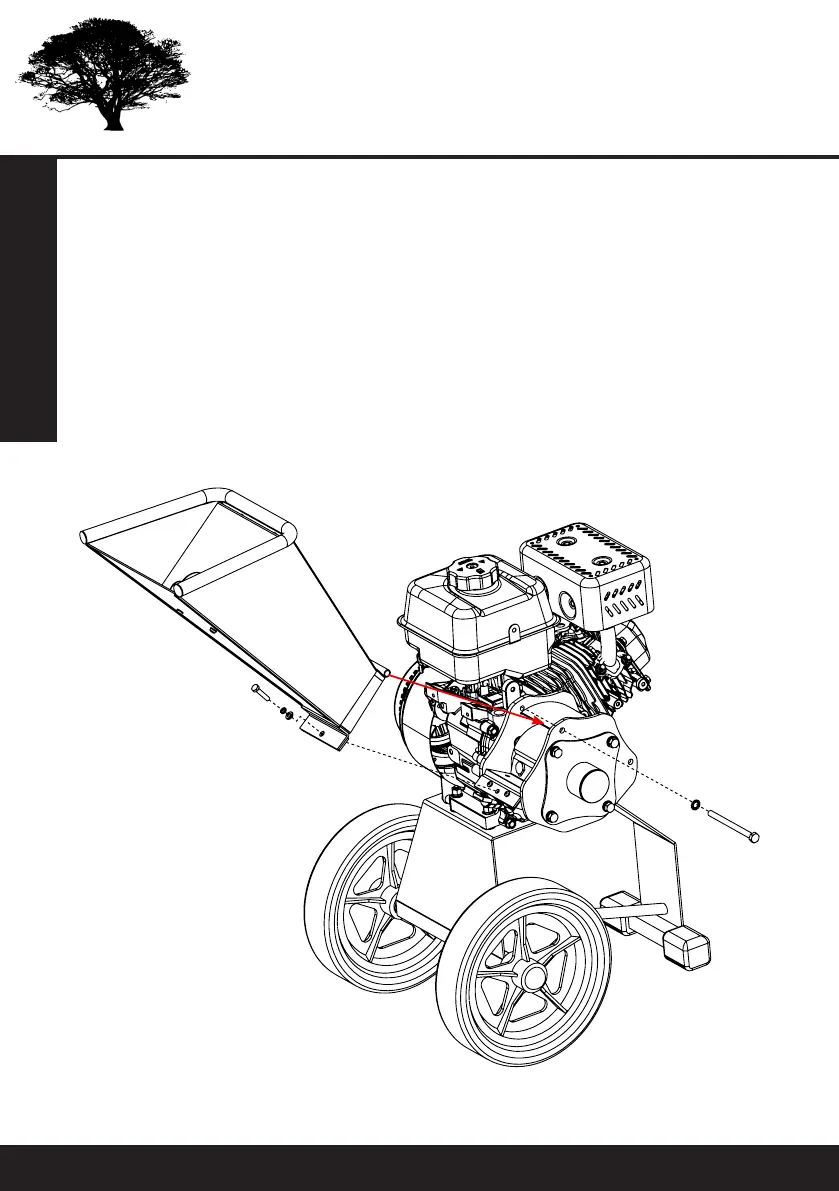

7. Place the feed hopper (1) on the drum housing (14) so that the tube on the back
of the hopper lines up with the top bolt holes on the drum housing.
8. Slide the M8 bolt (49) through the M8 serrated washer (55), the drum housing
bolt holes and feed hopper tubing; the bolt should nd a thread on the other
side of the housing to fasten together.
9. Fasten the bottom of the feed hopper (1) to the drum housing (14) using the
M6 bolts (51) the M6 washer (41) and the M6 spring washer (59). There is a
thread in the drum housing to fasten the bolt into. The order of assembly is:
[Bolt] – [Spring Washer] – [Washer] – [Feed Hopper] – [Drum Housing].
Assembly
