Manual - Formech 300XQ
11
General Arrangement
Reducing Windows (continuation)
3. Place the top reducing window on the underside of the clamp frame. There are folded sections on the
front and rear. The rear edge has the larger return and wraps completely around the clamp frame bar. The
front fold is smaller and returns against the front clamp frame bar. The fi xing bolt is fi tted through the clamp
frame bar and reducing window and secured using the fi xing nut.. See diagram below of side view of the top
window fi tting above and images below.
4. Close the clamp frame. Check alignment of top and bottom window. Fit the required plastic material on
the sealed lower reducing plate. The material toggle clamps will need adjusting so that the clamp.

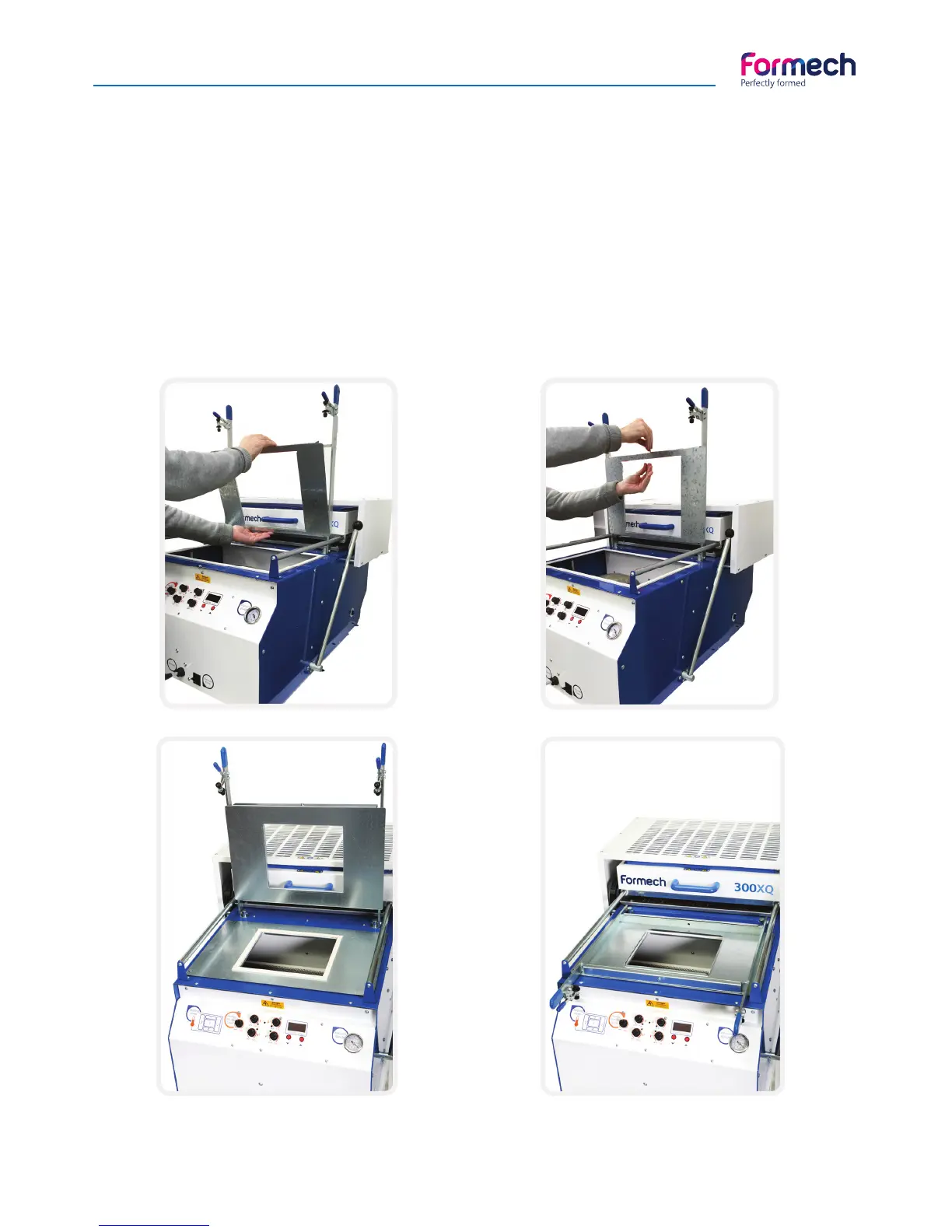

Top and bottom reducing
windows in place
Machine fi tted with a
reducing window
