Manual - Formech 300XQ
24
Service / Repair
Electrical Troubleshooting
Before any maintenance work is carried out, electrical supply must be locked in the OFF position
or the mains lead removed.
Faults on electrical & electronic modules are rare but loose plugs and terminals are responsible for most
electrically based failures. A logical approach to detecting the fault begins with a complete appraisal of the
faults and symptoms.
Much time can be wasted looking in the wrong areas for a problem that, when found, was obvious.
See also section dealing with Electrical circuit information.
Only a qualifi ed electrical technician may work on any parts carrying mains voltage and should
be responsible for ensuring that the machine is in a safe condition before allowing services to be
restored.

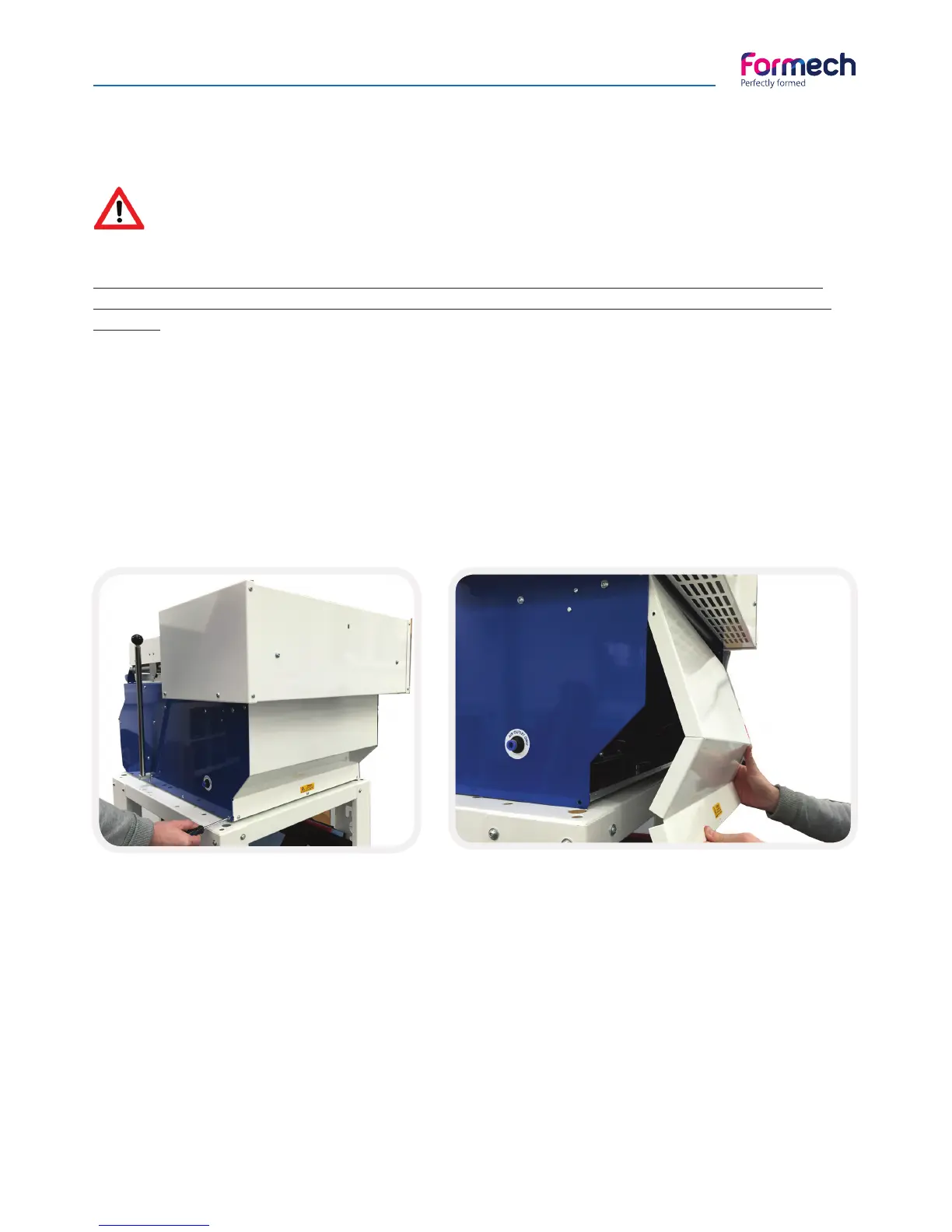

Remove the 7 self-tapping screws
retaining the rear panel.
Check all the connections to the
inlet receptable, the fuse holder
and the power switch located in
the inside back of the machine.
Check the internal fuse located in the fuse holder connected to the power inlet and switch. The fuse
is 20MM, 12.5A .
