General Arrangement
Mechanical Specifi cations
Max Material Size: 450mm x 300mm
Max Forming Area: 430mm x 280mm
Max Depth of Draw: 160mm
Overall Width: 650mm
Overall Height: 530mm
Overall Length: 970mm
Weight: 75Kg
Electrical Specifi cations
Standard Voltage: 208V-240V ac
Frequency: 50-60Hz
Power: 2.3Kw

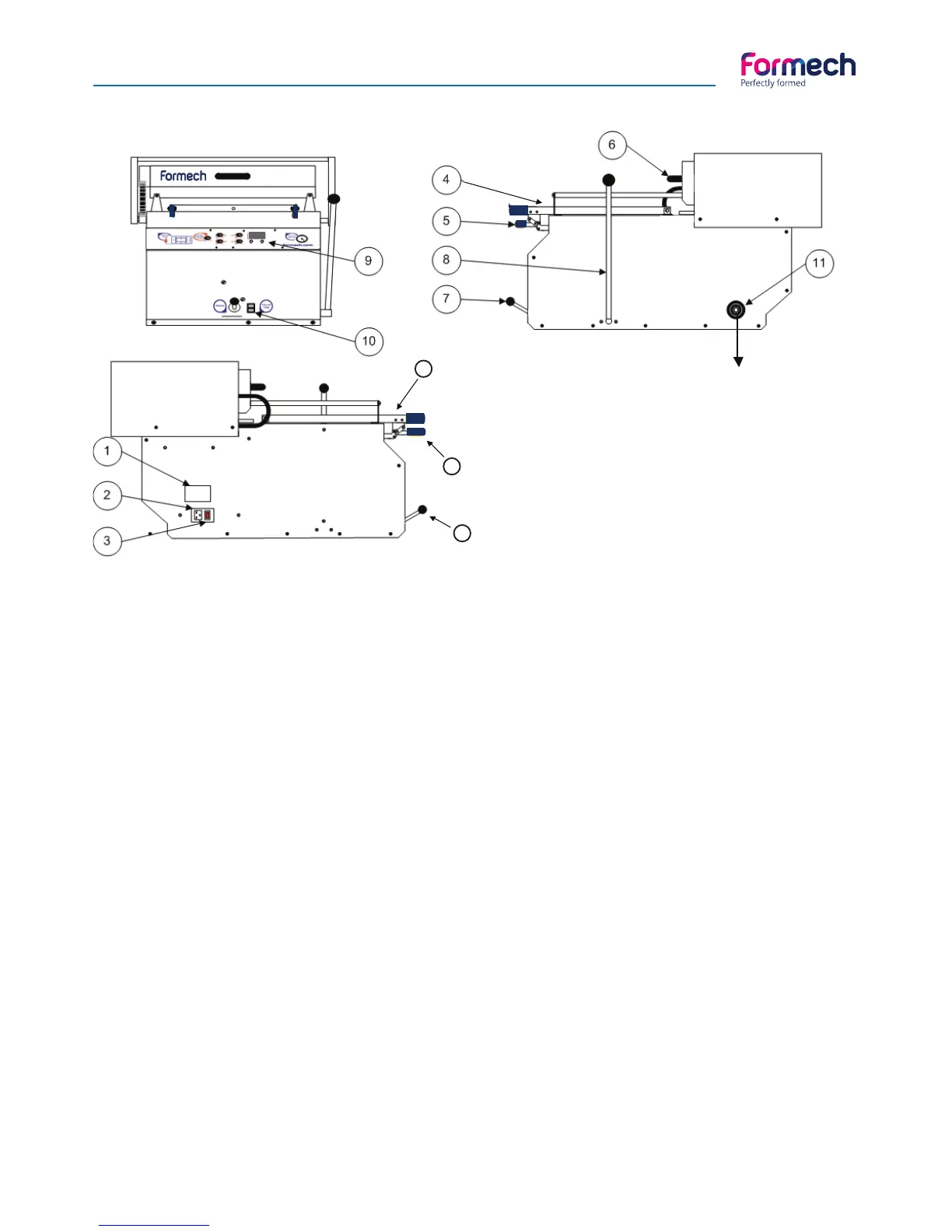

1-Specifi cation Plate
2-Power Inlet (EC)
3-Power switch ON/OFF
4-Clamp Frame
5-Material Clamps
6-Heater Box
7-Vacuum / Pressure Valve
8-Table Lever
9-Control panel
10-Pump switch ON/OFF
11-Air output
300XQ
Do not connect
air supply here
Transportation / Positioning
The 300XQ will be supplied strapped to a Pallet or in a crate. The machine may unpacked and placed on a
bench, table or 300XQ trolley. Ensure that the structure, size and load bearing capacity of the bench or table
is suffi cient for the machine weight. A minimum of 2 persons are required to lift the machine. In the case
of the 300XQ trolley, ensure that the 2 machine retaining screws are fi tted to the under side of the trolley /
Machine.
Noise emissions
Noise emissions on the Formech 300XQ are less than 70dB(A).
Machine storage
The Formech 300XQ must be stored in a dry environment. If the machine is not used for a long period of
time, run the pump periodically (once a month).
