Service / Repair

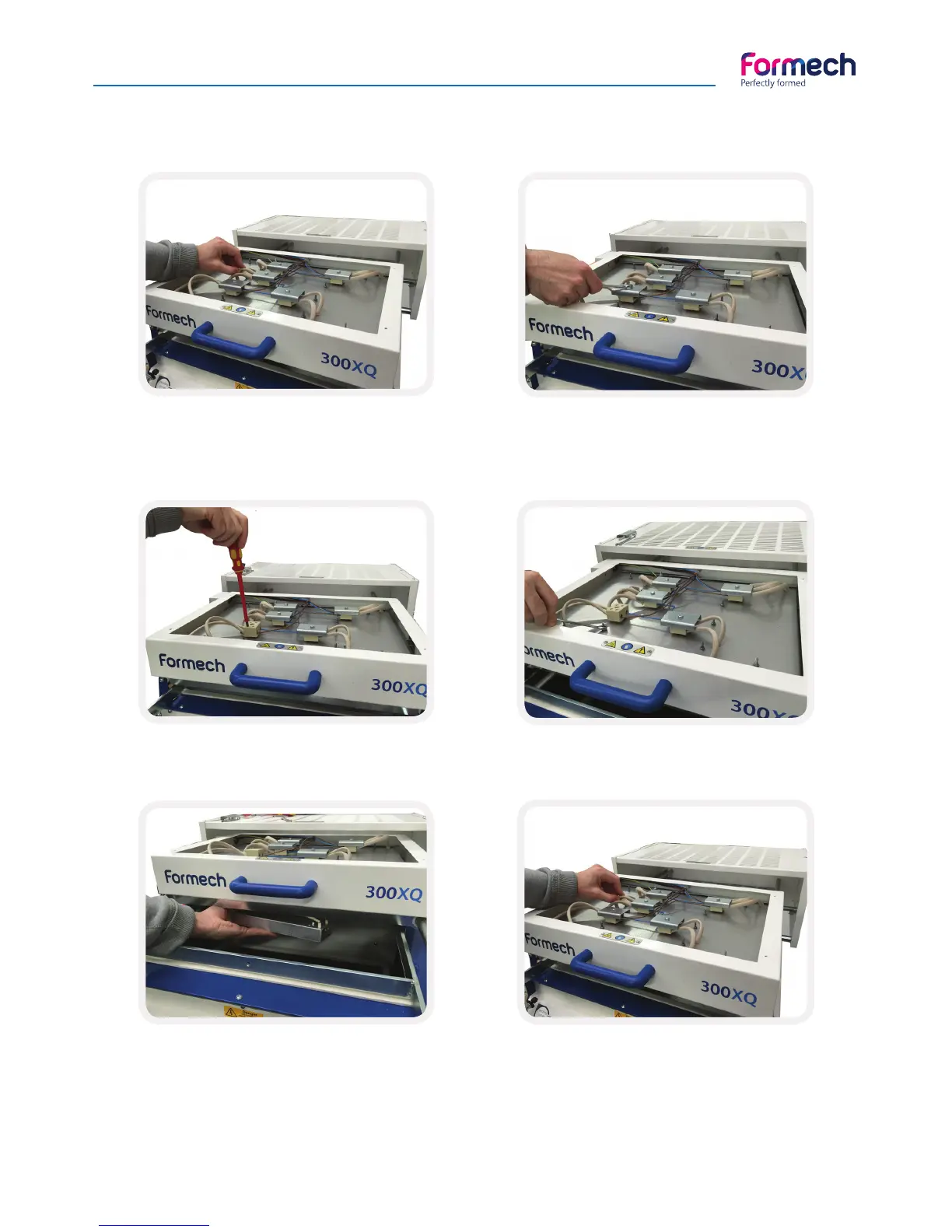

Replacing a heating element (continuation)
At this stage check that all the element
wires and interconnecting wires are fully
tightened and that the fault was not
merely a loose connection.
Remove the relevant terminal block
cover(s).
Loosen and remove the element wires
from the appropriate connector block.
Remove the nuts and washers holding the
faulty element. Spanner key n°8
Remove element and fit the replacement
new heating element ensuring the fixing
screws are secured.
Ensure that the connections are
correctly fitted and the connector block
screws are fully tightened. Replace the
connector cover and test the heater.
Finally reassemble the heater top cover
and retaining plate for the front fixings.
