Specifications
Approximate Weight 7,000 Lbs. (3,175 Kg)
Capacities:
Fuel Tank 113 Gal. (428 L)
Fresh Water Tank 19 Gal. (72 L)
Holding Tank 2.6 Gal. (9.8 L)
Steering System Cable to Hydraulic Assist Ram - I/O
Full Hydraulic (Engine Pump) - I/O
1
A
B
C
D
23456789
FOR188

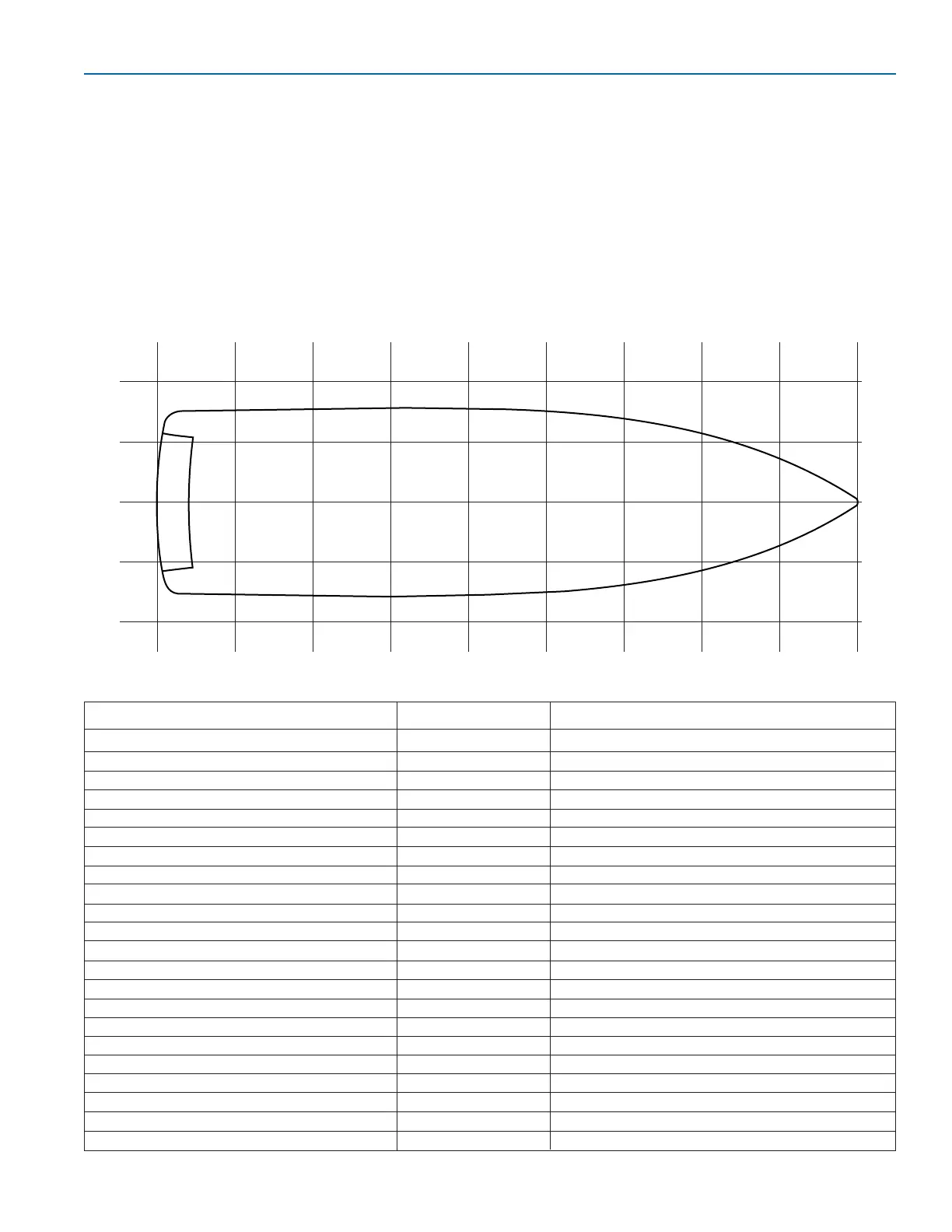

292 Equipment Location
Item
AC/DC Control Panel
Air Conditioning Control
Automatic Fire Extinguisher
Battery Charger
Battery ON/OFF Switch
Battery Parallel Switch
Bilge Pump FWD
Bilge Pump AFT
Carbon Monoxide Detector
Central Vacuum
Circuit Breaker Panel - Helm
Circuit Breaker Panel - AFT
Circuit Breaker - Shore Power 1
Circuit Breaker - Shore Power 2
Circuit Breaker - Windlass
Circuit Breaker - Auxiliary Power
Drive Unit Trim Pump - Port
Drive Unit Trim Pump - STBD
Engine Compartment Blowers
Engine Compartment Hatch Handle
Engine Compartment Switch
Fire Extinguisher - Cabin
Location
N/A
N/A
A-2
N/A
B-3
B-3
N/A
B/C-2
A-5
N/A
D-5
B-3
N/A
N/A
N/A
B2
A-1/2
D-1/2
A/D-1
N/A
D-4
A-3
Remarks
Port hull side engine compartment
Under aft seat
Under aft seat
FWD engine compartment center strainer
Port side below stereo/storage
Deck wall under helm unit
Under aft seat
Under aft seat
Port hull side engine compartment
STBD hull side engine compartment
Port/STBD hull side engine comp.
Helm dash
Storage compartment below sink
