Formula Fastech - Helm Controls and Indicators

4-9
FORMULA
CONTROLS AND INDICATORS
FASTECH
HELM CONTROLS AND
INDICATORS

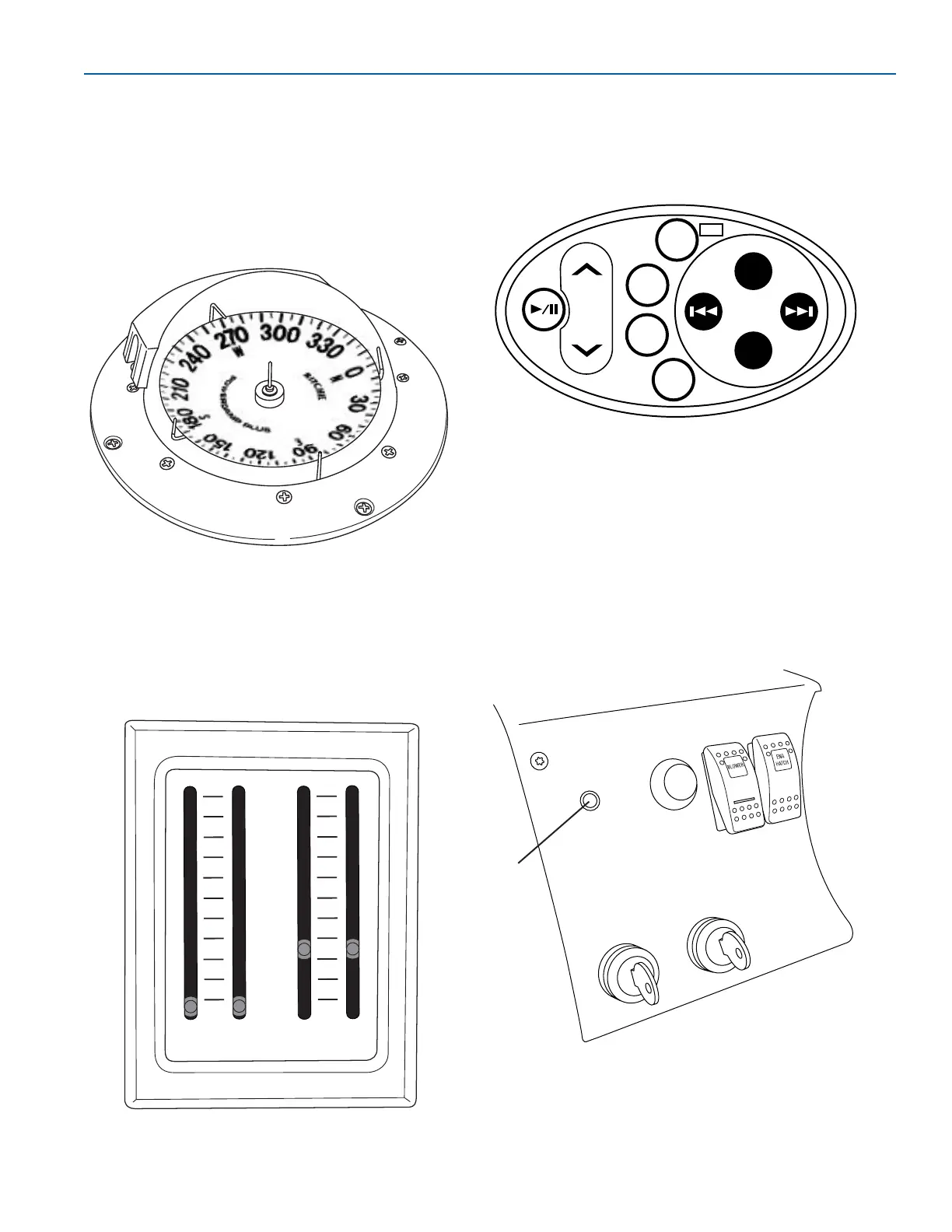

Compass—Aids in navigation of your Formula
boat, a compass is mounted at the helm. Refer to
the compass user’s manual supplied in your
Owner Information Binder for operating
information.
Trim Tab/Drive Indicators—If equipped, your
boat may include mechanical indicators for both
the trim tabs and drives. Refer to Trimming-Drive
Units and Trim Tabs, in Section 7, for trim tab
operation.
Trim Tab Indicators
Figure 4-23
9
8
7
6
5
4
3
2
1
0
IN
DRIVES
TABS
UP
9
8
2
3
4
5
6
7
9
8
Compass
Figure 4-22
Stereo Remote Control—Provides full-feature
stereo control from the helm and/or swim
platform. Depending on the particular FASTech
model, one or more volume controls may be
installed (Figure 4-23).
Automatic Fire Extinguisher Indicator—
Monitors the fixed automatic fire extinguisher
mounted in the engine compartment. The
automatic fire extinguisher indicator light is
located at the helm. When the light is on, the
system is charged. When the light is off, the
system is discharged and needs attention. Refer
to Automatic Fire Extinguisher, in Section 5, for
additional information.
1. Indicator Light
Automatic Fire Extinguisher Indicator Light
Figure 4-25
ALARM WILL SOUND WHEN
OIL PRESSURE IS LOW
OR ENGINE IS HOT.
LIGHT ON
SYSTEM
CHARGED
HALON
HORN
LIGHT OFF
SYSTEM
DISCHARGED
WARNING
:
GASOLINE V
APORS
C
AN EX
PLODE. B
EFORE STARTING ENGINE
:
–C
HEC
K
ENGINE
C
OMPARTMENT F
OR GASOLINE OR VAPORS.
–OPERATE B
LOWERS F
OR 4 MINUTES. RUN
B
LOWER BELOW
C
RUSING SPEED.
1
Stereo Remote Control
Figure 4-24
DISC UP
DISC DOWN
TRACK/TUNE
FM
TUN
CD
TAPE
VOLUME
CD
CH
OFF
SRC
AM
FOR262
FOR272
FOR037
FOR266
