The 12 VDC system consists of a 30-amp main
circuit breaker and a series of switch-type circuit
breakers, including a dedicated circuit for the CO
detector.
The CO detector (sensor) circuit breaker must be
in the ON position at all times with the slide lock
engaged. Only disengage the slide lock and turn
OFF the CO detector circuit breaker during long
periods of storage.
To operate the 12 VDC system:
●
Turn ON the DC main circuit breaker.
●
Activate the individual component circuit
breaker.
12-Volt Accessory Power Receptacle—Your
Formula is equipped with a 12-volt accessory
power receptacle(s). The receptacle provides
electricity to operate 12 VDC accessory items.
AC ELECTRICAL
Any modification performed on the boat’s
AC system must be made by a qualified
marine technician. The modification must
be checked to assure compliance with
ABYC guidelines and National Electrical
Codes.
12-Volt Accessory Power Receptacle
Figure 5-2
FOR140
FOR087

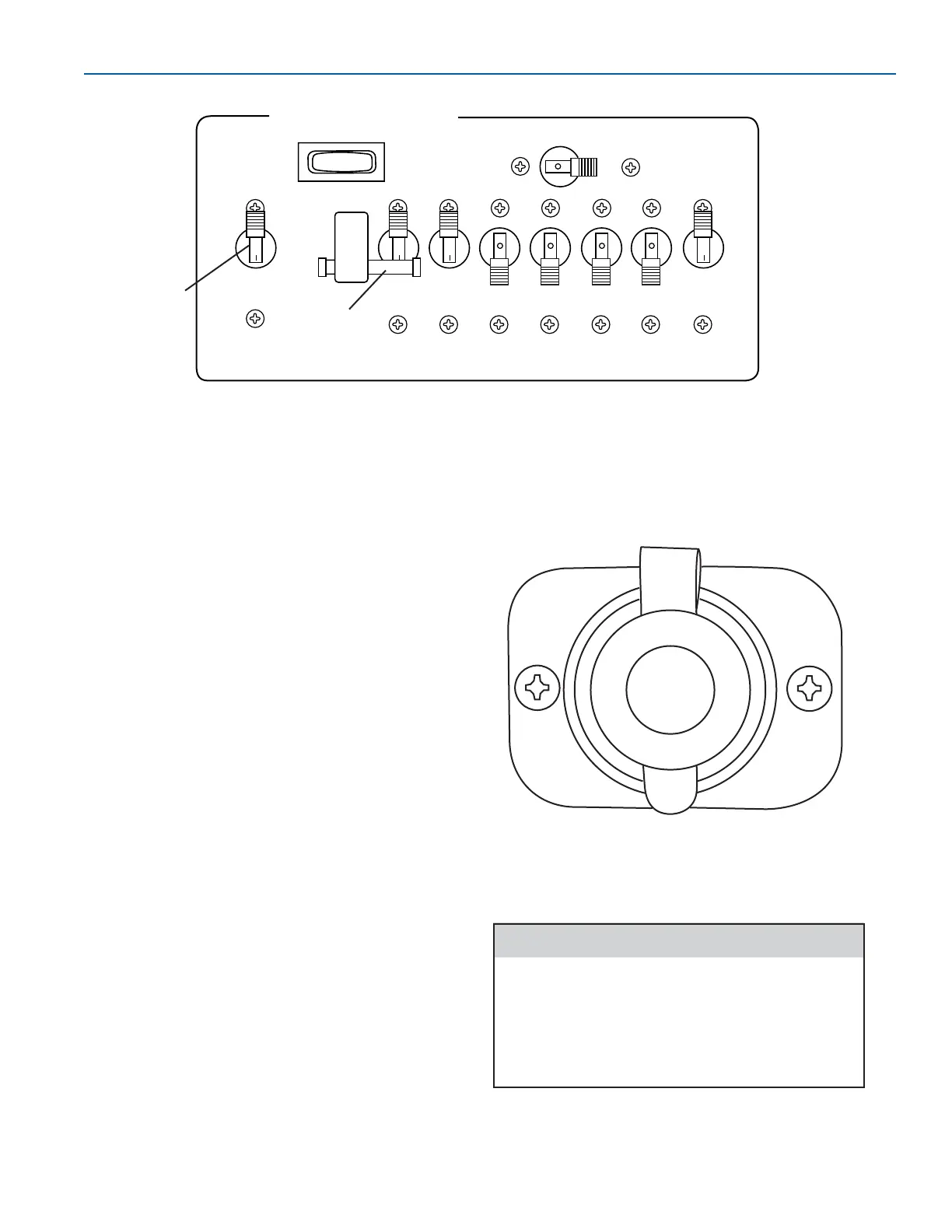

1. DC Main Circuit Breaker
2. CO Detector Circuit Breaker
DC Electrical Panel
Figure 5-1
