CONTROLS AND INDICATORS
FASTECH
CABIN CONTROLS AND
INDICATORS
AC/DC Control Panel—This panel controls the
distribution of the 110-volt alternating current
(VAC) electrical system and the 12-volt direct
current (VDC) electrical system.
Both the AC and DC circuits are controlled by a
switch-type circuit breaker. The circuit breaker
functions in two ways. It allows you to manually
enable or interrupt a circuit by moving the switch
ON or OFF. They protect the system by
automatically opening the circuit if a short or
overloaded condition occurs.
Check the circuit if a particular piece of equipment
stops working. A tripped circuit breaker indicates
the circuit is overloaded. You should determine
and correct the cause of a problem before
resetting a circuit breaker.
Reset the breaker by pressing it back into place.
Contact your Formula dealer if a circuit beaker
keeps tripping.
Refer to Section 5, for operation of the 12-VDC
and 110-VAC electrical systems.
1. AC Control Panel
2. DC Control Panel

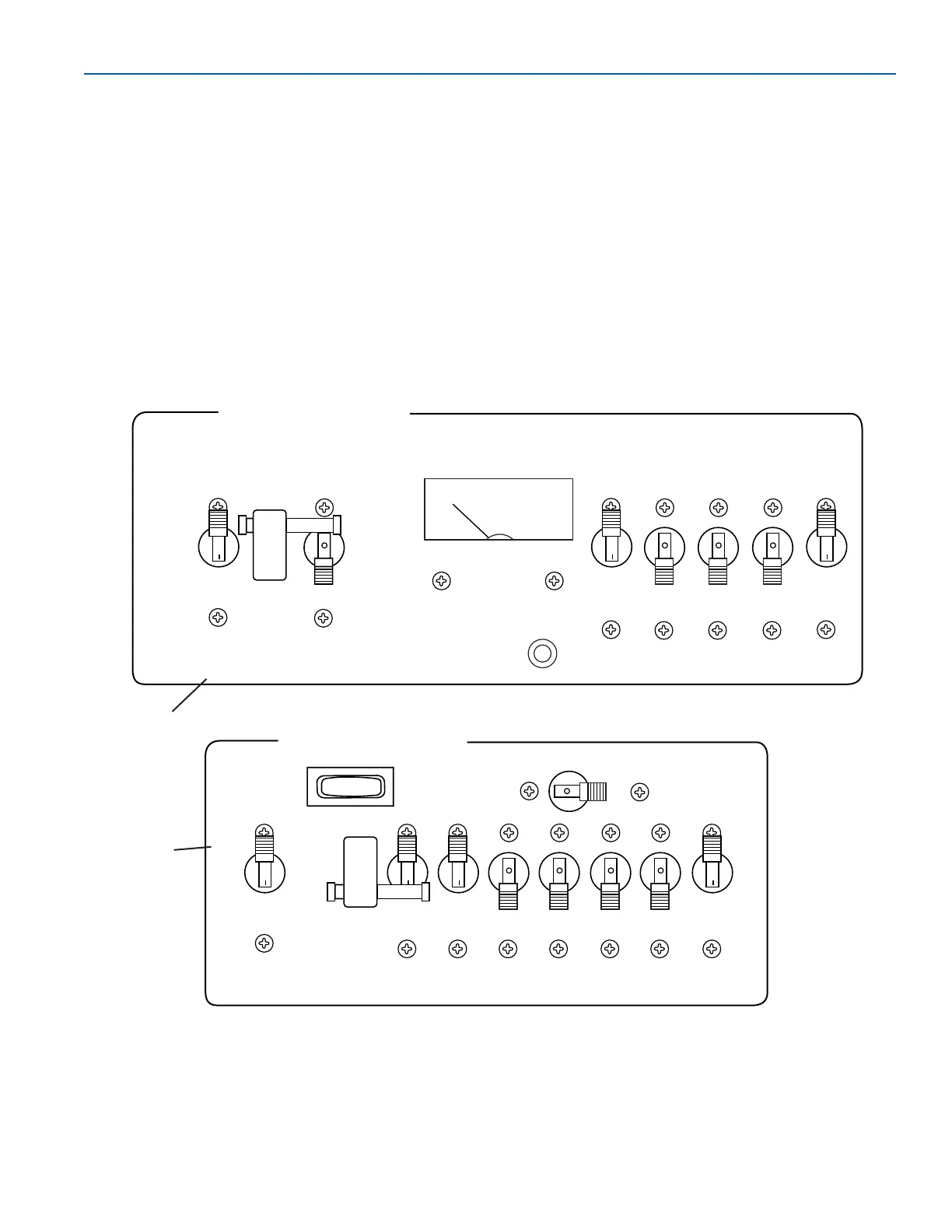

AC/DC Control Panel
Figure 4-27
