CONTROLS AND INDICATORS
FASTECH
Your Formula has additional circuit breaker
panels. For location of these panels, refer to
Specifications, in Section 3, for your specific
model.
STEERING
Your Formula boat is equipped with a tilt steering
wheel. Adjust the tilt position by grasping the top
of the steering wheel and depressing the release
lever with your thumb. Release the lever to lock
the steering wheel when achieving a comfortable
position.
Do not adjust the steering wheel tilt
position while the boat is moving. Sudden
boat movement may cause loss of balance
resulting in loss of control and/or injury.
!
WARNING
1. Release Lever
Tilt Steering Wheel
Figure 4-20
1
FOR059
PORT
IGN
STBD
IGN
PORT
WIPER
STBD
WIPER
BILGE
PUMP
ENGINE
HATCH
12 VOLT
OUTLET
VHF
RADIO
ACC ACC ACC ACC ACC
SPOT
LIGHT
TRIM
TAB
HIGH
WATER
ALARM
GPS
ACCACCLIGHTS WNDLS
FUME
DETCTR
HORN BLOWERS
CABIN
BILGE
PUSH TO RESET – PUSH TO INTERRUPT
AUTO
PILOT
ENGINE
SYNC
DEPTH
SOUNDER
PLOTTER RADAR
PUSH TO RESET – PUSH TO INTERRUPT

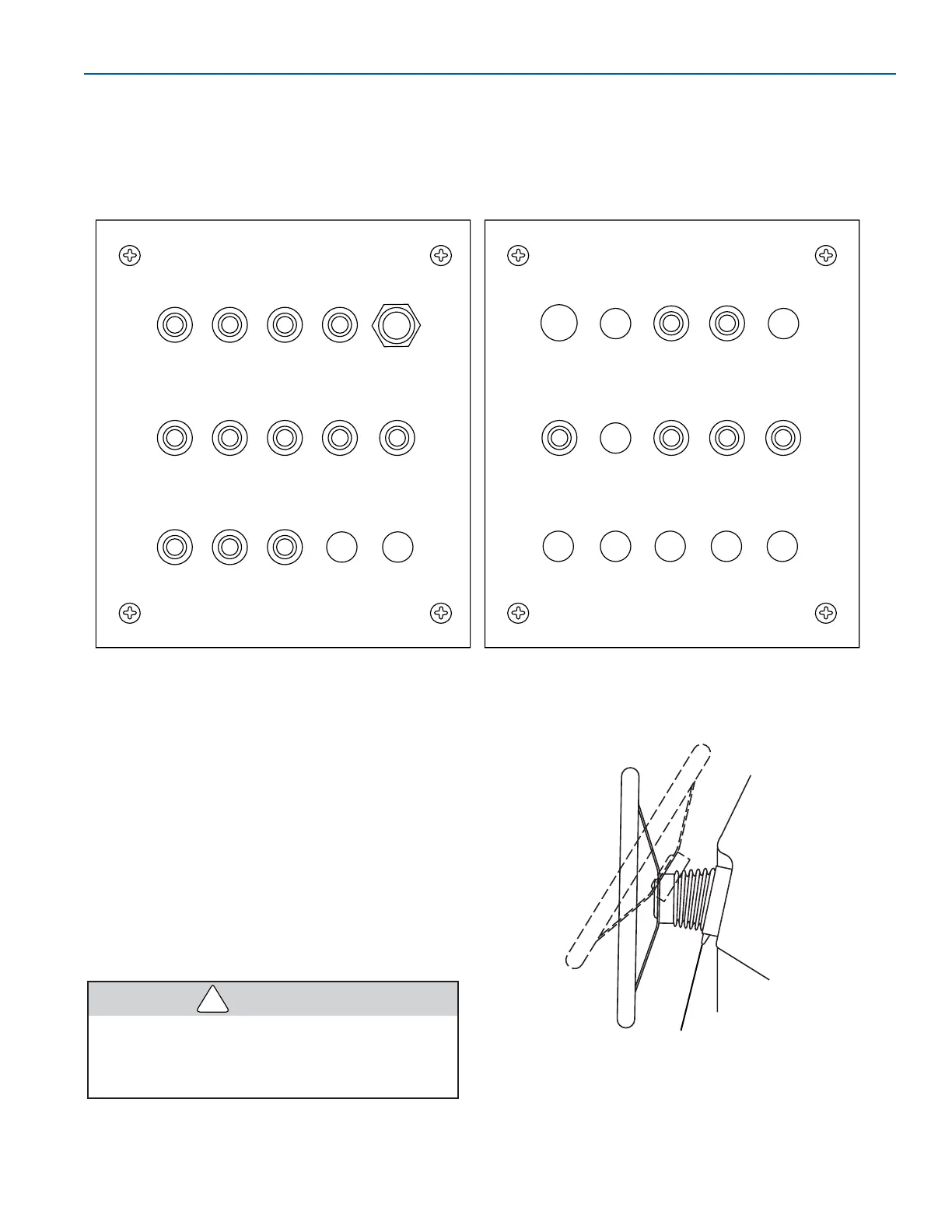

Typical Circuit Breaker Panel
Figure 4-19
FOR011
CIRCUIT BREAKERS
A circuit breaker panel(s) is located at the helm.
Most electrical equipment is controlled with circuit
breakers. These breakers will activate if
overloaded and cut power to the switch. To
restore power, push the button in and release. If a
circuit continuously overloads under normal
operating conditions, have your boat inspected by
your Formula dealer immediately.
