Formula Fastech - SHORE POWER

5-5
FORMULA
SYSTEM OPERATION AND EQUIPMENT
FASTECH
When the shore power cord is plugged in and the
shore power switch is in the ON position, all AC
equipment can be operated.

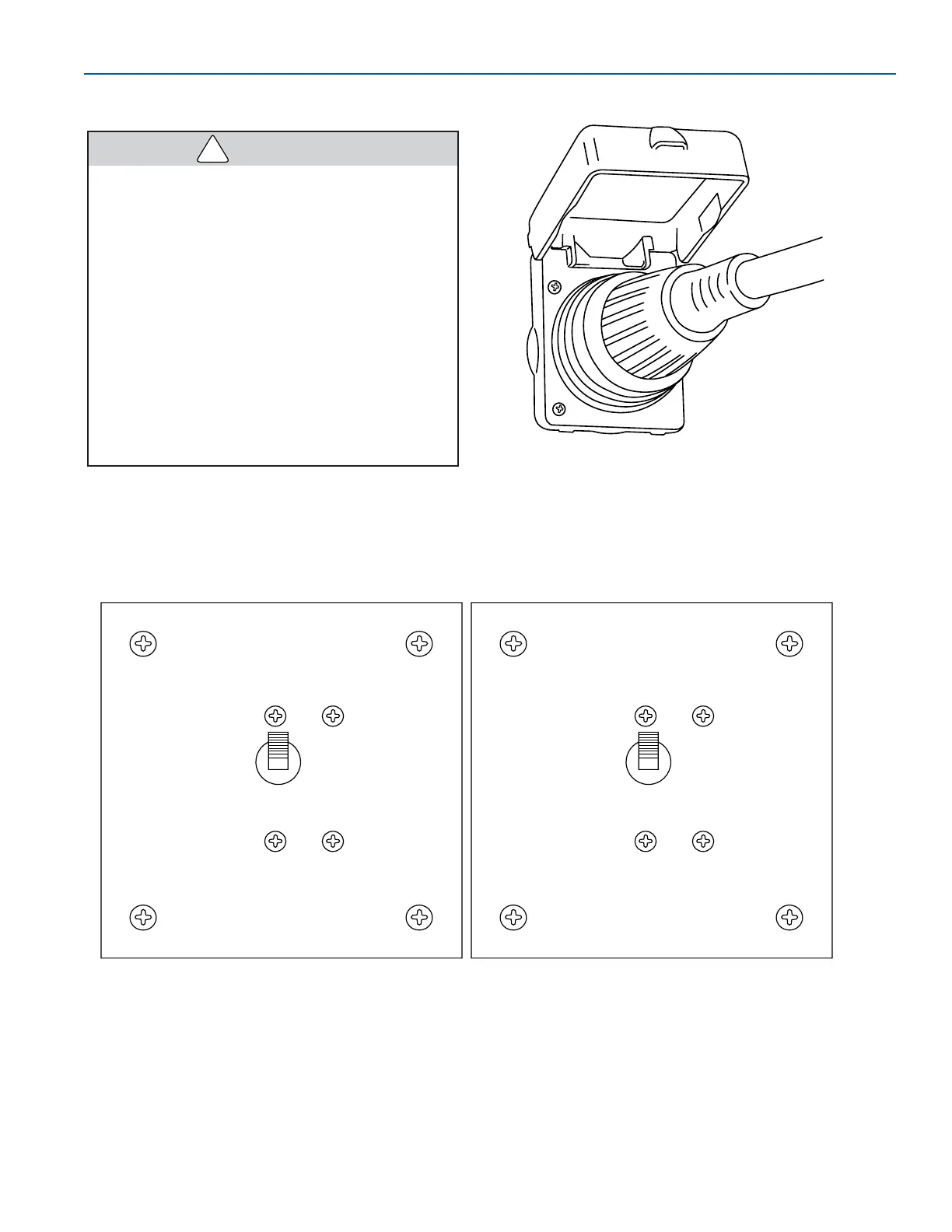

Shore Power Receptacle
Figure 5-4
SHORE POWER
To minimize shock and fire hazards:
●
Turn the AC main circuit breaker OFF
before connecting or disconnecting
shore cable.
●
Connect the shore power cable at the
boat first, then to the dockside
connection.
●
If the reverse polarity light is activated,
immediately disconnect shore power
cable.
●
Disconnect shore power cable at shore
outlet first.
●
Do not alter shore power cable
connections.
!
WARNING
FOR143
FOR142
Shore Power Inlet Breaker
Figure 5-5
SHOREPOWER
MAIN #2
120 VAC
60 HZ
ON
SHOREPOWER
MAIN #1
120 VAC
60 HZ
ON
A shore power inlet breaker protects the AC circuit
from the boat’s shore power connector to the AC
control panel. Refer to Specifications, in Section
3, for shore power inlet breakers' location.
