5-4
FORMULA
FASTECH
FASTECH
The voltmeter monitors the AC voltage. Damage
can occur to your equipment if the voltage is less
than 105 volts. Do not use AC powered
equipment if voltage is less than 105 volts.
The shore power switch is also a 30-amp main
circuit breaker and controls individual component
circuit breakers. This allows you to check for
proper voltage and polarity immediately after
making the shore power cable connection without
damaging any equipment.
FOR141
The reversed polarity light indicates if the polarity
of the shore power has been reversed.
If the reverse polarity light is activated,
immediately disconnect the shore power
cable.
CHARG.
REFRIG. CABIN

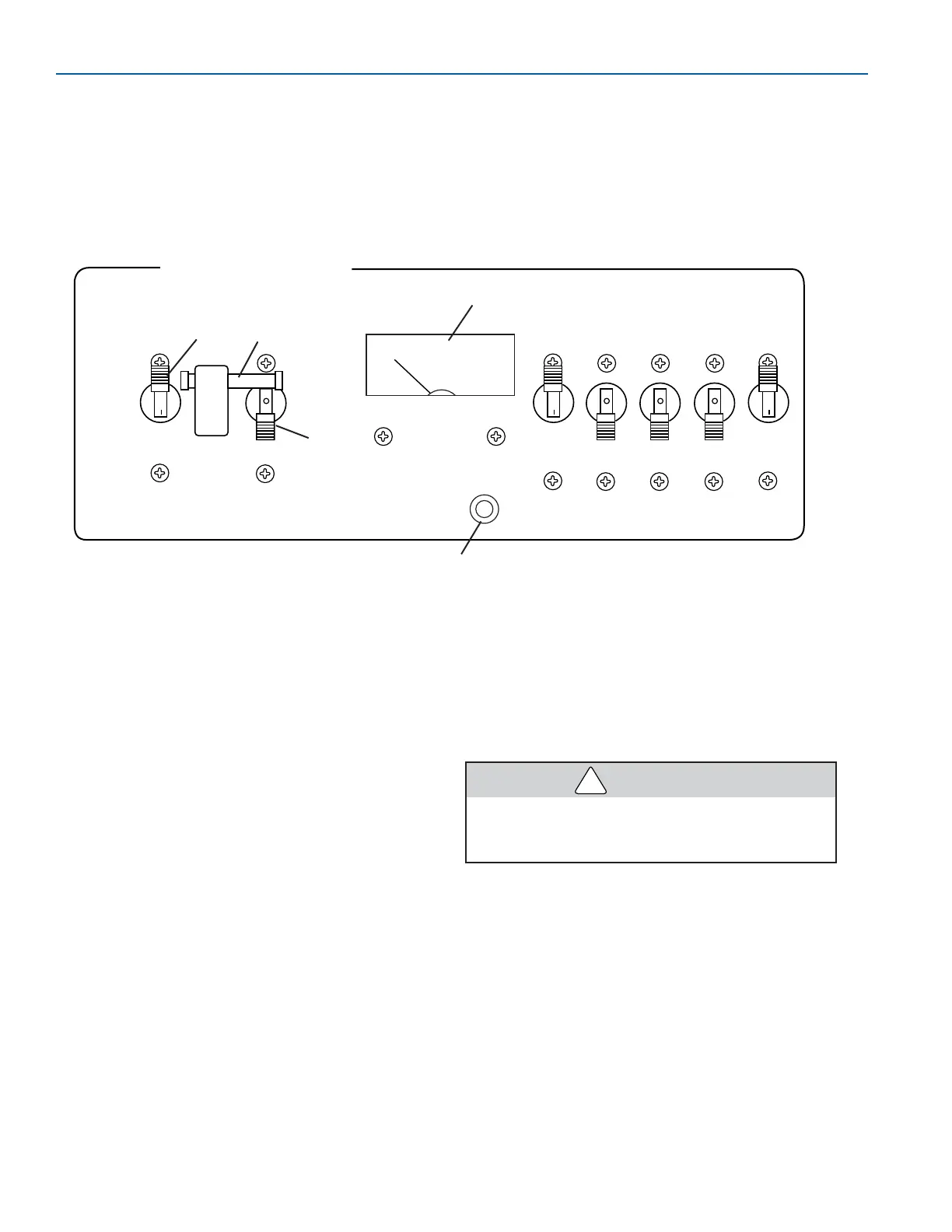

1. Shore Power Switch
2. Lock
3. Generator Power Switch
4. Voltmeter
5. Reverse Polarity Light
If your boat is equipped with shore power, the AC
portion of the control panel receives AC power
from the shore power cable or the generator. The
AC panel distributes power through the shore
power switch or the generator power switch which
in turn supplies electricity to the individual branch
circuit breakers.
AC electricity operates the following equipment:
●
Electrical Outlets
●
Refrigerator
●
Battery Charger
●
Hot Water Heater
●
Air Conditioning
AC Electrical Panel
Figure 5-3
