The ignition safety switches can only be
effective when they are in good working
condition. Observe the following:
●
Do not remove or modify an ignition
safety switch and/or its lanyard.
●
The lanyard must be free from
obstructions that could interfere with its
operation.

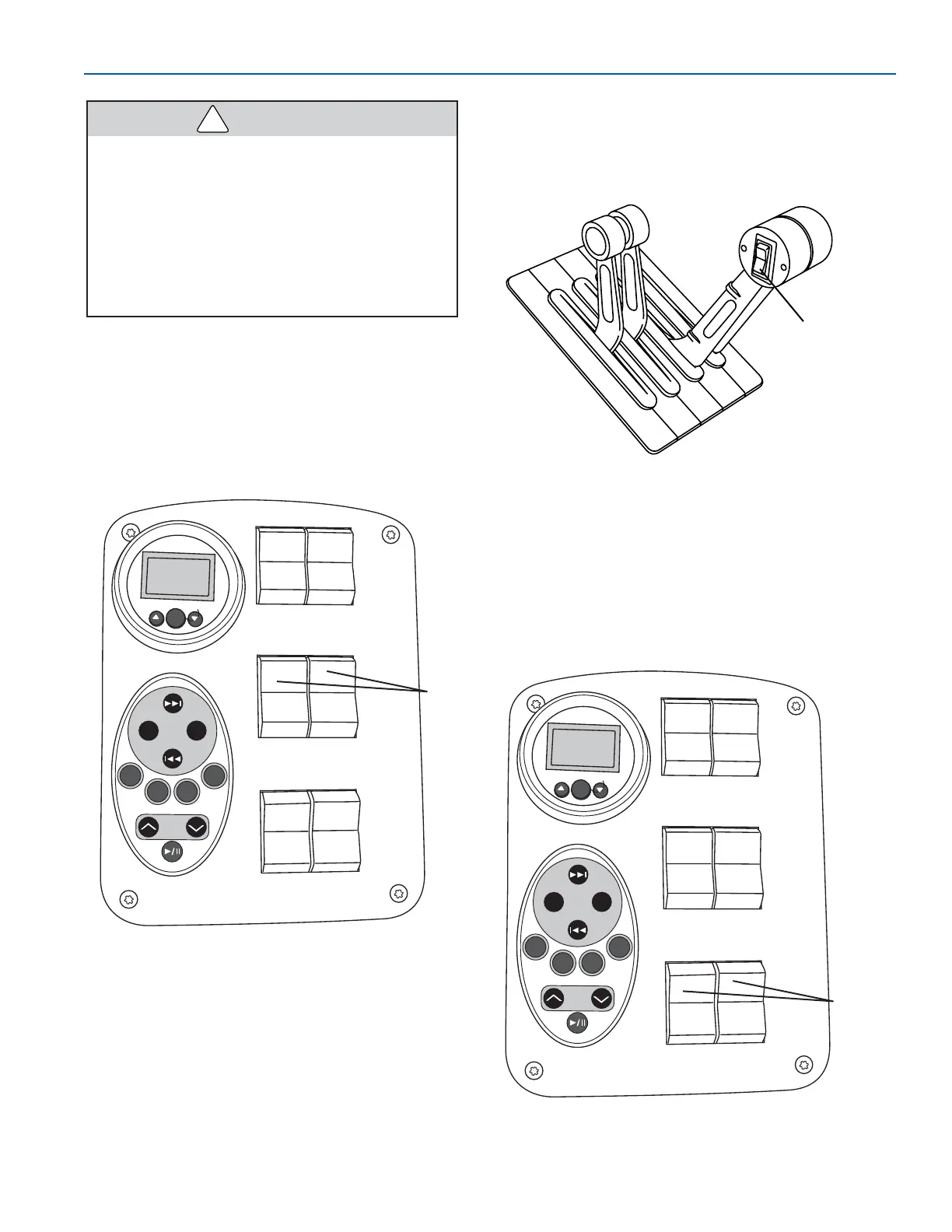

Drive Unit Trim Switch—Labeled “Drives,” these
switches activate the drive units’ power trim
feature. The starboard switch controls the
starboard drive unit’s power trim. Push and hold
the top of the switch to raise the drive unit. Push
and hold the bottom of the switch to lower the
drive unit. Use this switch in combination with the
trim gauge to maximize your boat’s performance.
1. Trim Switches
Typical Trim Switches
Figure 4-15
SET
DEPTH
D
R
I
V
E
S
D
R
I
V
E
S
OUT
DOWN
FM AM
IN
OUT
T
R
A
I
L
E
R
TAPE
TUN
CD
CD
CH
OFF
UP
1
!
WARNING
On some remote controls, a combination port and
starboard drive unit trim switch is located in the
throttle handle of the remote control. Push and
hold the switch until both drive units are at the
desired angle.
1. Trim Switch
All FASTech models have separate switches that
activate the tilt feature. These switches are
labeled “Trailer.” The port switch activates the port
drive unit’s power tilt. The starboard switch
activates the starboard drive unit’s power tilt. Push
the top of the switch to raise the drive unit.
1. Typical Trailer Switches
Typical Trailer Switches
Figure 4-17
SET
DEPTH
D
R
I
V
E
S
D
R
I
V
E
S
OUT
DOWN
FM AM
IN
OUT
T
R
A
I
L
E
R
TAPE
TUN
CD
CD
CH
OFF
UP
1
Remote Control Trim Switch
Figure 4-16
1
