WARNING!
Disconnect primary power at the source and wait that the torch has cooled before disassembling the torch
or torch leads. Frequently review the Important Safety Precautions at the front of this Manual.
Be sure the operator is equipped with proper gloves, clothing, eye and ear protection. Make sure no part of
the operator’s body comes into contact with the work piece while the torch is activated.
CAUTION
Sparks from the cutting process can cause damage to coated, painted, and other surfaces such as glass,
plastic and metal.
NOTE Handle torch leads with care and protect them from damage.

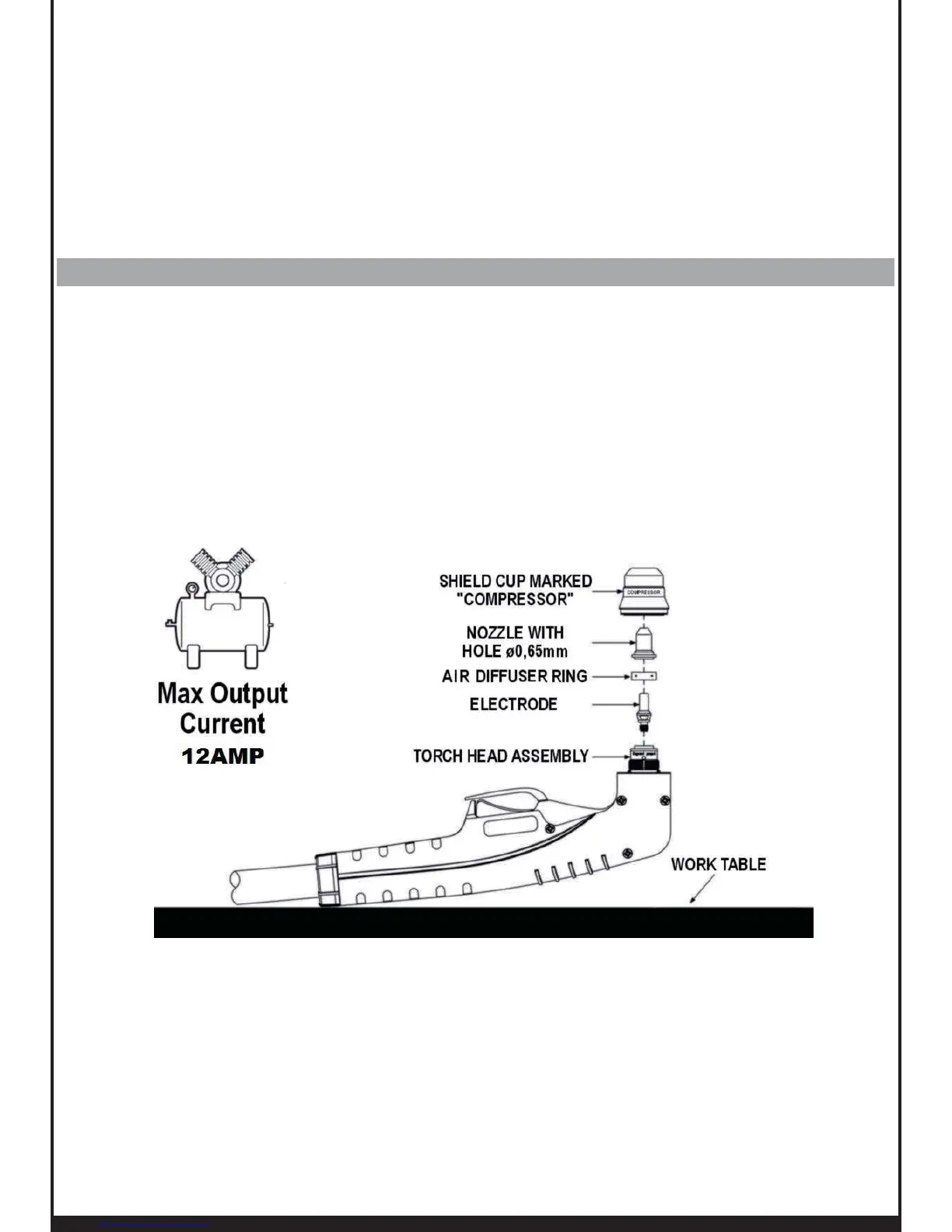

TORCH CONSUMABLE PARTS SELECTION
WARNING!: Use torches specified in the this instructions manual.
WARNING!: Disconnect power source before disassembly of the torch.
AVERTISSEMENT: couper l’alimentation avant de désassembler la torche.
WARNING!: It is extremely important that you read carefully these instructions before choosing
the consumables for your torch. This will prevent damages to the torch and the plasma unit.
To change the torch consumable parts use the following procedure:
1. Position the torch with the shield cup facing upward to prevent these parts from falling out when the
cup is removed.
WARNING: Wait the torch has suffi ciently cooled before replacing torch parts.
2. Unscrew and remove the shield cup from the Torch Head Assembly.
3. Remove the tip, gas distributor, and electrode.
4. Install the electrode, gas distributor, and tip.
5. Hand tighten the shield cup until it is seated on the torch head. If resistance is felt when installing the
cup, check the threads before proceeding.
