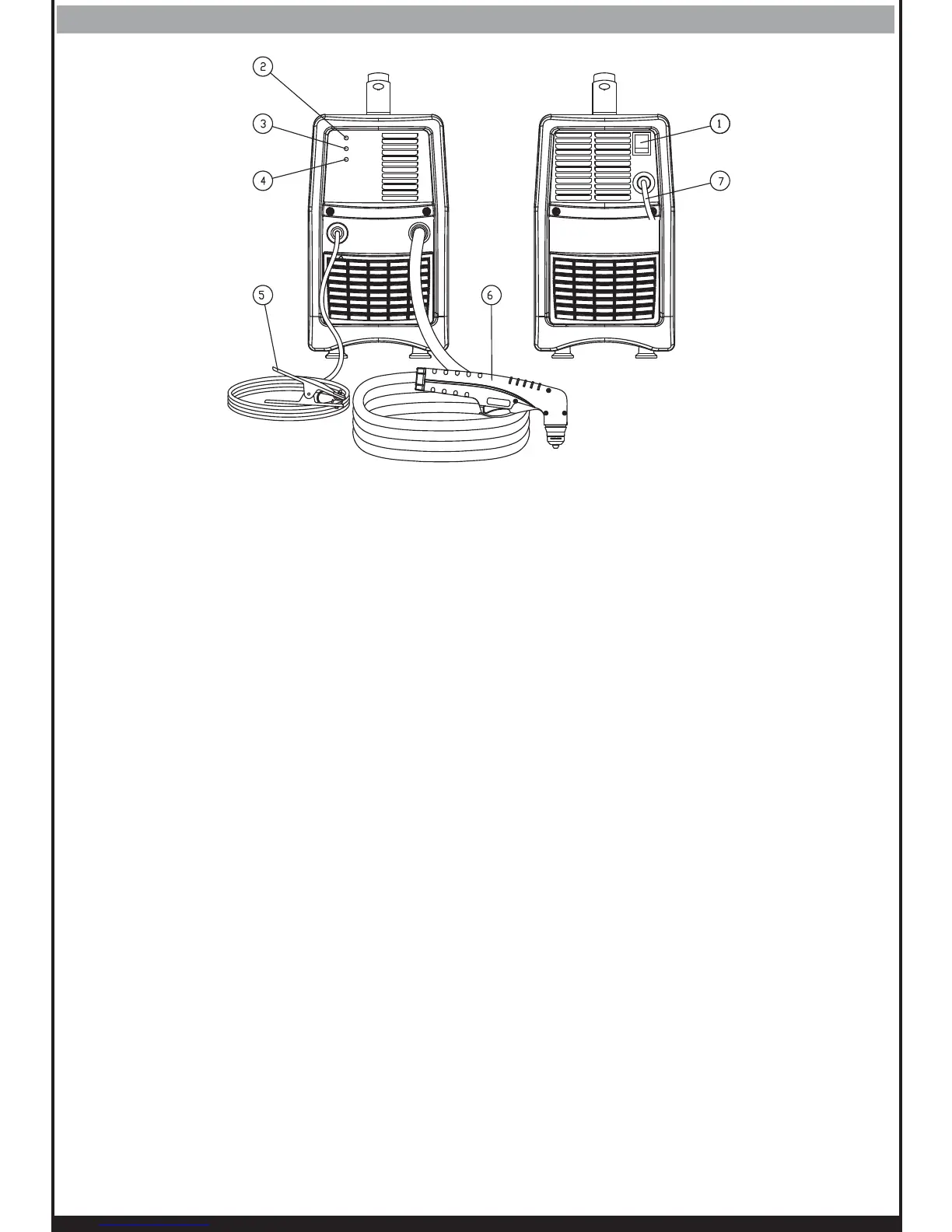

1. ON/OFF Switch – In the ON position the machine is ready for normal operation. All system
control circuits are activated. OFF position deactivates control circuits.
2. Green LED– It blinks for a few seconds to show that capacitors are being charged and that
the unit is getting ready for operation. It turns ON when input voltage is applied within
normal range – blinks slowly when input voltage goes above 135Vac, or below 85Vac.
3. Yellow LED– Turns ON when the thermal protection is activated.
4. Red LED–Turns ON when torch is triggered. Blinks quickly during 3 second safety pre-flow
prior to pilot arc ignition. Blinks slowly if cutting arcs not initiated after 3 second pilot arc
ignition.
5. Work cable with clamp
6. Torch
7. Input power cable
