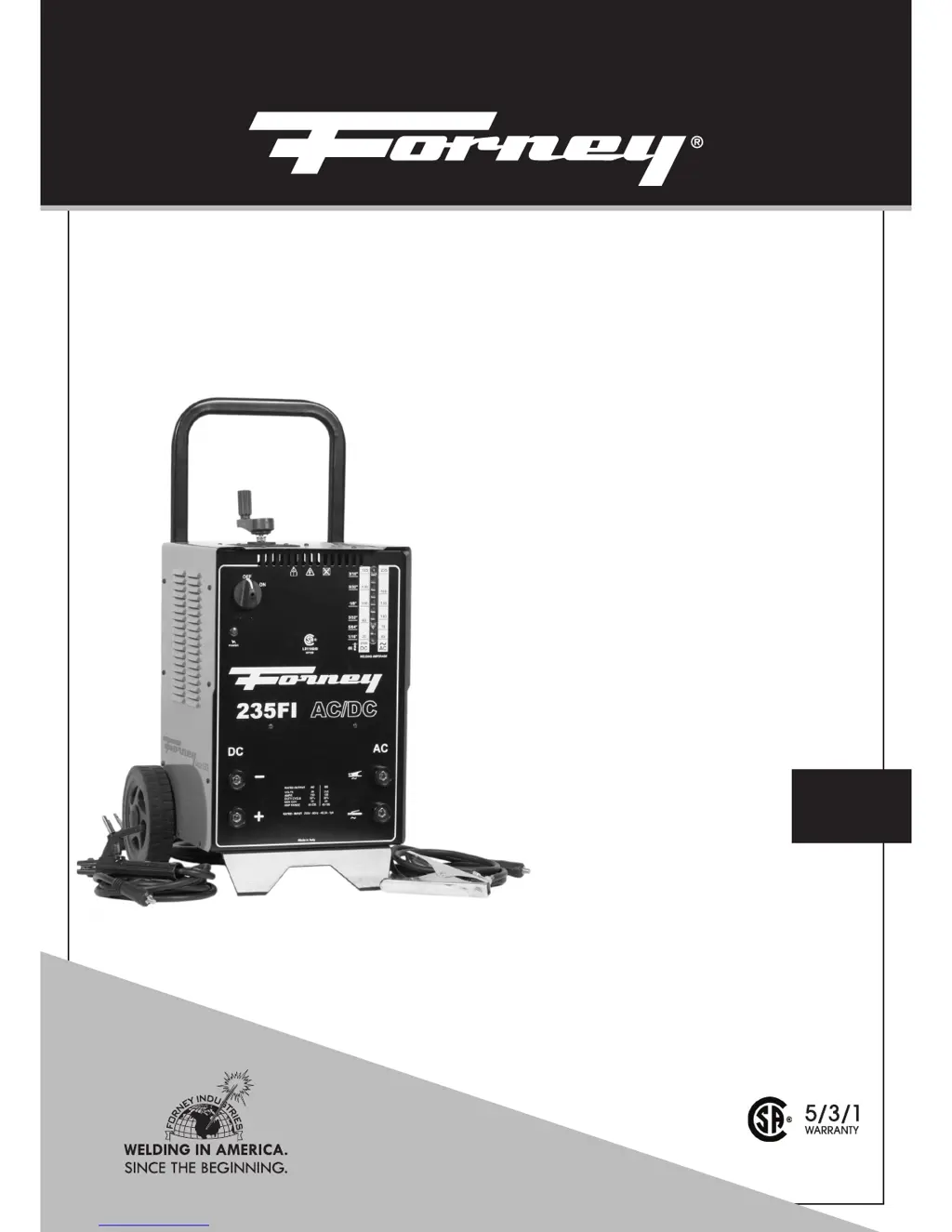

235 AC/DC ARC WELDER
OPERATING MANUAL
FEATURES:
• Dinse style connectors allow for easy cable
replacement and polarity change
• Power cable, ground cable, and electrode holder
are all 15’ providing a large working envelope
• Welds up to 1/2” AC / 3/8” DC metal
SPECIFICATIONS:
• Power: 235 Amp AC @ 20% Duty Cycle
• Weight: 116 Lbs. (52.63 Kg)
• Max. OCV: 72 VAC / 63 VDC
• Main Voltage: 230V (60Hz)/48.5A
• Duty Cycle: 150A @ 50% AC / 135A @ 35% DC
• Output Range: 45A - 235A AC / 45A - 185A DC
IDEAL FOR:
Maintenance and Sheet Metal Fabrication, Agriculture,
Automotive, Contractors, Repair, Hobbist, and More...
INCLUDES:
Input power cable, Ground cable and clamp, Electrode
holder and cable
*Wheel and handle kit purchased separately (CAT #329)
CAT# 314
ENGLISH
REV 10.27.15
