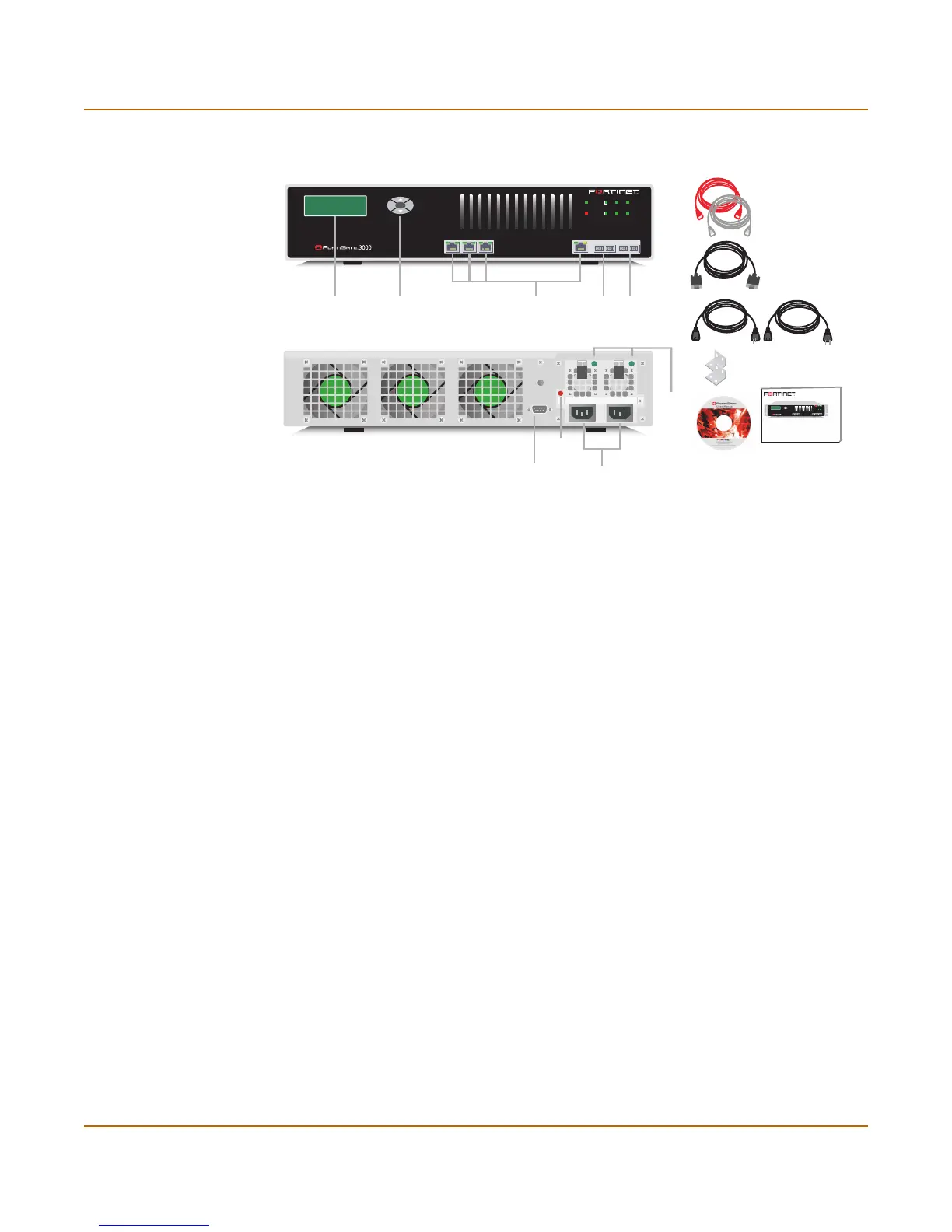

Figure 2: FortiGate-3000 package contents
Mounting
The FortiGate-3000 unit can be mounted in a standard 19-inch rack. It requires 2 U of
vertical space in the rack.
The FortiGate-3000 unit can also be installed as a free-standing appliance on any
stable surface.
Dimensions
• 16.75 x 13.5 x 3.5 in. (42.7 x 33 x 8.9 cm)
Weight
• 17.5 lb. (8 kg)
Power requirements
• Power dissipation: 360 W (max)
• AC input voltage: 100 to 240 VAC
• AC input current: 6 A
• Frequency: 50 to 60 Hz
• The FortiGate-3000 unit may overload your supply circuit and impact your
overcurrent protection and supply wiring. Use appropriate equipment nameplate
ratings to address this concern.
• Make sure that the FortiGate-3000 unit has reliable earthing. Fortinet recommends
direct connections to the branch circuit.
1, 2, 3, 4/HA
Interface
External
Interface
Internal
Interface
Front
Back
Power
Supply
LEDs
Power
Connections
Power Cables (2)
Rack-Mount Brackets
Null-Modem Cable
(RS-232)
Documentation
Ethernet Cables:
Orange - Crossover
Grey - Straight-through
USER MANUAL
FortiGate-3000
QuickStart Guide
Copyright 2003 Fortinet Incorporated. All rights reserved.
Trademarks
Products mentioned in this document are trademarks.
POWER
Hi-Temp
12
3
INT
EXT
4/HA
Esc Enter
LCD
Display
Control
Buttons
123 4/HA INTERNAL EXTERNAL
RS-232 Serial
Connection
Alarm
Cancel
Button
POWER
Hi-Temp
12
3
INT
EXT
4/HA
Esc Enter
123 4/HA INTERNAL EXTERNAL
