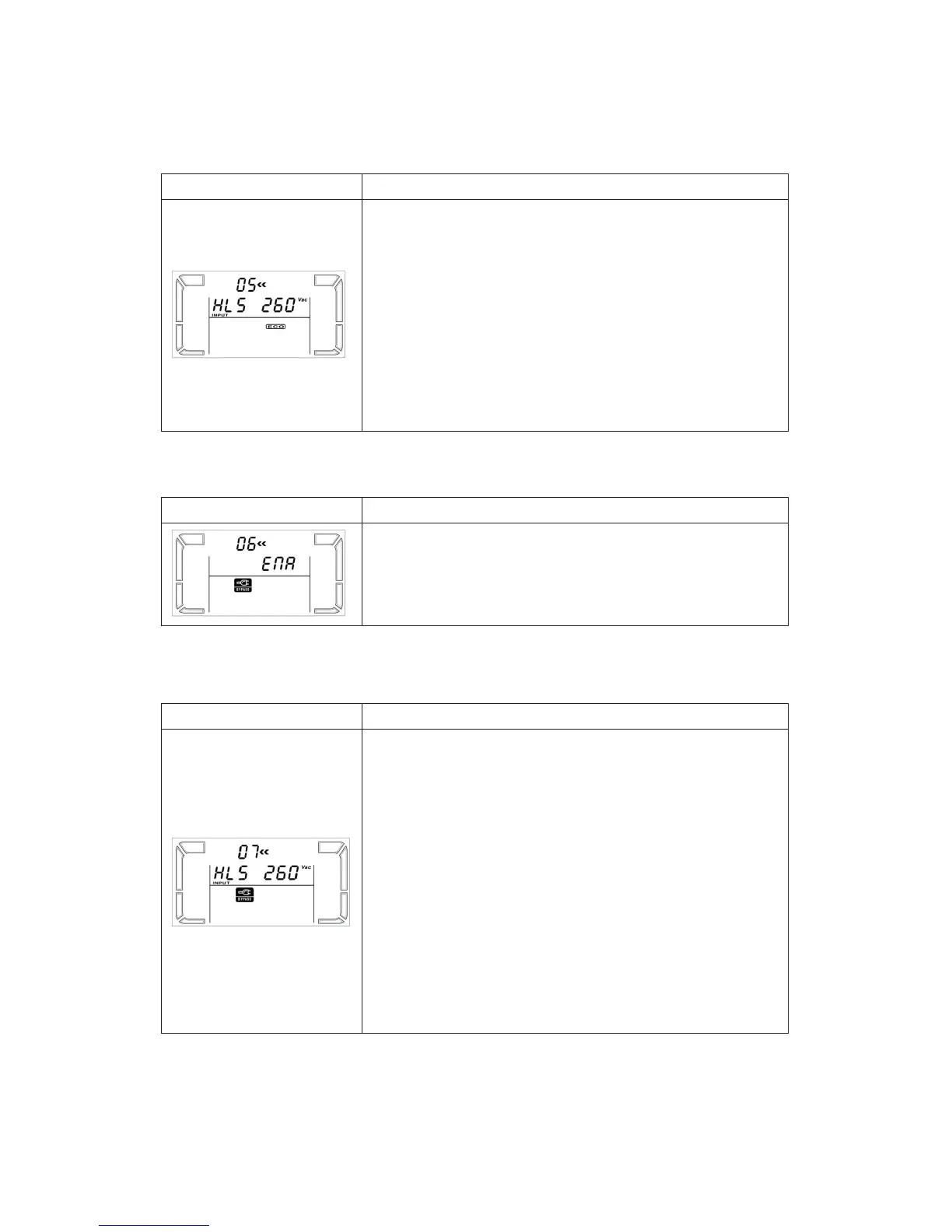

05: ECO voltage range settings
06: Bypass enable/disable when UPS is off
07: Bypass voltage range setting
Interface Setting
Parameter 2 & 3: Press the UP or Down key to choose the
acceptable high and low voltage values for the ECO mode.
HLS: High line transfer in ECO mode as set in parameter 2.
For 200/208/220/230/240 VAC, the setting in parameter
3 ranges between +7V and +24V of the nominal voltage.
For 100/110/115/120/127 VAC, the setting in parameter 3
ranges between+3V and +12V of the nominal voltage.
LLS: Low line transfer in ECO mode as set in parameter 2.
For 200/208/220/230/240 VAC, the setting in parameter
3 ranges between-7V and -24V of the nominal voltage.
For 100/110/115/120/127 VAC, the setting in parameter
3 ranges from -3V to -12V of the nominal voltage.
Interface Setting
Parameter 3: Use it to activate or cancel the Bypass mode.
ENA: Bypass enabled
DIS: Bypass disabled
Interface Setting
Parameter 2 & 3: Press the UP or Down key to choose the
acceptable high and low voltage values for Bypass operation
HLS: High voltage adjustment in bypass mode
For 200/208/220/230/240 VAC:
230-264: High voltage setting from 230VAC to 264VAC
as set in parameter 3.
For 100/110/115/120/127 VAC:
120-132: High voltage setting from 120VAC to 132VAC
as set in parameter 3.
LLS: Low voltage adjustment in bypass mode
For 200/208/220/230/240 VAC:
170-220: Low voltage setting from 170VAC to 220VAC
as set in parameter 3.
For 100/110/115/120/127 VAC:
85-115: Low voltage setting from 85VAC to 115VAC
as set in parameter 3
