Figure 3.45

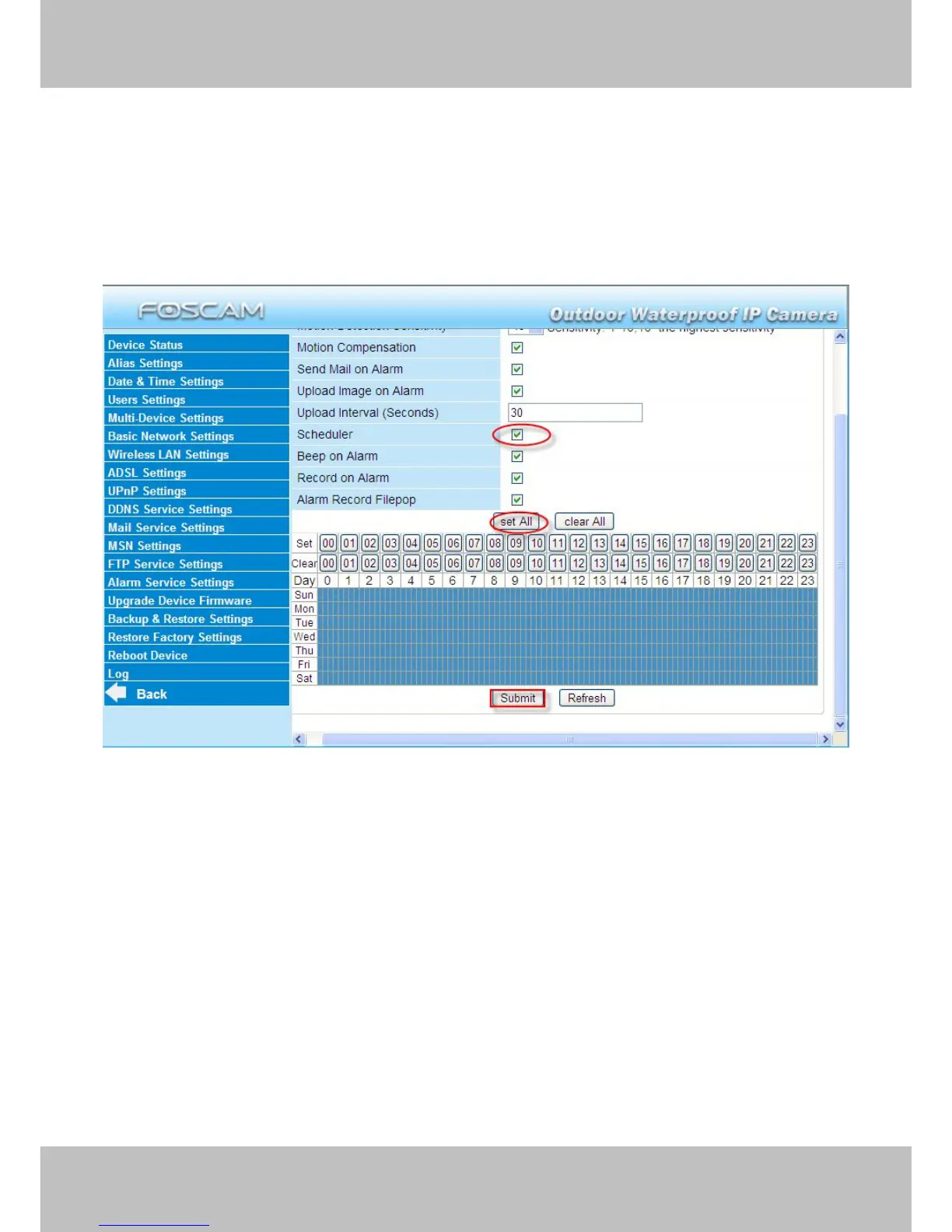

Another Way: select Scheduler, and click “set All”, you will see all time boxes turn blue as in the
following picture. Click Submit and the camera will alarm at any time when motion is detected.
Figure 3.46
If you want the camera to alarm during set times select Scheduler and set time range.
If you want to select one serial area, you can click any number between 00 and 23 on the first
row, the corresponding column will be selected and it will turn blue. For example, click the
number “06” on the first row, you can see the column turn blue. That means the camera will
alarm when motion is detected between 6 and 7 o’clock every day. Click the number“06” on the
second row, you can cancel the corresponding column you set. And it will turn grey.
