With the ceiling panel secured in place seal the internal joints with silicone sealer.
Insert the bu ons into the lock holes.

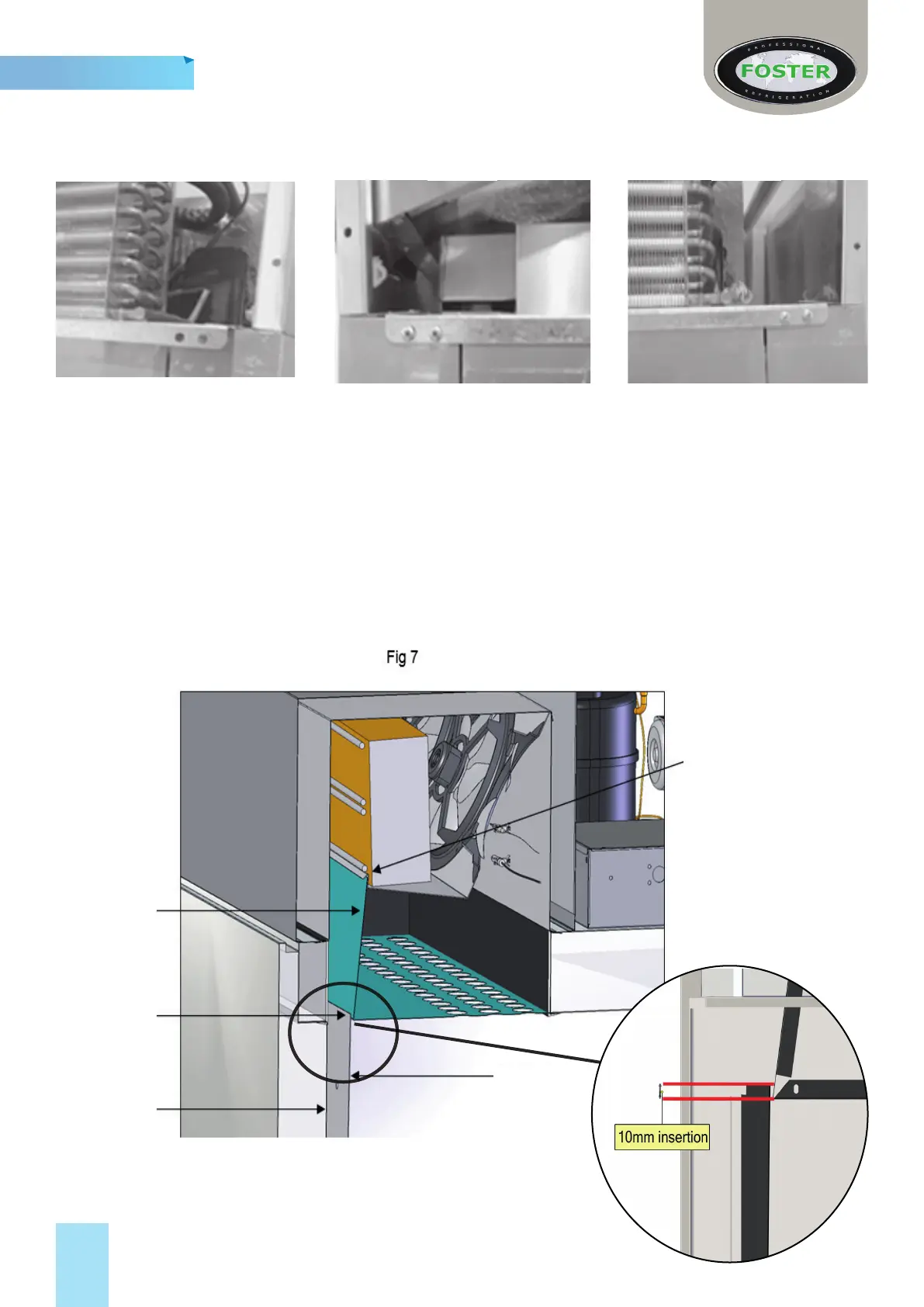

Fi ng The Rear Air Duct
1) Prior to fi  ng the rear air duct check that the Air Return Duct is correctly located into the Coil
Driptray Flange, see fi g 7.
2) Place the air duct against the rear of the cabinet and insert into the space between the air return
duct and the rear of the cabinet to a depth of 10mm, see fi g 7, secure in place using the self tapping screws
provided.
Insert airduct
10mm into
aperture
Coil driptray
fl ange
Air Return
Duct
Rear of
Cabinet
Air Duct
