Display

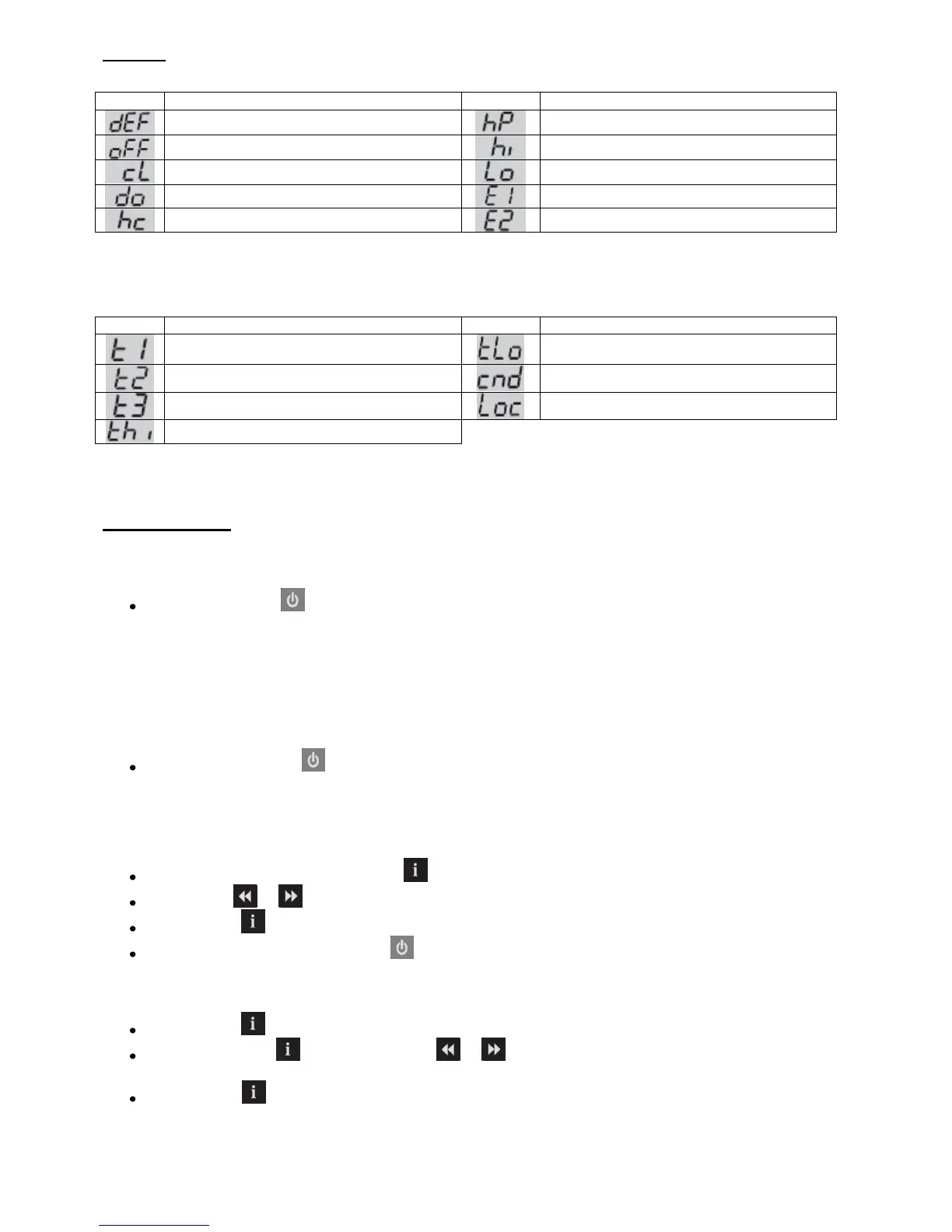

During normal operation the display shows either the temperature measured or one of the following indicators:
Information Menu
The information available in the menu is shown below:
* Displayed only if enabled (see configuration parameters)
** Displayed only if ACC > 0
User Functions
Start Sequence
For normal operation
Press and hold the button for 3 seconds then release.
If pressed and held for 5 seconds then released this will start the „Test Sequence‟.
The test function is a defined sequence of events that will follow a prescribed pattern (dependent upon
parameter values). In turn it will operate all electrical elements of the system, simulating a short operating
pattern. This was designed to provide a quick and simple evaluation tool to use either during manufacturing or
when servicing.
To cancel the Test Sequence
Press and release the button during the test sequence.
If not pressed the test will continue and when complete the controller will wait for 1 min, then resume normal
operation. (The controller will count to 530 then show „end‟. It will then show the current unit temperature)
Access to the menu and information displayed
Press and immediately release button
With button or select the data to be displayed
Press button to display the value
To exit from the menu, press button or wait for 10 seconds.
Set point: Display and modification
Press button for at least half a second to display the set point.
By keeping button pressed, use button or to set the desired value (adjustment is within the
minimum SPL and the maximum SPH limit)
When button is released, the new value is stored.
